X5 FastMig
Operating manual - EN

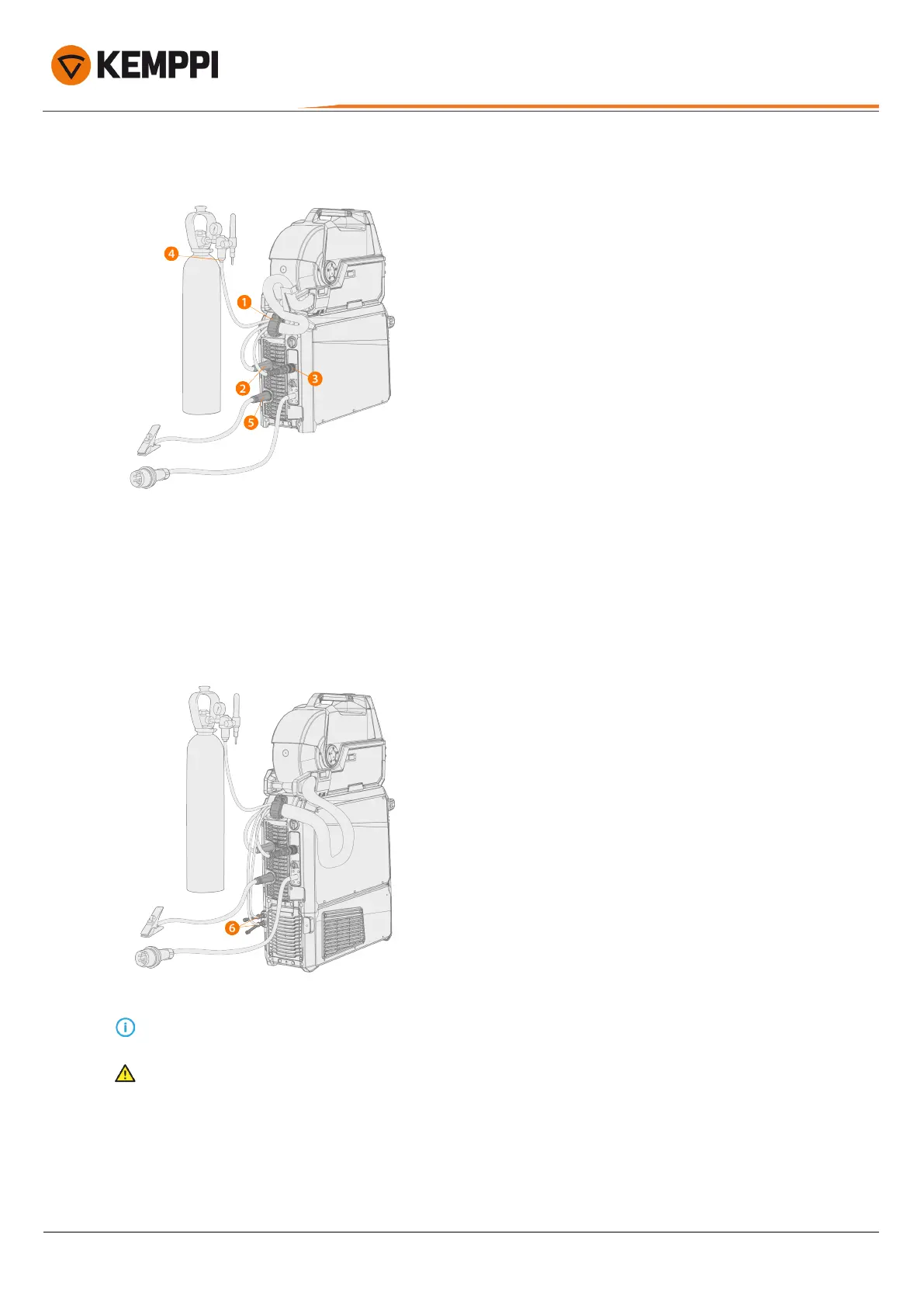

Connecting interconnection cable and earth return cable to power source
1. Attach the cable's strain relief (1) to the rear fixing plate.
2. Connect the welding current cable to the plus (+) connector (2) on the power source.
3. Connect the control cable (3) to the power source.
4. Connect the shielding gas hose (4) to the gas bottle.
5. Connect the earth return cable to the minus (-) connector (5) on the power source.
6. If you have the optional cooling unit, connect the cooling liquid hoses (6). The hoses are color-coded.
For double wire feeder installation, use the interconnection cable designed for two wire feeders.
Ensure that you have connected and tightened all the cables properly.
Strain relief replacement
Removing and replacing the strain relief at the power source end of the interconnection cable:
© Kemppi
43
1920960 / 2144
