Overview
The RF paths involved in a simple port setup (output on RF 1/2/3, input on RF
6) are illustrated in Figure 1-6.

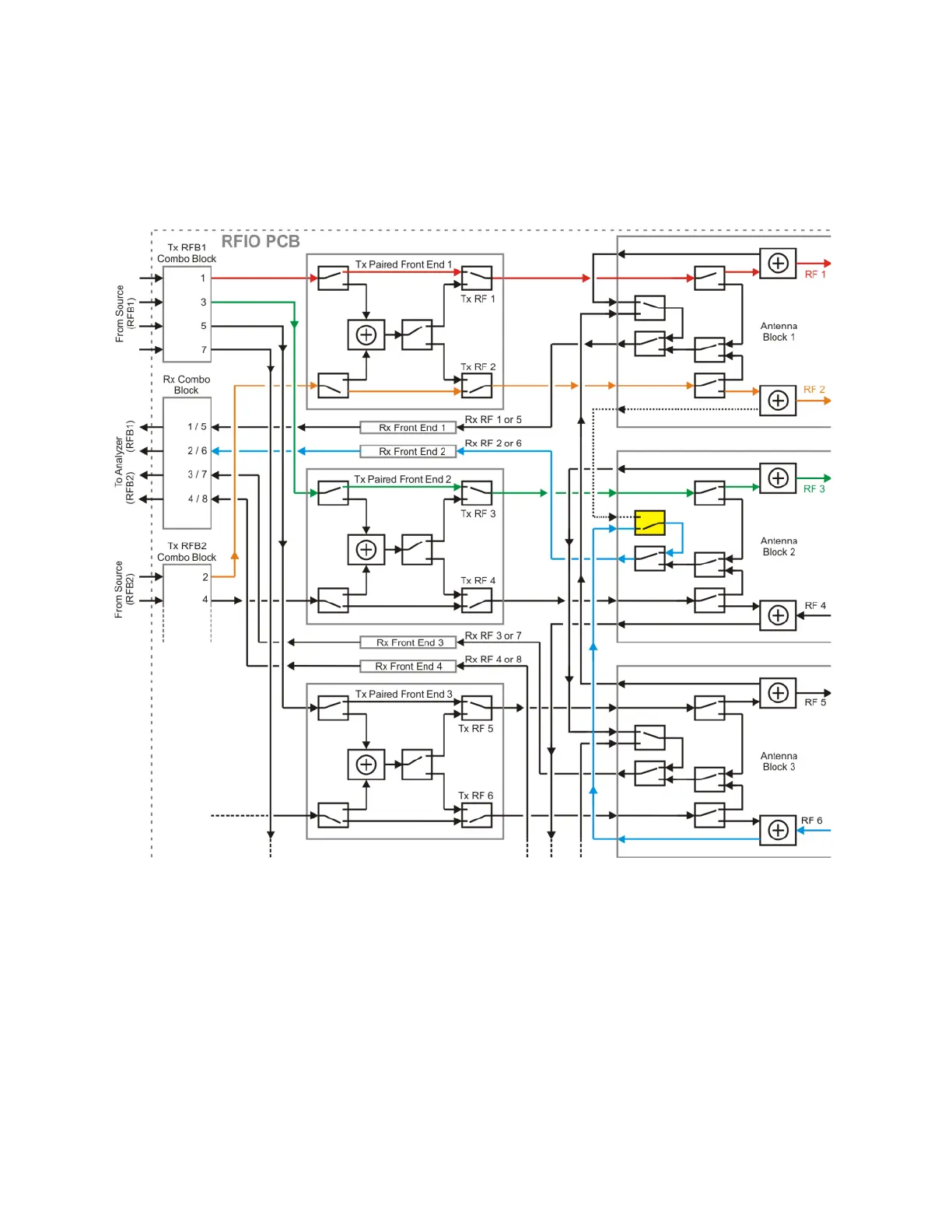

Figure 1-6 RF path example: RF 1 (Tx), RF 2 (Tx), RF 3 (Tx) and RF 6 (Rx)
