Self–Tests 26xx: A8 Output Self–Test Errors

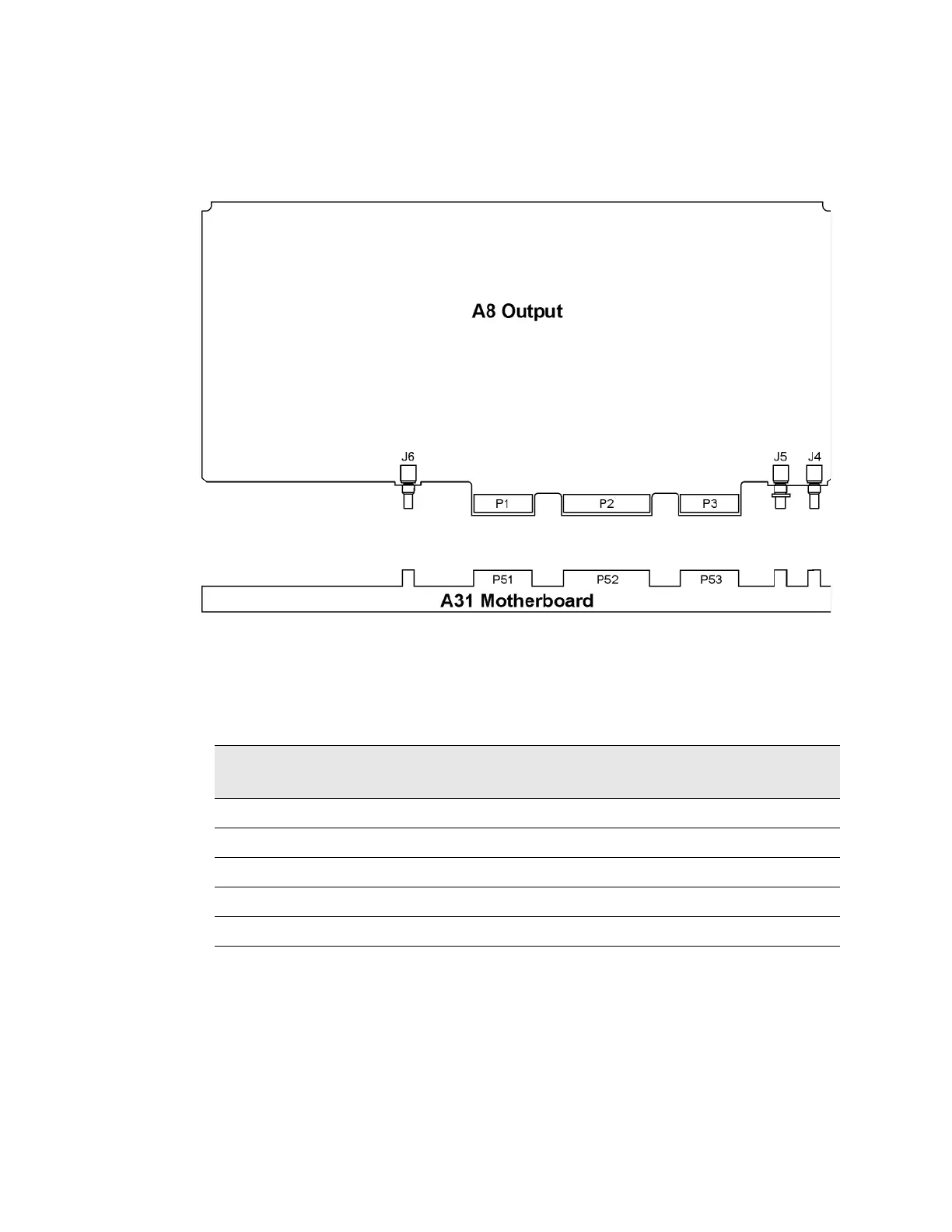

Before proceeding to the reported self–test error code, check the following
voltages. If any voltages are out of specification troubleshoot the supply
problem first.
2600 Power Supply Test
—Replace A8 Output.
Supply Voltage
(Vdc)
Connector Pins Minimum Value
(Vdc)
Maximum Value
(Vdc)
Origin
+15 P52–6, 21 +14.55 +15.45 Main Supply
–15 P52–2, 17 –15.45 –14.55 Main Supply
+5.2 P52–14, 29 +5.04 +5.36 Main Supply
+9 P52–5, 20 +8.82 +9.18 YIG Driver
–6 P52–3, 18 –6.12 –5.88 YIG Driver
