Self–Tests 7xx: A6 Frac–N Self–Test Errors
Before proceeding to the reported self–test error code, check the following
voltages. If any voltages are out of specification, troubleshoot the supply
problem first.
700 Ref Voltage
— Replace the A6 Frac–N.
701 Loop Gain
— Replace the A6 Frac–N.

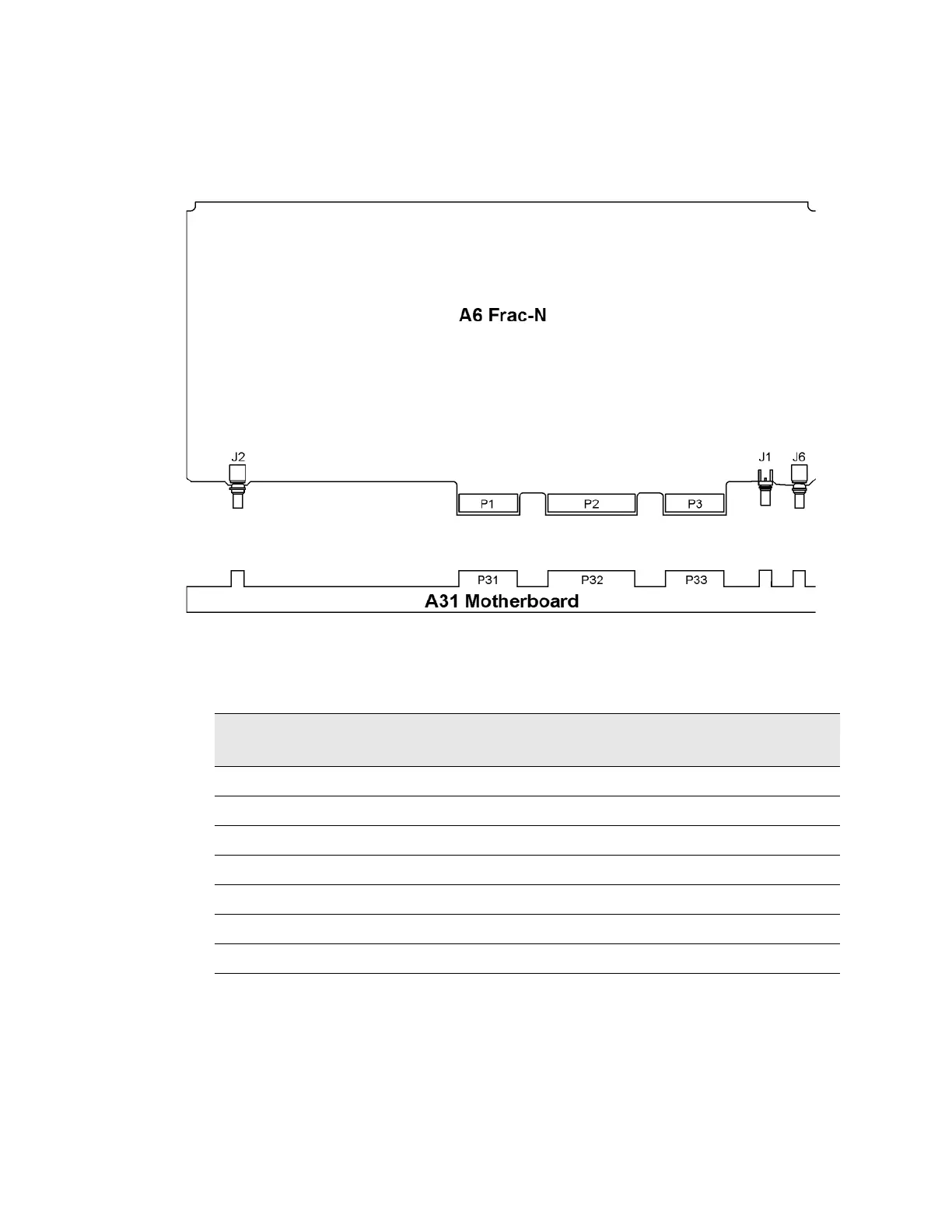

Supply Voltage
(Vdc)
Connector Pins Minimum Value
(Vdc)
Maximum Value
(Vdc)
Origin
+32 P32–7 +31.04 +32.96 Main Supply
+15 P32–6, 21 +14.55 +15.45 Main Supply
–15 P32–2, 17 –14.55 –15.45 Main Supply
+5.2 P32–14, 29 +5.04 +5.37 Main Supply
+9 P32–5, 20 +8.82 +9.18 YIG Driver
–5.2 P32–4,19 –5.1 –5.3 YIG Driver
–6 P32–3, 18 –5.88 –6.12 YIG Driver
