234 E8257D/67D, E8663D PSG Signal Generators Service Guide

Replaceable Parts

Hardware

Disassembled A24 50GHz Highband Coupler and A25B Highband

Detector Bias Board

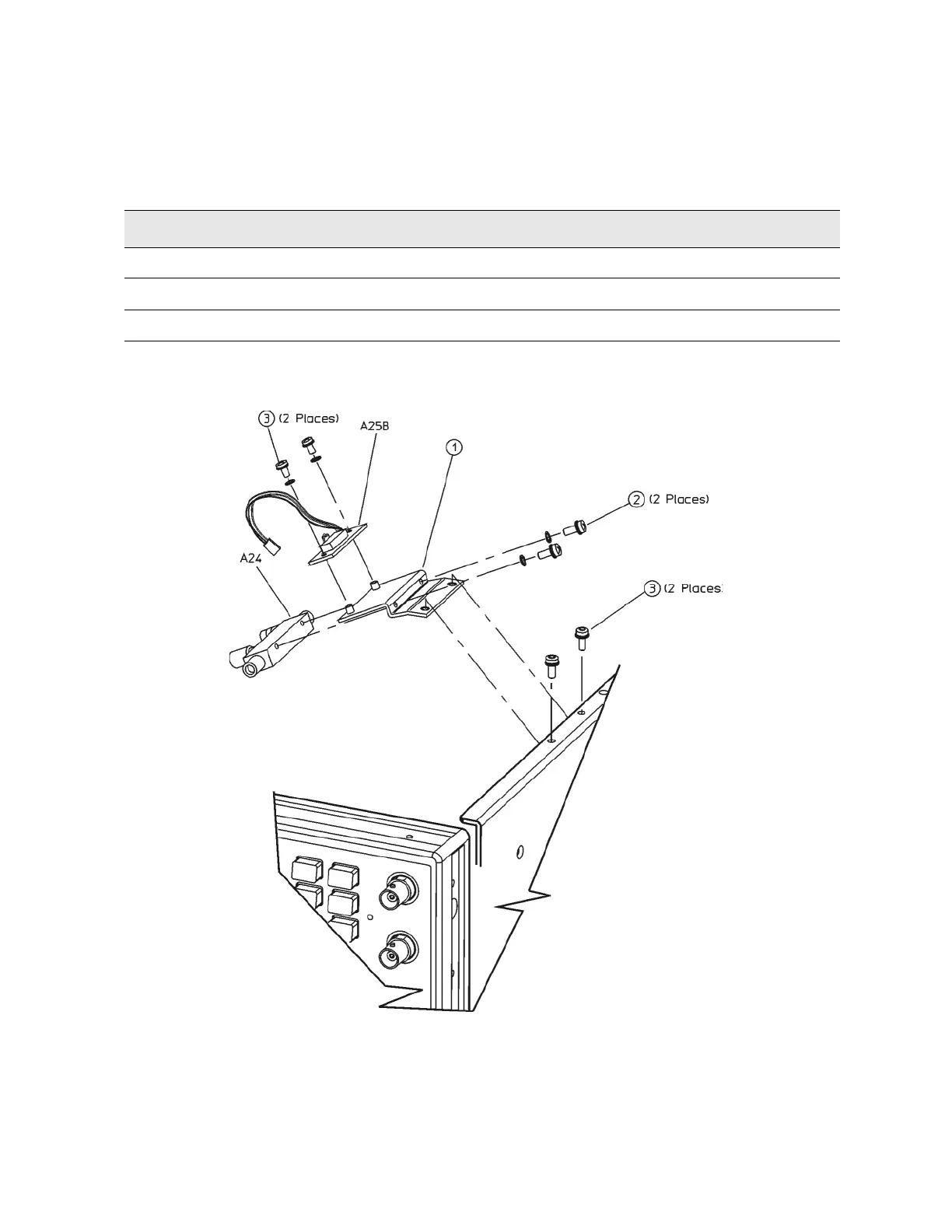

Figure 2-24 Disassembled A24 50GHz Highband Coupler and A25B Highband Detector

Bias Board

Table 2-12 Disassembled A24 50GHz Highband Coupler and A25 Highband Detector

Item No. Description Qty Part Number

1 Coupler Bracket (Option 532/544) 1 E8251-00300

2 Screw-Machine M4.0 x .312 PN-PN 2 2200-0103

3 Screw-Machine M3.0 x 8 CW-PN-TX 4 0515-0372
