242 E8257D/67D, E8663D PSG Signal Generators Service Guide
Replaceable Parts
Hardware
APC 3.5 RF Output Connector (Options 513 and 520 Only)

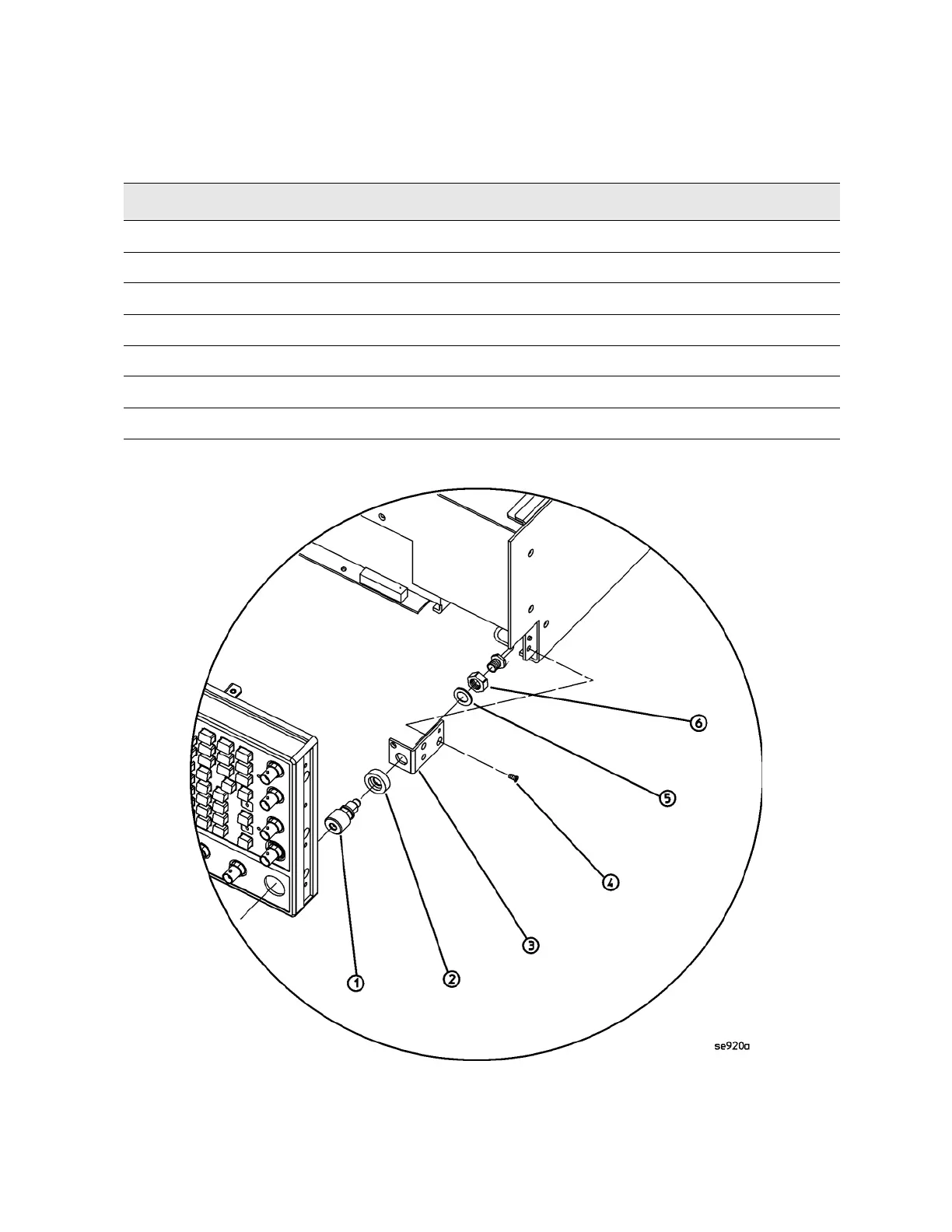

Figure 2-32 APC 3.5 RF Output Connector (Options 513 and 520 Only)
Table 2-18 APC 3.5 RF Output Connector (Options 513 and 520 Only)
Item No. Description Qty Part Number
1 Adapter-Male APC 3.5 1 08673-60040
2 Spacer APC 3.5 1 E8251-20068
3 Adapter Bracket 1 E8251-00215
4 Screw-Machine M4.0 x 10 FL-TX 1 0515-1269
5 Washer lock .377ID 1 2190-0016
6 Nut-Hex 1 2950-0001
W86 Semi-Rigid Cable (refer to Table on page 209.)
