240 E8257D/67D, E8663D PSG Signal Generators Service Guide

Replaceable Parts

Hardware

1.85 mm RF Output Connector (Option 567 Only)

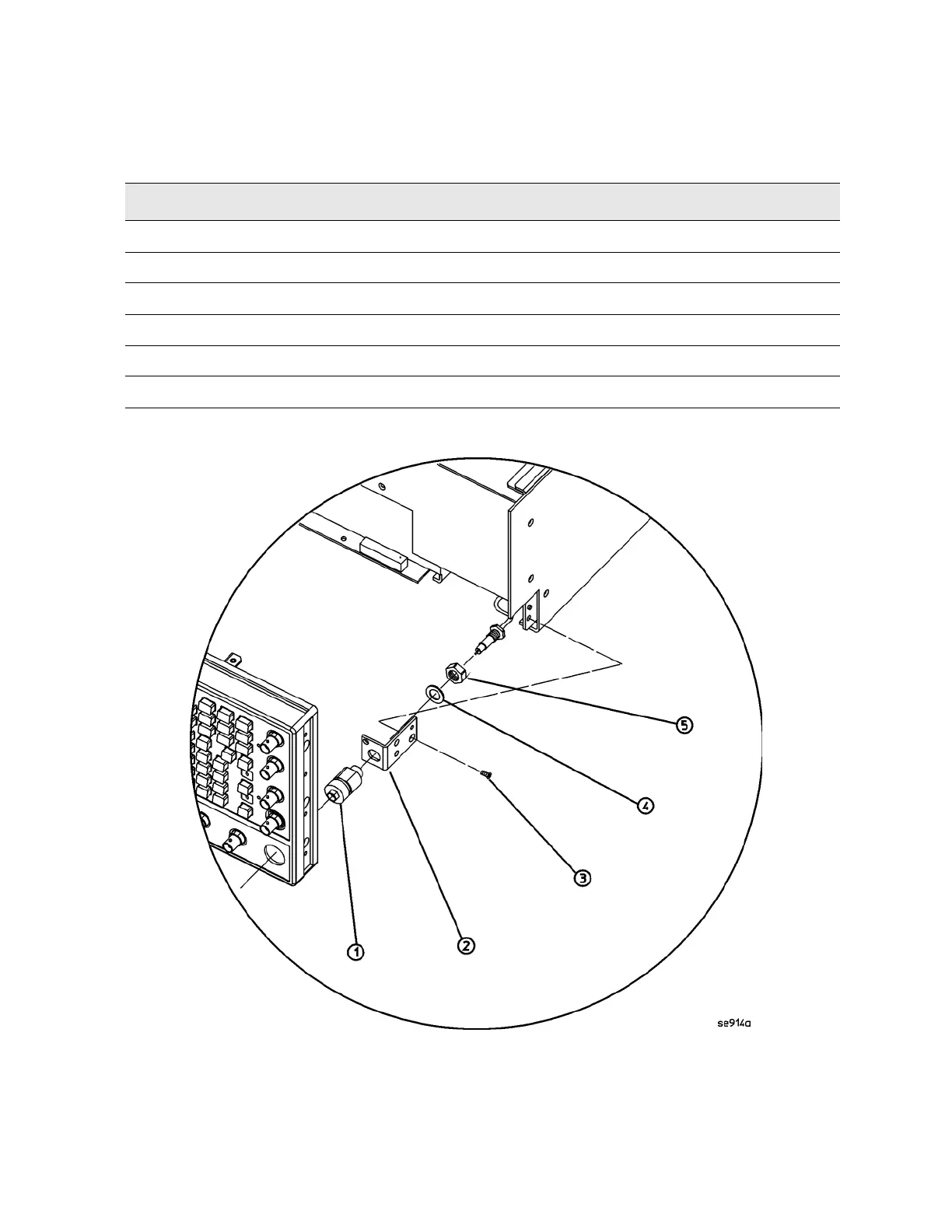

Figure 2-30 1.85 mm RF Output Connector (Option 567 Only)

Table 2-16 1.85 mm RF Output Connector (Option 567 Only)

Item No. Description Qty Part Number

1 Adapter-Male 1.85 mm 1 5065-9852

2 Adapter Bracket 1 E8251-00216

3 Screw-Machine M4.0 x 10 FL-TX (front frame to adapter bracket) 1 0515-1269

4 Washer lock .377ID 1 2190-0104

5 Nut-Hex 1 2950-0132

W92 Semi-Rigid Cable (refer to Table 2-4 on page 209.)
