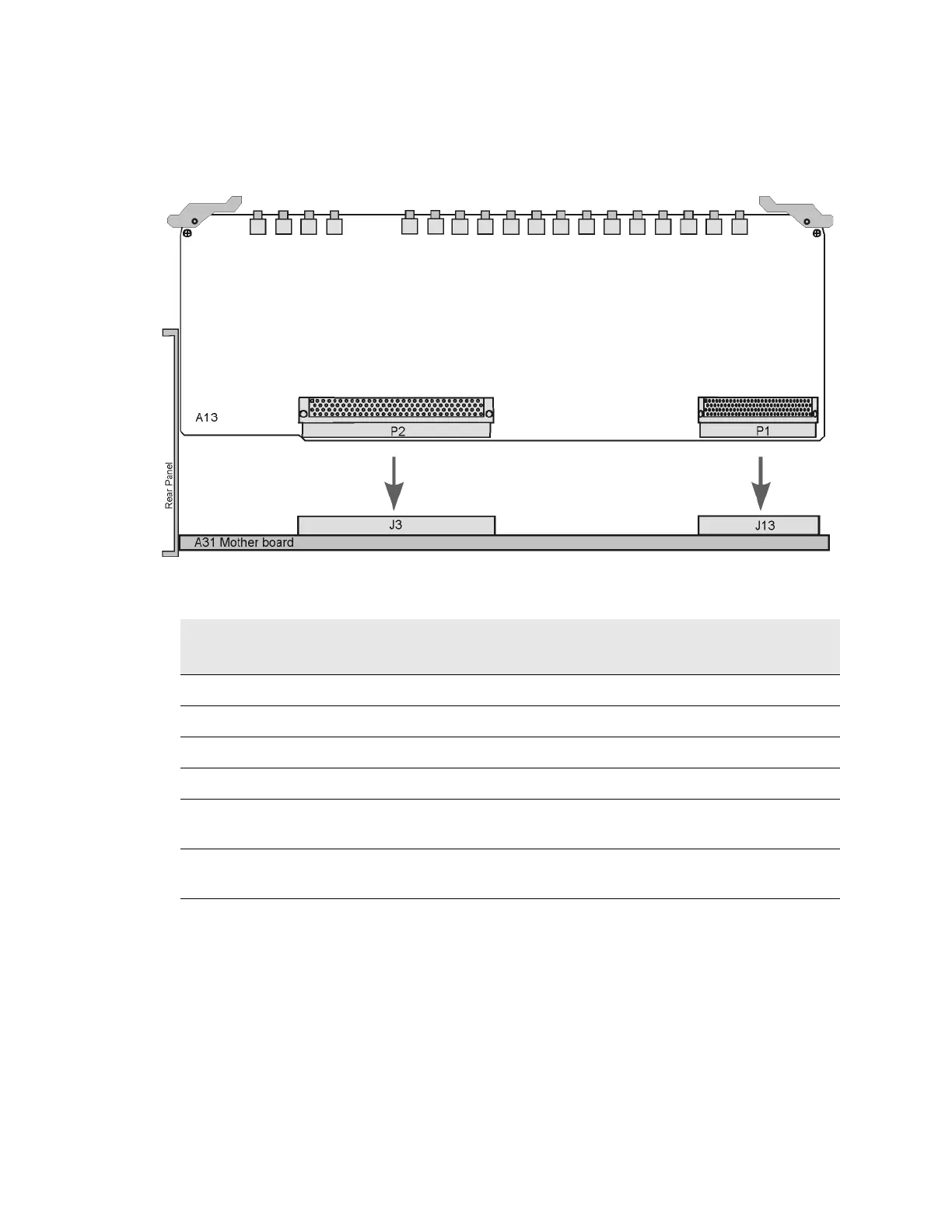

E8257D/67D, E8663D PSG Signal Generators Service Guide 55

Troubleshooting

Troubleshooting Assembly–Level Problems

Self–Tests 1xx for the A13 I/Q Multiplexer

Power Supply Voltage

(Vdc)

A31 Motherboard

Connector Pins

Minimum

(Vdc)

Maximum

(Vdc)

Origin

+15 P152 – 28 +14.55 +15.45 Main Supply

−15 P152 – 3 −15.45 −14.55 Main Supply

+5.2 P152 – 27 +5.04 +5.36 Main Supply

−5.2 P152 – 1 −5.36 −5.04 A9 YIG Driver

−5.2 V2 P152 – 26 −5.30 −5.10 A31

Motherboard

+5.2 D P151 – 64, 65, 129,

130

+5.04 +5.36 Main Supply
