E8257D/67D, E8663D PSG Signal Generators Service Guide 241

Replaceable Parts

Hardware

2.4 mm RF Output Connector

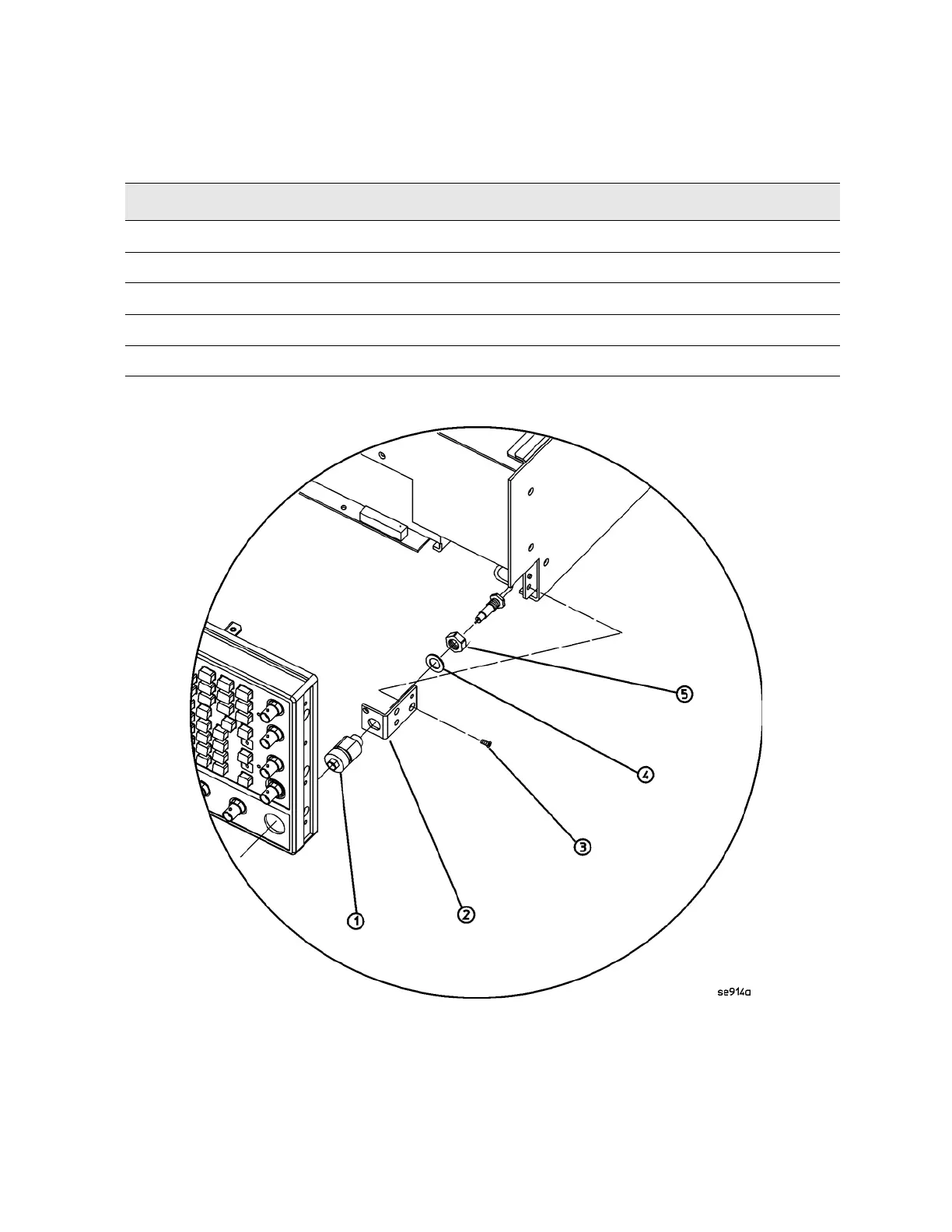

Figure 2-31 2.4 mm RF Output Connector

Table 2-17 2.4 mm RF Output Connector

Item No. Description Qty Part Number

1 Adapter-Male 2.4 mm 1 5063-1700

2 Adapter Bracket 1 E8251-00216

3 Screw-Machine M4.0 x 10 FL-TX (front frame to adapter bracket) 1 0515-1269

4 Washer lock .377ID 1 2190-0104

5 Nut-Hex 1 08360-20133
