Keysight Technologies E8257D - Type-N RF Output Connector (Option 1 ED Models Only)

To Next Page

To Previous Page

E8257D/67D, E8663D PSG Signal Generators Service Guide 243

Replaceable Parts

Hardware

Type-N RF Output Connector (Option 1ED Models Only)

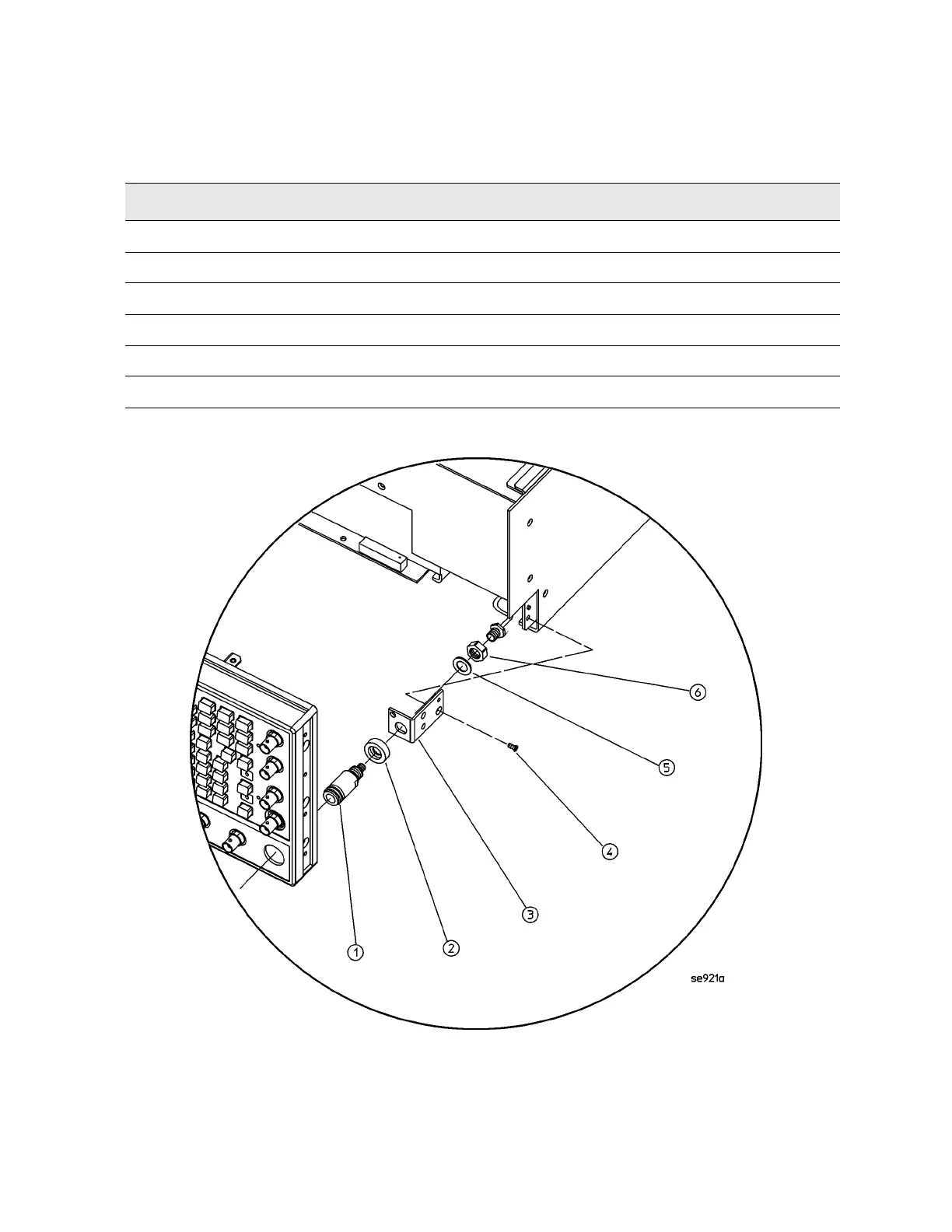

Figure 2-33 Type-N RF Output Connector (Option 1ED Models Only)

Table 2-19 Type-N RF Output Connector (Option 1ED Models Only)

Item No. Description Qty Part Number

1 Adapter-Type-N (f) 1 08559-60002

2 Spacer 1 E8251-20067

3 Adapter Bracket 1 E8251-00216

4 Screw-Machine M4.0 x 10 FL-TX 1 0515-1035

5 Washer lock 1 2190-0102

6 Nut-Hex 1 2950-0132
