725 Low Band Filter Test
— Replace the A45.
Self–Tests 9xx: A10 ALC Self–Test Errors

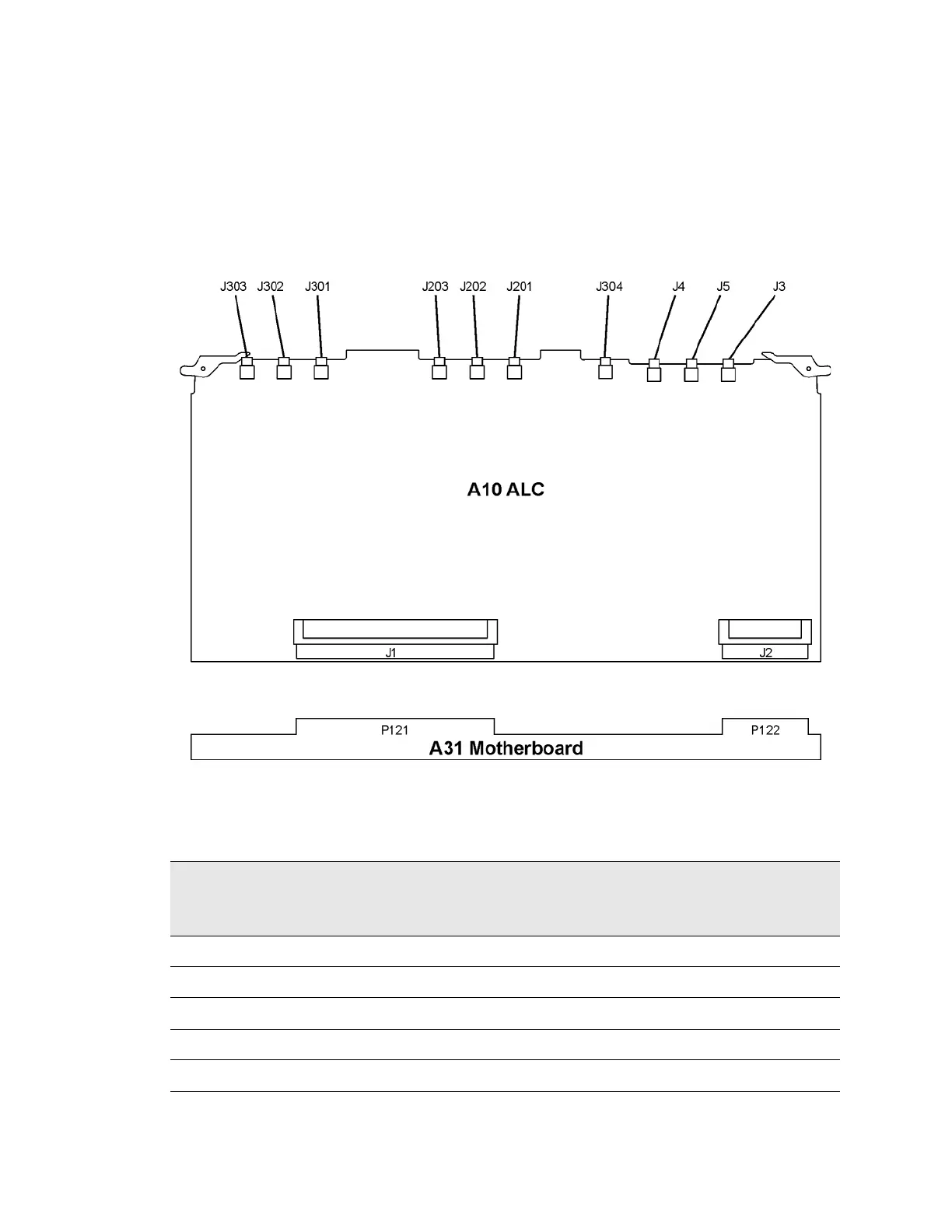

Before proceeding to the reported self–test error code, check the following
voltages. If any voltages are out of specification, troubleshoot the supply
problem first.
Supply
Voltage
(Vdc)
Connector Pins Minimum
Value
(Vdc)
Maximum
Value
(Vdc)
Origin
+32 P122–4 +31.04 +32.96 Main Supply
+15 P122–28 +14.55 +15.45 Main Supply
–15 P122–3 –14.55 –15.45 Main Supply
+5.2 P122–2, 27 +5.04 +5.37 Main Supply
–5.2 P122–1, 26 +5.30 +5.10 YIG Driver
