264 E8257D/67D, E8663D PSG Signal Generators Service Guide

Assembly Replacement

Front Panel

Replacement Procedure

1. Reverse the order of the removal procedure.

2. Torque all T–10 screws to 9 in–lbs.

3. Torque all T–15 screws to 21 in–lbs.

4. Perform the post–repair adjustments and performance tests that pertain

to this removal procedure.

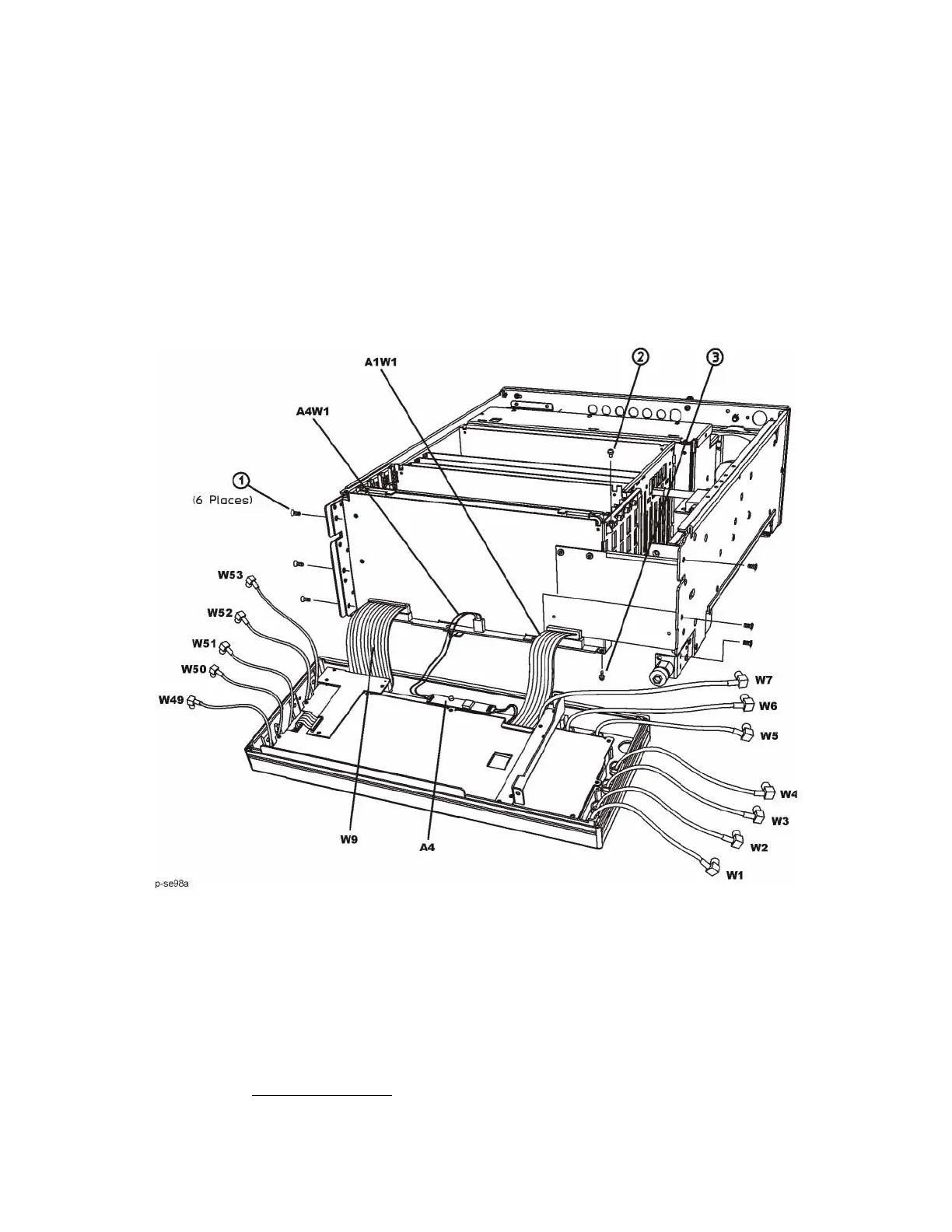

Figure 3-3 Front Panel Removal with serial prefixes < US/MY5XXX3XXX

1. Applicable if the A2 does not have the most current LCD.
