E8257D/67D, E8663D PSG Signal Generators Service Guide 267

Assembly Replacement

A1 Keyboard

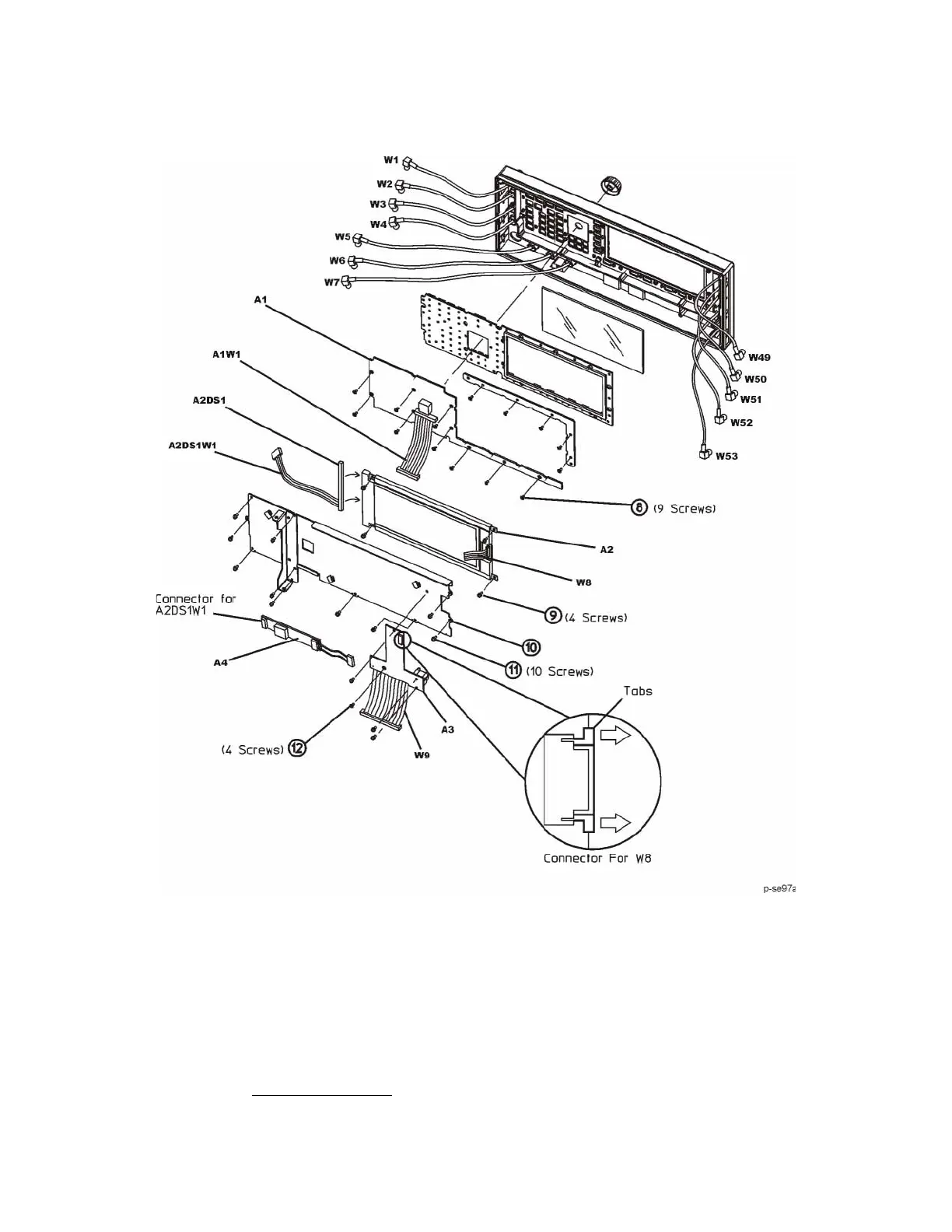

Figure 3-5 A1 Keyboard Removal with serial prefixes < US/MY5XXX3XXX

1. Applicable if the A2 does not have the most current LCD.
