270 E8257D/67D, E8663D PSG Signal Generators Service Guide

Assembly Replacement

A2 Display

3. Perform the post–repair adjustments and performance tests that pertain

to this removal procedure.

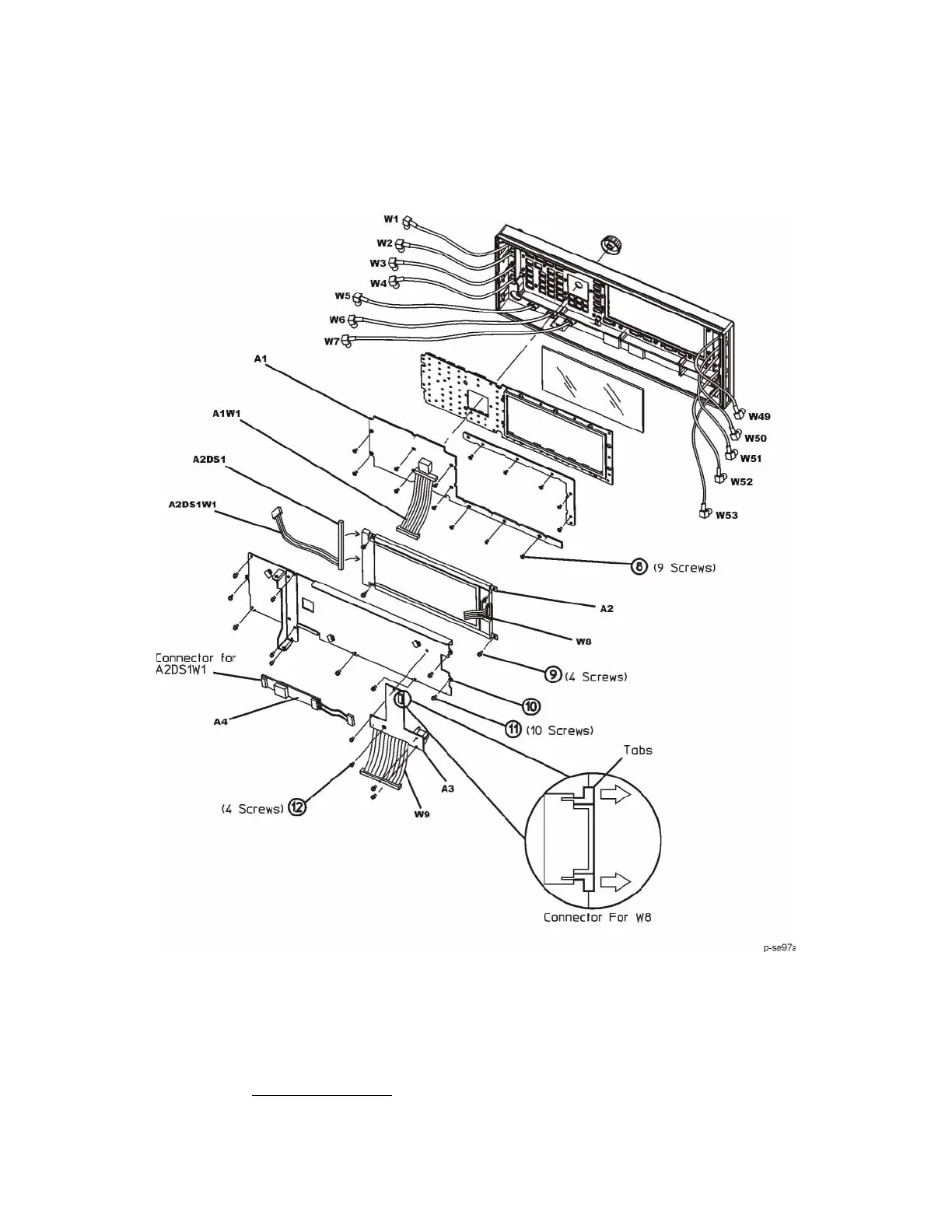

Figure 3-7 A2 Display Removal with serial prefixes < US/MY5XXX3XXX

1. Applicable if the A2 does not have the most current LCD.
