322 E8257D/67D, E8663D PSG Signal Generators Service Guide

Assembly Replacement

A24 67 GHz Highband Coupler (Options 550 and 567)

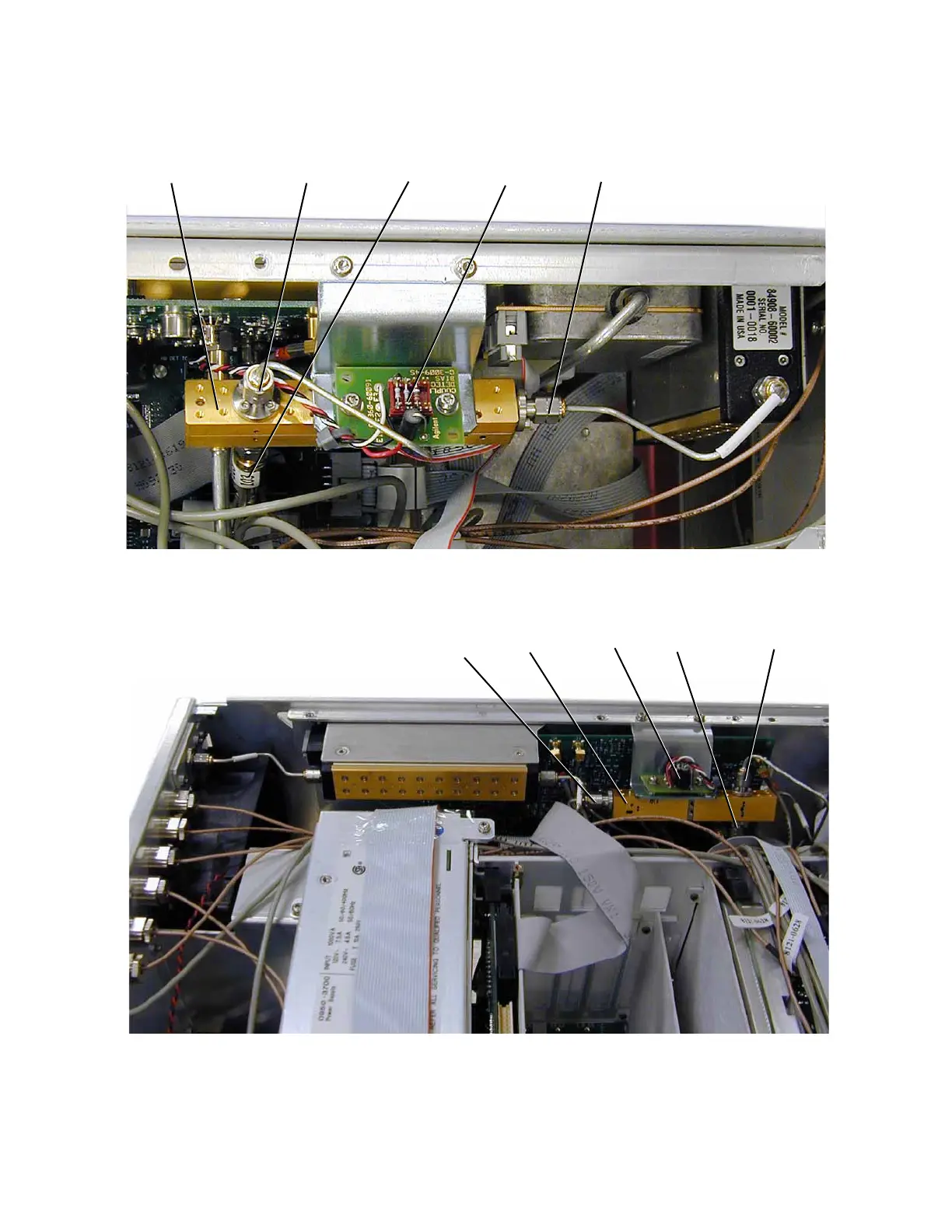

Figure 3-38 A24 67 GHz Highband Coupler (Options 550 & 567 – Standard)

Figure 3-39 A24 67 GHz Highband Coupler (Options 550 & 567 and Option 1EM)

A24

W112

A25

A25B

W91

A24

W112

W81

A25B

A25
