336 E8257D/67D, E8663D PSG Signal Generators Service Guide

Assembly Replacement

A26 MID (Microcircuit Interface Deck)

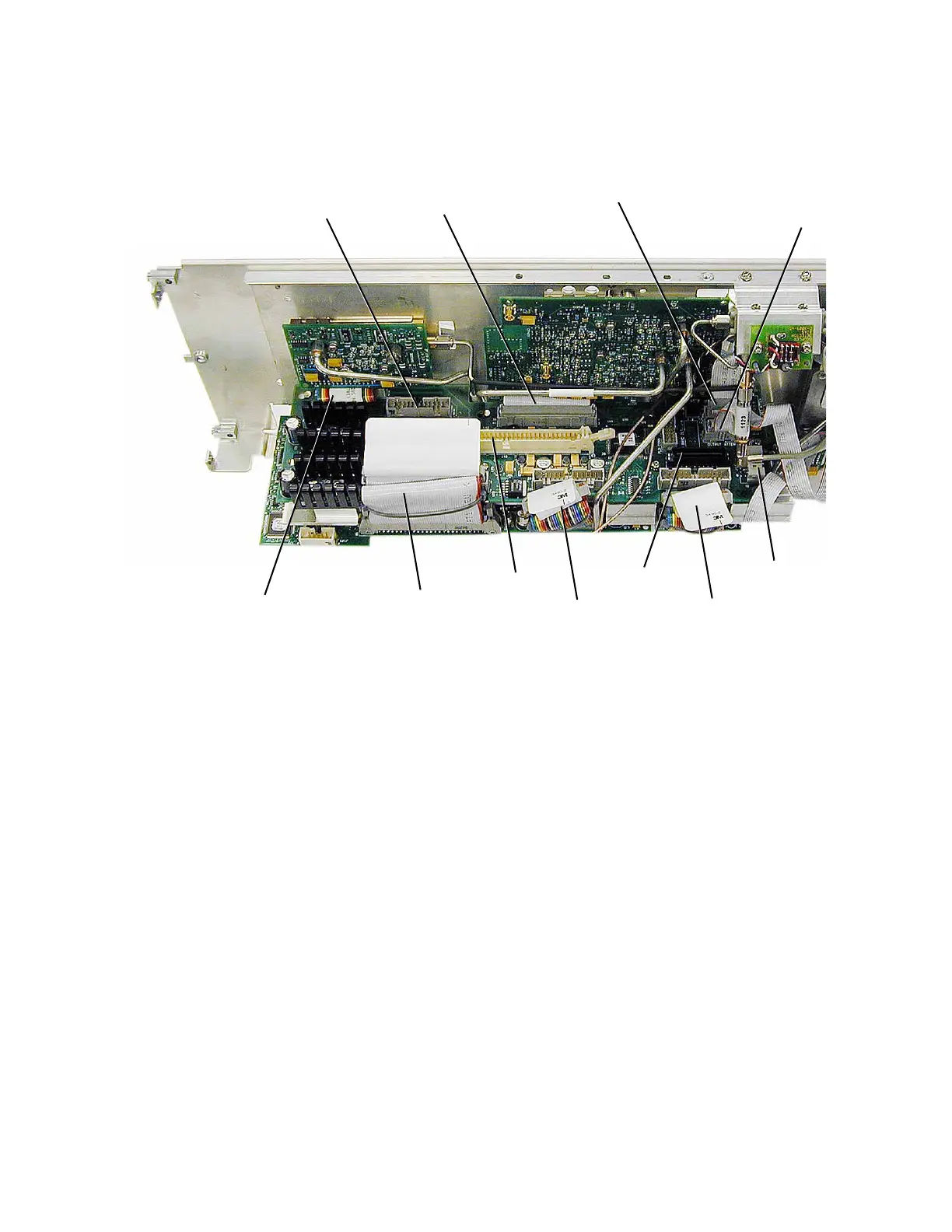

Figure 3-47 A26 MID (E8267D)

W35/A26J10

W20/A26J20

W70/A26J34

W69/A26J14

W33/A26J32

W34/A26J31

W19/A26J30

W28/A26J15

W36/A26J13

W99/A26J35

(Options 532 & 544)

W116/A26J36

Default Chapter5
