376 E8257D/67D, E8663D PSG Signal Generators Service Guide

Assembly Replacement

A37 Upconverter (E8267D Only)

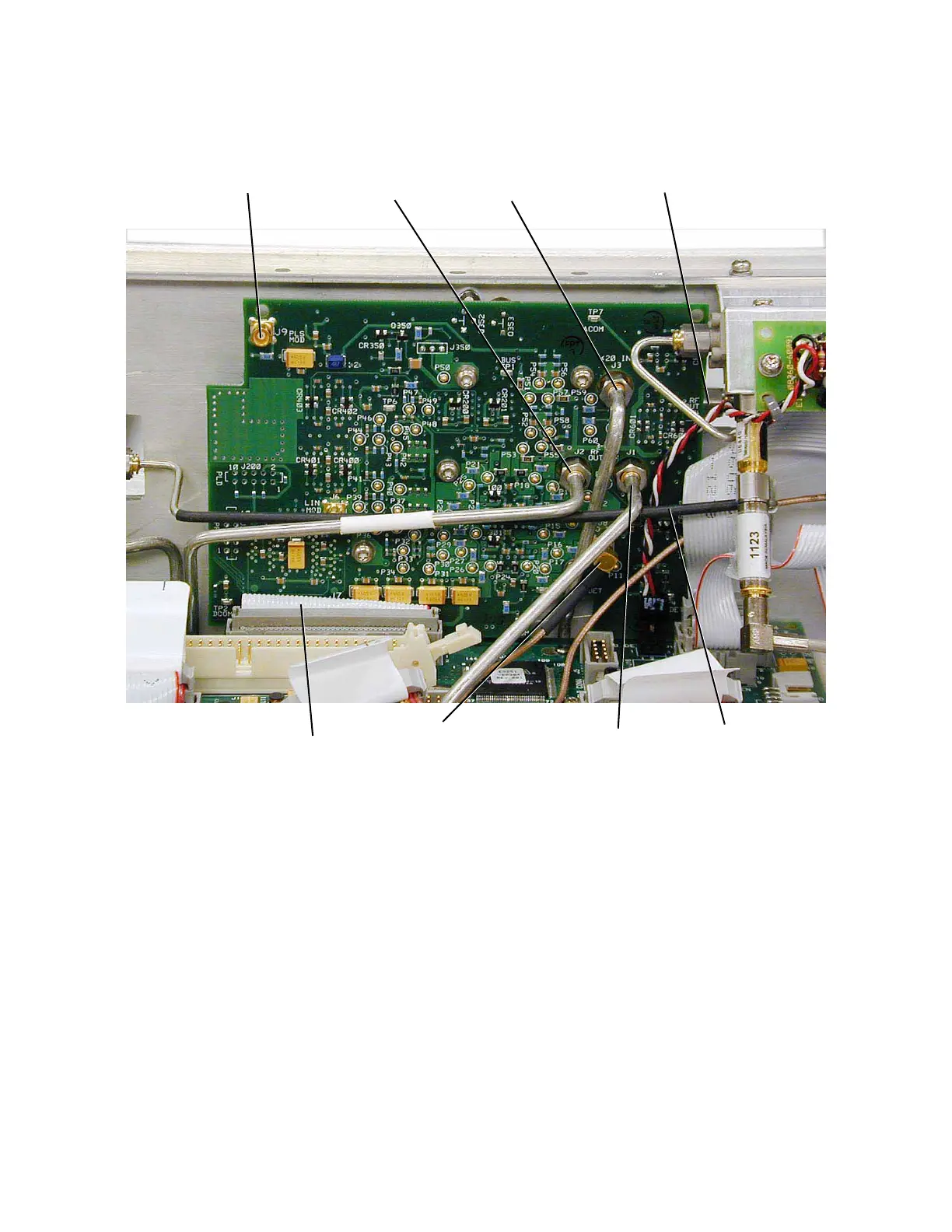

Figure 3-64 A37 Upconverter

W103/A37J3

W114/A37J9

W98/A37J2

W102/A37J4

W99/A37J7 (backside)

W97/A37J8

W100/A37J5

W78/A37J1

Default Chapter5
