E8257D/67D, E8663D PSG Signal Generators Service Guide 47

Troubleshooting

Troubleshooting Assembly–Level Problems

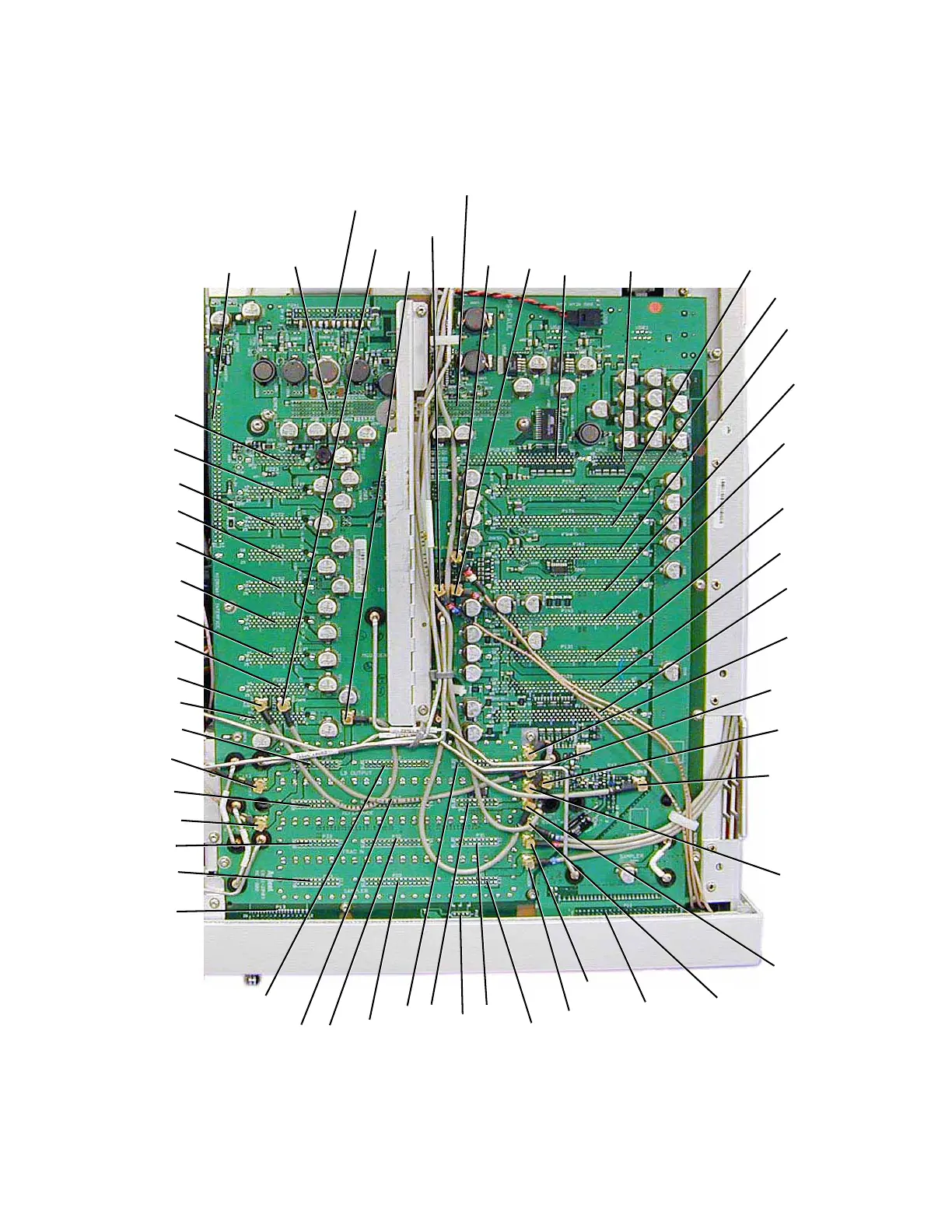

Figure 1-3 E8267D (Vector) Motherboard Connectors – Bottom View

P222

J231–J234

P241

J235–J239

P201 P221

P223

P172

P162

P152

P142

P132

P122

P112

P192

P53

P43

P33

P23

P13

P12

P31

P21

P41P51

P52

P42 P32

P22

P11

P191

P171

P161

P151

P141

P131

P121

P111

J1043

J1021

J1031

J1032

J1041

J1042

J1056

J1055

J1057

J1052

J1053

J1122

J1121

J1051

J501

J502

J500

Default Chapter5
- Table of Contents5
Troubleshooting17
- Electrostatic Discharge (ESD) Information17
- Electrostatic Discharge (ESD) Information18
  - Handling of Electronic Components and ESD19
- Getting Started with Troubleshooting20
  - Running Self-Test21
- A18 CPU Turn-On Test22
- Self-Test Failures and Related Troubleshooting25
- Troubleshooting Assembly-Level Problems30
- Troubleshooting Unlocks104
Contents105
- 514 Reference Oven Cold105
- 515 10 Mhz Signal Bad105
- 520 Sampler Unlocked106
- 521 YO Loop Unlocked106
- 625 Internal Pulse Generator Unlock107
- 626 Internal Mod Source Unlock107
Troubleshooting Unlevels108
- Troubleshoot and Correct any Unlock Problems before Troubleshooting Unleveled Problems108
Troubleshooting Adjustment Problems116
Troubleshooting ADC Adjustment Failures119
Troubleshooting Performance Test Problems120
Troubleshooting the RF Path122
- Troubleshooting RF Power Levels122
- ALC and RF Problems122
- Troubleshooting Pulse Modulation124
- Troubleshooting AT1 Attenuator125
Troubleshooting Harmonic Spurious127
- 20 Ghz Models127
- 32 Ghz and 44 Ghz Models Only129
- 40 Ghz Models Only129
- 50 And 67 Ghz Models Only130
Troubleshooting Non-Harmonic Spurious132
Troubleshooting Option UNR/UNX/UNY and Instruments with Serial Prefixes ≥ US4805/MY4805 Phase Noise133
Overall Description134
- A18 Cpu134
- A19 Power Supply134
- Input/Output Interface135
- Frequency Generation136
Overallpsg Vector Signal Generator145
Overallpsg Analog Signal Generator145
Reference/Synthesis Loop Description145
- A5 Sampler (CW Mode Only)147
- A6 Frac-N147
- A7 Reference148
- A9 YIG Driver149
- A28 YIG Oscillator (YO)150
- A29 20 Ghz Doubler150
- A38 Switch Filter and A43 Lowband Amp Filter (Option 1EH)150
Reference/Synthesis Loop150
RF Path Description (Frequency Generation, Level Control, and Modulation)152
- A6 Frac-N153
- A8 Output154
- A12 <3.2 Ghz Fast Pulse Modulator (Option UNW)154
- A23 Lowband Coupler/Detector, A24 Highband Coupler, and A25 High Band Detector155
- A27 40 Ghz Doubler (Analog 40 Ghz Models and Vector 44 Ghz Models)155
- Vector Low Band RF Path170
- Self-Test Overview171
  - How Self-Test Works171
  - Independent Failures171
- Contacting Keysight Technologies173
  - Keysight Sales and Service Offices175
  - Packaging a Signal Generator for Return175
Replaceable Parts177
- Ordering Information177
  - Order Parts Fast177
- Frequency, Hardware, and Personality Options178
- Assemblies180
- Assemblies from the Inside Front Panel View186
- Assemblies from a Top View188
- Assemblies from a Microcircuit Deck View193
- Assemblies from a Bottom View196
- A18BT1 Lithium Battery198
- Cables199
- Hardware210
Contents226
- Miscellaneous238
- Abbreviations Used in Part Descriptions241
Assembly Replacement243
- Before You Replace an Assembly243
- Assemblies that You Can Replace244
- Outer Instrument Cover248
  - Tools Required248
  - Removal Procedure248
  - Replacement Procedure248
- Inner Instrument Cover250
  - Tools Required250
  - Removal Procedure250
  - Replacement Procedure250
- Front Panel252
  - Tools Required252
  - Removal Procedure252
  - Replacement Procedure254
- A1 Keyboard256
  - Tools Required256
  - Removal Procedure256
  - Replacement Procedure256
- A2 Display259
  - Tools Required259
  - Removal Procedure259
  - Replacement Procedure259
- A2DS1 Display Backlight (Serial Number Prefix < US/MY5XXX3XXX Only)262
  - Tools Required262
  - Removal Procedure262
  - Replacement Procedure262
- A3 Power Switch264
  - Tools Required264
  - Removal Procedure264
  - Replacement Procedure264
- A4 Inverter (Serial Number Prefix < US/MY5XXX3XXX Only)267
  - Tools Required267
  - Removal Procedure267
  - Replacement Procedure267
- A5 Sampler, A6 Frac-N, A7 Reference269
- (Standard and Option UNR/UNX/UNY), A8 Output269
- A45 Frac-N and A46 Offset269
  - Tools Required269
  - Removal Procedure269
  - Replacement Procedure269
- A9 YIG Driver271
  - Tools Required271
  - Removal Procedure271
  - Replacement Procedure271
- A10 Alc273
  - Tools Required273
  - Removal Procedure273
  - Replacement Procedure273
- A11 Pulse/Analog Modulation Generator275
  - Tools Required275
  - Removal Procedure275
  - Replacement Procedure275
- A12 Pulse Modulator Board277
  - Tools Required277
  - Removal Procedure277
  - Replacement Procedure277
- A13 I/Q MUX (E8267D Standard or with Option 015) (Serial Prefixes <US4722/MY4722)279
  - Tools Required279
  - Removal Procedure279
  - Replacement Procedure279
- A13 I/Q MUX (E8267D Standard or with Option H16/016) (Serial Prefixes ≥ US4722/MY4722)281
  - Tools Required281
  - Removal Procedure281
  - Replacement Procedure282
- A14 Baseband Generator (E8267D Only)283
  - Tools Required283
  - Removal Procedure283
  - Replacement Procedure283
- A17 Baseband Generator Interface (E8267D Only)285
  - Tools Required285
  - Removal Procedure285
  - Replacement Procedure285
Contents287
- A18 Cpu287
  - Tools Required287
  - Removal Procedure287
- Replacement Procedure287
A18Bt1289
- Tools Required289
- Removal Procedure289
- Replacement Procedure289
A19 Power Supply291
- Tools Required291
- Removal Procedure291
- Replacement Procedure292
A20 SMI (Source Module Interface)294
- Tools Required294
- Removal Procedure294
- Replacement Procedure294
A21 Rear-Panel Interface296
- Tools Required296
- Removal Procedure296
- Replacement Procedure296
A22 Line Module298
- Tools Required298
- Removal Procedure298
- Replacement Procedure298
A23 Lowband Coupler/Detector300
- Tools Required300
- Removal Procedure300
- Replacement Procedure300
A24 20 Ghz Highband Coupler (Options 503, 509, 513, 520, and 521)302
- Tools Required302
- Removal Procedure302
- Replacement Procedure303
A24 40 Ghz Highband Coupler (Option 540)307
- Tools Required307
- Removal Procedure307
- Replacement Procedure307
A24 50 Ghz Highband Coupler (Options 532 and 544)309
- Tools Required309
- Removal Procedure309
- Replacement Procedure309
A24 67 Ghz Highband Coupler (Options 550 and 567)311
- Tools Required311
- Removal Procedure311
- Replacement Procedure311
A25 20 Ghz Highband Detector (Options 503, 509, 513, 520, & 521)313
- Tools Required313
- Removal Procedure313
- Replacement Procedure313
A25 40 Ghz Highband Detector (Option 540)316
- Tools Required316
- Removal Procedure316
- Replacement Procedure316
- A25 50 Ghz Highband Detector (Options 532 and 544)318
- A25 67 Ghz Highband Detector (Options 550 and 567)320
- A25B Highband Detector Bias Board322
- A26 MID (Microcircuit Interface Deck)324
- A27 40 Ghz Doubler (Option 540)327
- A27 40 Ghz Doubler (Options 532 and 544 Only)329
- A28 YIG Oscillator331
- A29 20 Ghz Doubler333
- A30 Modulation Filter (Standard and Option 1EA/1EU)335
- A31 Motherboard (E8257D & E8663D)338
- A31 Motherboard (E8267D)341
Contents344
A32 10 Mhz Crystal Oscillator344
- Tools Required344
- Removal Procedure344
- Replacement Procedure344
A33 6Db PAD (Options 503, 509, 513, 520, and 521)346
- Tools Required346
- Removal Procedure346
- Replacement Procedure346
A33 10Db PAD (Options 532 and 544)348
- Tools Required348
- Removal Procedure348
- Replacement Procedure348
Rear Panel (Standard)350
- Tools Required350
- Removal Procedure350
- Replacement Procedure351
Rear Panel (Option 1EM)353
- Tools Required353
- Removal Procedure353
- Replacement Procedure355
A34 Internal Hard Drive (E8267D Only - Discontinued)357
- Tools Required357
- Removal Procedure357
- Replacement Procedure357
A35 3-20 Ghz I/Q Modulator (E8267D Only - Standard or with Option 015)359
- Tools Required359
- Removal Procedure359
- Replacement Procedure359
A35 3-20 Ghz I/Q Modulator (E8267D Only - Standard or with Option H16/016) (Serial Prefixes ≥ US4722/MY4722)361
- Tools Required361
- Removal Procedure361
- Replacement Procedure361
A36 Quadraplier (Options 550 and 567)363
- Tools Required363
- Removal Procedure363
- Replacement Procedure363
A37 Upconverter (E8267D Only)365
- Tools Required365
- Removal Procedure365
- Replacement Procedure365
A38 Lowband Switch Filter367
- Tools Required367
- Removal Procedure367
- Replacement Procedure367
A39 Directional Sweep Coupler369
- Tools Required369
  - Removal Procedure369
  - Replacement Procedure369
- A40 Compact Flash Drive Assembly371
- A41 Flash Drive Door Assembly373
- A42 20 Ghz Power Amp (Option 521)375
- A43 Lowband Amp Filter377
- A44 Scan Modulation Bias Adapter (E8257D-520 and E8663D Only)379
- AT1 90 Db Attenuator381
- AT1 115 Db Attenuator383
- AT1 90 Db Attenuator (Option 1EM)385
- AT1 115 Db Attenuator (Option 1EM)387
- B1 Fan389
Post-Repair Procedures391
- Post-Repair Procedures Matrix392
- CPU Configuration405
Contents409
Safety and Regulatory409
- General Safety Considerations410
- Lithium Battery Disposal411
- Assistance411
- Certification411
