Getting Started 2
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 23
Side Panel Connectors
The Infiniium MXR-Series oscilloscope's right side panel has the motherboard I/O
connectors, reference clock synchronization connectors, and BNC connectors.
Motherboard I/O
The motherboard provides these inputs/outputs/ports in the oscilloscope: four
USB ports for peripherals, an external monitor connector, a USB III device port (for
remote control of the oscilloscope from a PC), a LAN port, and speaker and
microphone connectors.

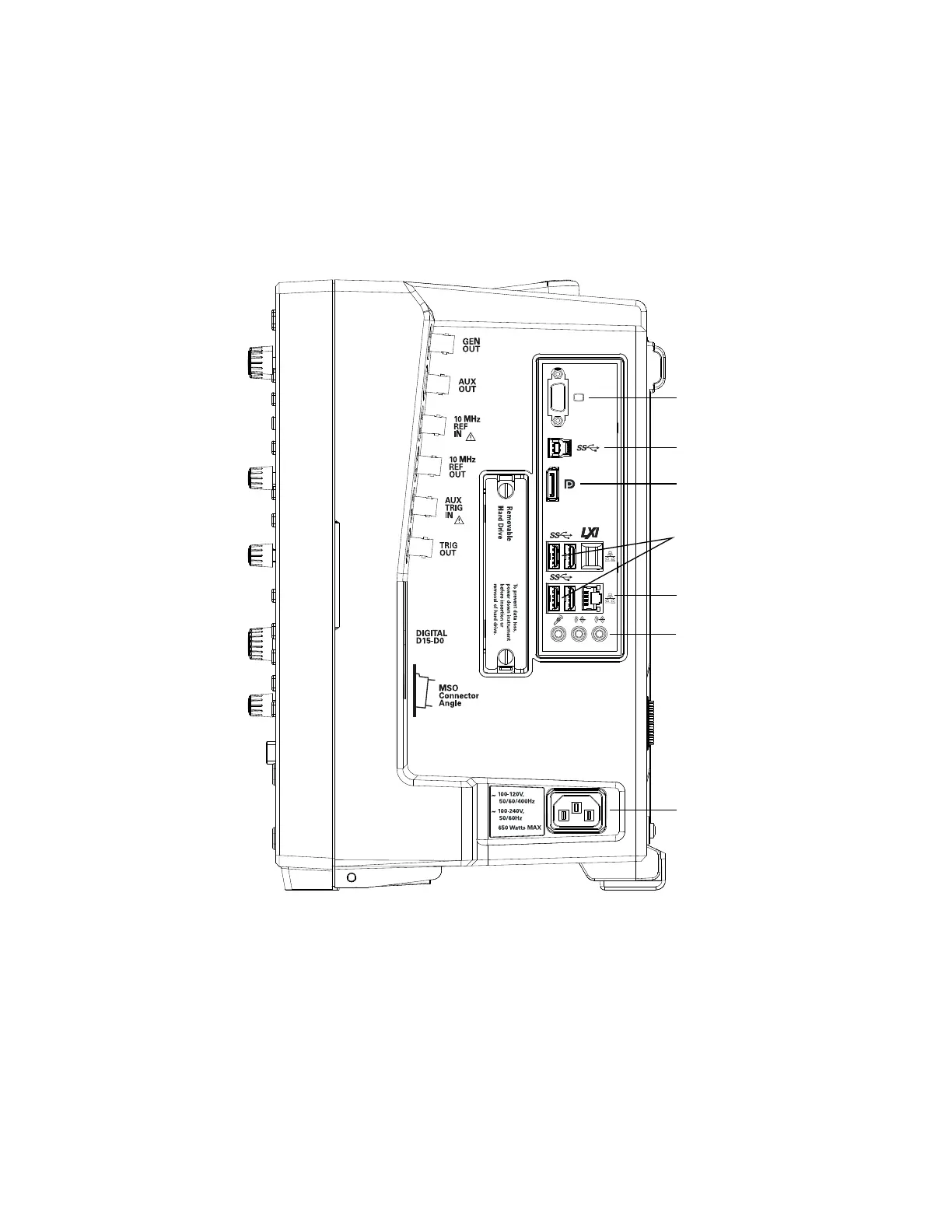

Figure 6 Infiniium MXR-Series oscilloscope side panel I/O
Removable Hard Drive
To prevent data loss, power down instrument before insertion or removal of hard drive.
~
~
650 Watts MAX
100-240V,
50/60Hz
100-120V,
50/60/400Hz
10 MHz
REF
OUT
AUX
OUT
IG><
DJI
AUX
TRIG
IN
GEN
OUT
10 MHz
REF
IN
DIGITAL
D15-D0
MSO
Connector
Angle
External monitor
connector
Audio connectors
AC power input
Mouse and keyboard
connectors (USB 3
host ports)
LAN connector
DisplayPort
USB 3 Device port
