Getting Started 2
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 35
Adjusting the Horizontal Settings
Use the horizontal controls to configure the horizontal scale and horizontal
position of the waveform. You can view a magnified section of the waveform using
the zoom window.
To adjust the horizontal scale and position, use gestures on the touch screen or
use the horizontal knobs, horizontal controls, or Horizontal dialog box.
Adjusting the Horizontal Scale
• The horizontal scale knob is the larger of the two horizontal control knobs. To
stretch the waveform horizontally (displaying fewer seconds per division), turn
the knob clockwise. To shrink it horizontally, turn the knob counter-clockwise.
• Push and turn the horizontal scale knob to change the scaling in finer (Vernier)
increments.
• You can also use multi-touch gestures to stretch or shrink the waveform.

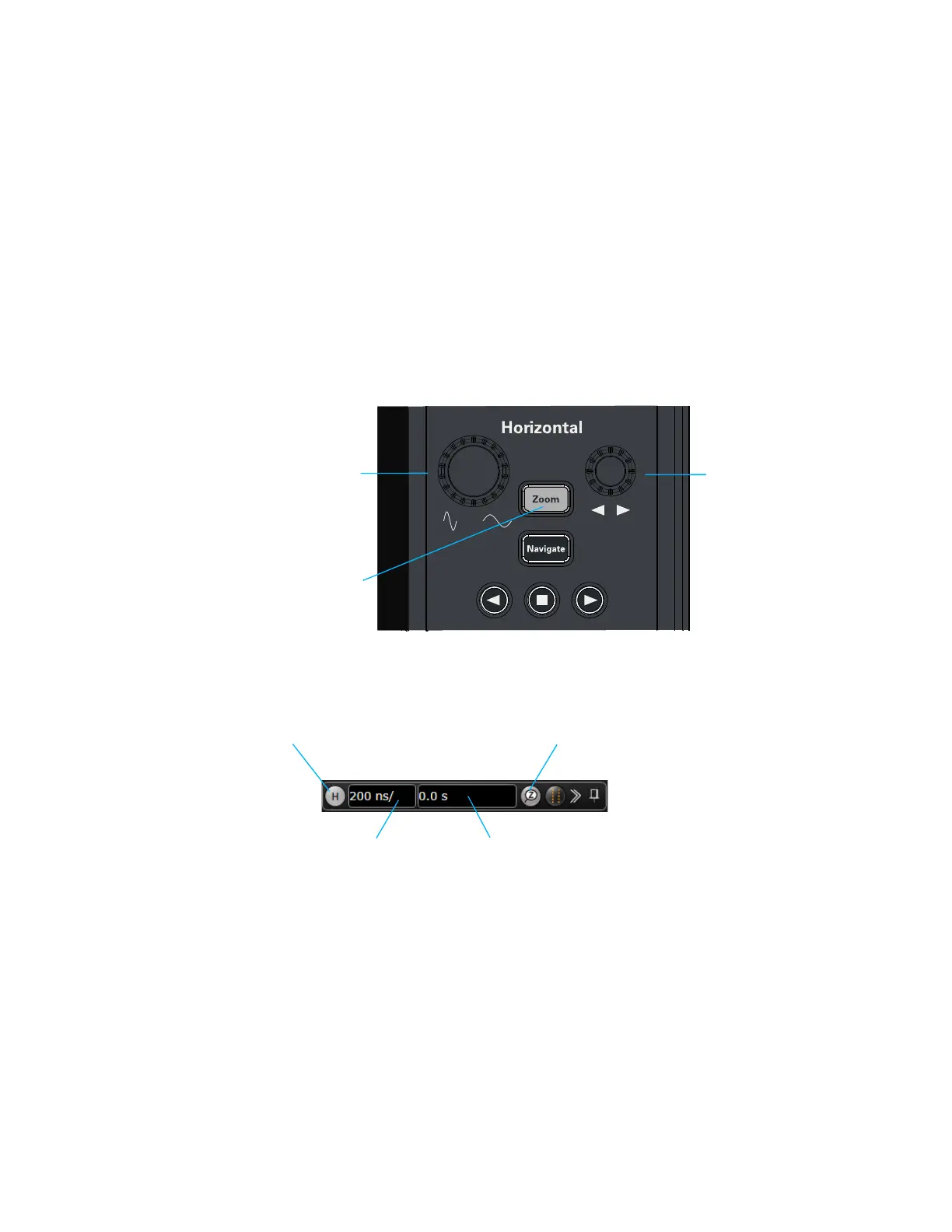

Figure 14 Front panel horizontal knobs and controls
Figure 15 Graphical user interface horizontal controls
Horizontal
position knob
Horizontal
scale knob
Magnify part of
the waveform in
a new window
Turn Zoom mode on/off
Open the Horizontal dialog box
Set horizontal scale
(time per division)
Set horizontal position
(delay)
