Getting Started 2
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 41
Trigger Level and Other Controls
Around the Trigger Level knob, centrally located on the front panel, are controls for
performing various tasks.
Entry Knob
The Entry knob is a multiplexed knob that can used to adjust values in selected
dialog box fields.
The curved arrow LED on the front panel illuminates whenever the Entry knob
can be used to adjust a value. The value being adjusted is displayed in a popup
message box.
Also, when the symbol appears in a field, you can use the Entry knob to adjust
values.
The Entry knob can sometimed be pushed to make a selection or default value
setting.
[Multi Purpose] Key
The [Multi Purpose] key can be configured to perform one of many quick actions,
such as loading a setup file, saving composite data or a measurement report to a
file, saving the screen image to a bitmap file, or performing automatic
measurements.

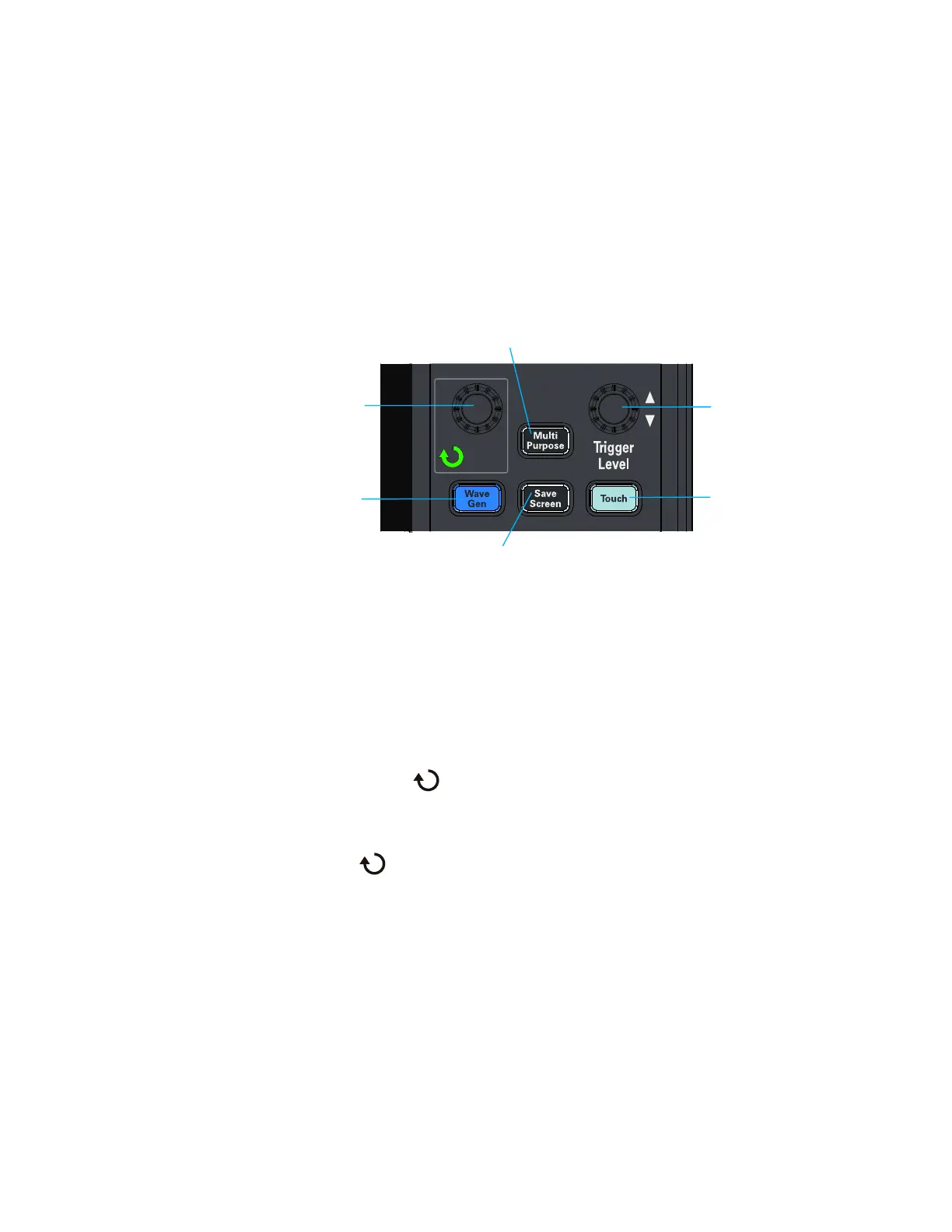

Figure 18 Front panel trigger level (and other) controls
Set trigger level
Entry knob
Press to perform
configured action
(like Quick Meas)
Enable/disable
touch screen
Enable/disable
waveform
generator
output
Capture screen,
save to hard drive
