Getting Started 2
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 37

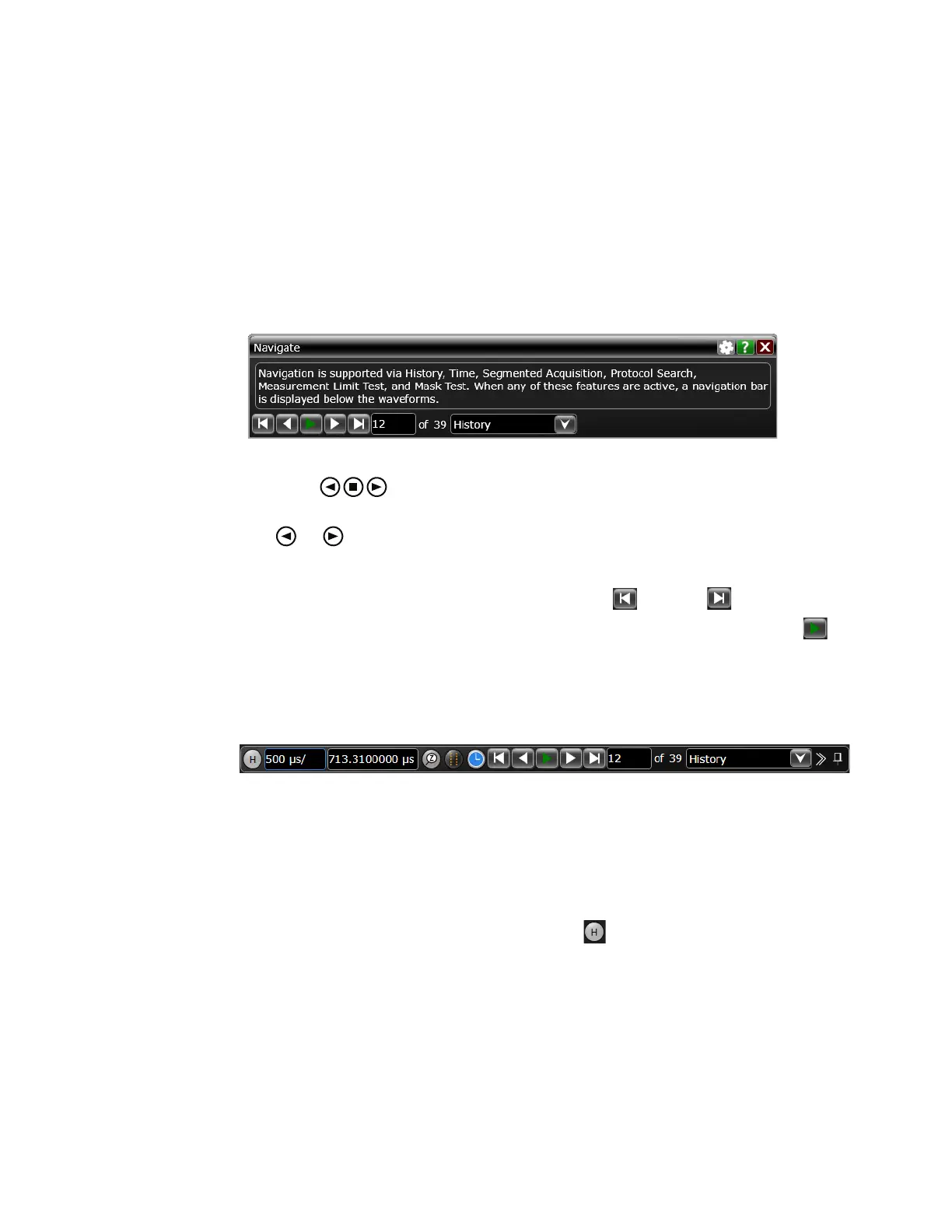

Using the Navigate Controls
Navigation can be performed for acquisition history (which is available when
running acquisitions are stopped), time, segmented memory acquisitions, protocol
search, measurement limit test, and mask test.
The [Navigate] key opens the Navigate dialog box where you can choose what to
navigate.
Press the navigation keys to step or play backward, stop (when
navigation is being played), or step or play forward. When playing, you can press
the or keys multiple times to speed up the playback. There are three speed
levels.
Additionally, the graphical user interface provides first and last buttons for
navigating to the first or last item in the collection, and somtimes there is a
play button for playing items.
The navigation controls also appear in the horizontal controls bar and can be
displayed or hidden by clicking the clock button.
Setting the scale, position, and timebase reference point
To set scale, position, and timebase reference, use the Horizontal dialog box or set
up the zoomed timebase window.
To access the Horizontal dialog box, click the in the horizontal toolbar, or
choose Setup > Horizontal... from the main menu.
