2 Getting Started
Using Digital Channels and Protocol Decode
On the front panel, just above the Vertical controls, are keys for digital channels
and protocol decode.
Controlling Digital Channels
If your oscilloscope's MSO option is enabled, choose Setup > Digital Channels... to
open the Digital dialog box so you can set up controls for the digital channels.
To turn the digital channels on, click the Add Waveforms button and select the
check box next to the , or press [Digital].
Decoding Serial Protocol Data
• To open the Protocol Decode dialog box so you can define parameters for
selected decodes, choose Setup > Protocol Decode... or press [Protocol Decode].
You can perform up to four decodes at the same time using p1-p4.
• After selecting the protocol decode parameters, click Auto Setup to
automatically configure the oscilloscope for the selected decode type.
• Decoded acquisition data appears in the Protocol Listing window.

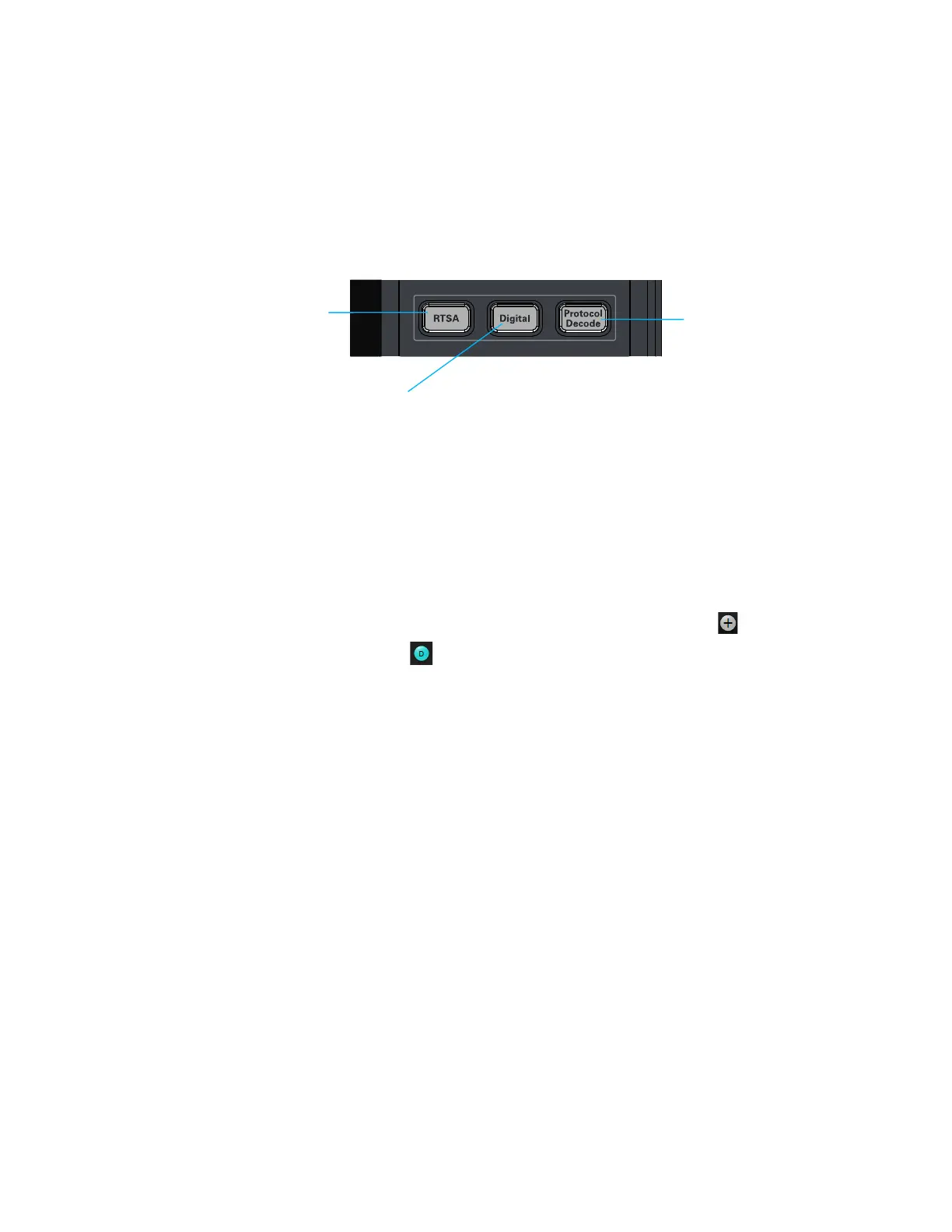

Figure 22 Front panel [Digital] and [Protocol Decode] keys
Enable or disable
protocol decode
(currently
not
available)
Turn digital channels
on or off
