80 Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide
6 Testing Performance

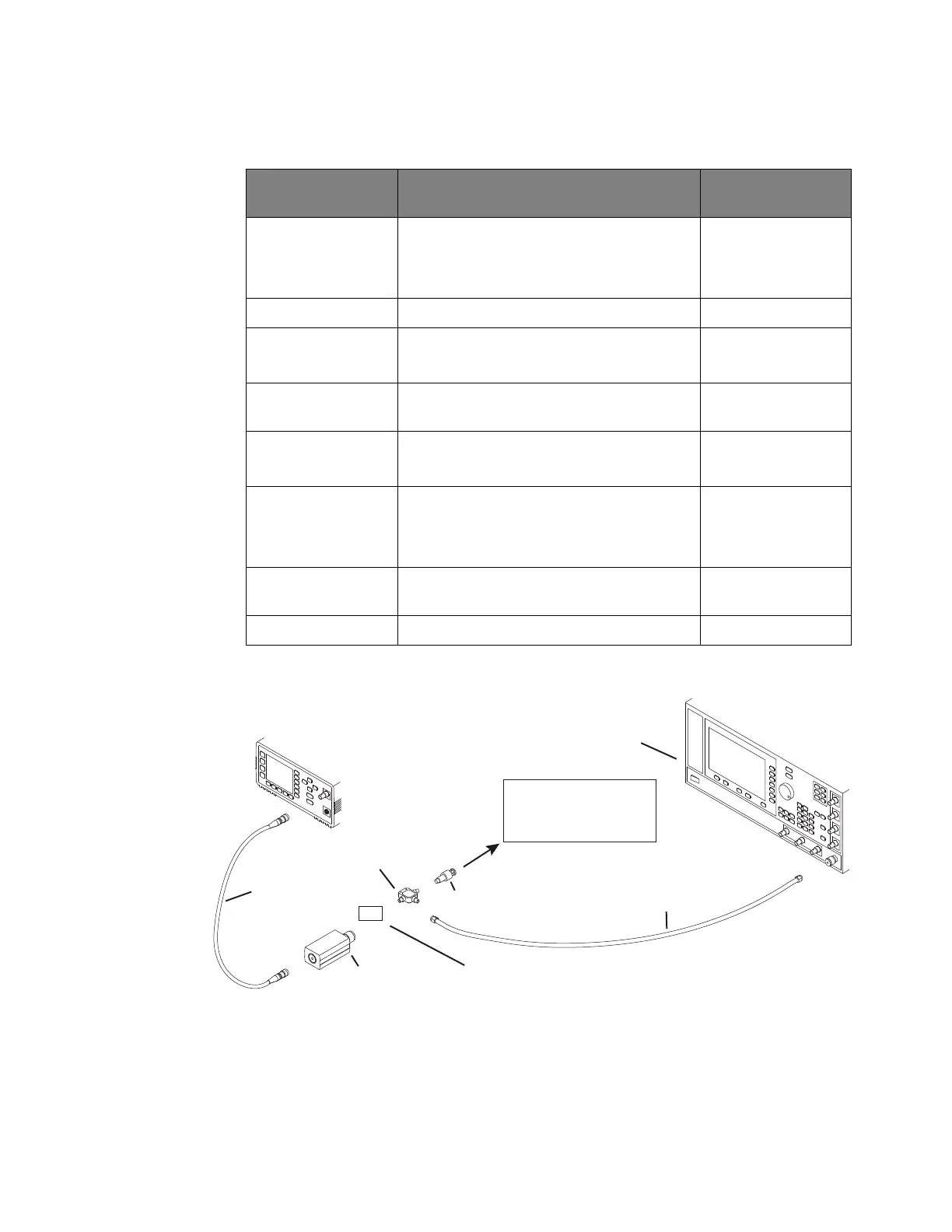

Equipment
Required
Connections
Description Critical specifications Recommended model
or part number
Microwave CW
Generator
Maximum Frequency ≥ 14 GHz
Power range: -20 dBm to +16 dBm into 50 Ω
Output resistance = 50 Ω
E8257D with Opt 520
Power Sensor Cable N1912-61020
Power Splitter 2 Resistor Power Splitter (f)
Max Frequency ≥18 GHz
11667B
Power Meter Keysight P-series with power sensor
compatibility
N1912A
Power Sensor Maximum Frequency ≥ 14 GHz
Power range: -24 dBm to +16 dBm
E4413A
Coaxial Cable 50 Ω Characteristic Impedance
3.5 mm (m) to 3.5 mm (m) SMA connectors
Max Frequency ≥ 8 GHz
8120-4948
N-Type to SMA
Adapter
N-type to 3.5 mm (m) SMA 1250-1750
SMA to BNC Adapter SMA (m) to Precision BNC (No Substitute) 1250-1200
Power meter
N1912A
Power sensor cable
Power splitter
11667B
Power sensor
SMA to BNC adapter
N-type to 3.5 mm SMA adapter (part not shown)
Coaxial cable
Microwave CW
Generator E8257D
MXR-Series oscilloscope
channel input
