Testing Performance 6
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 83

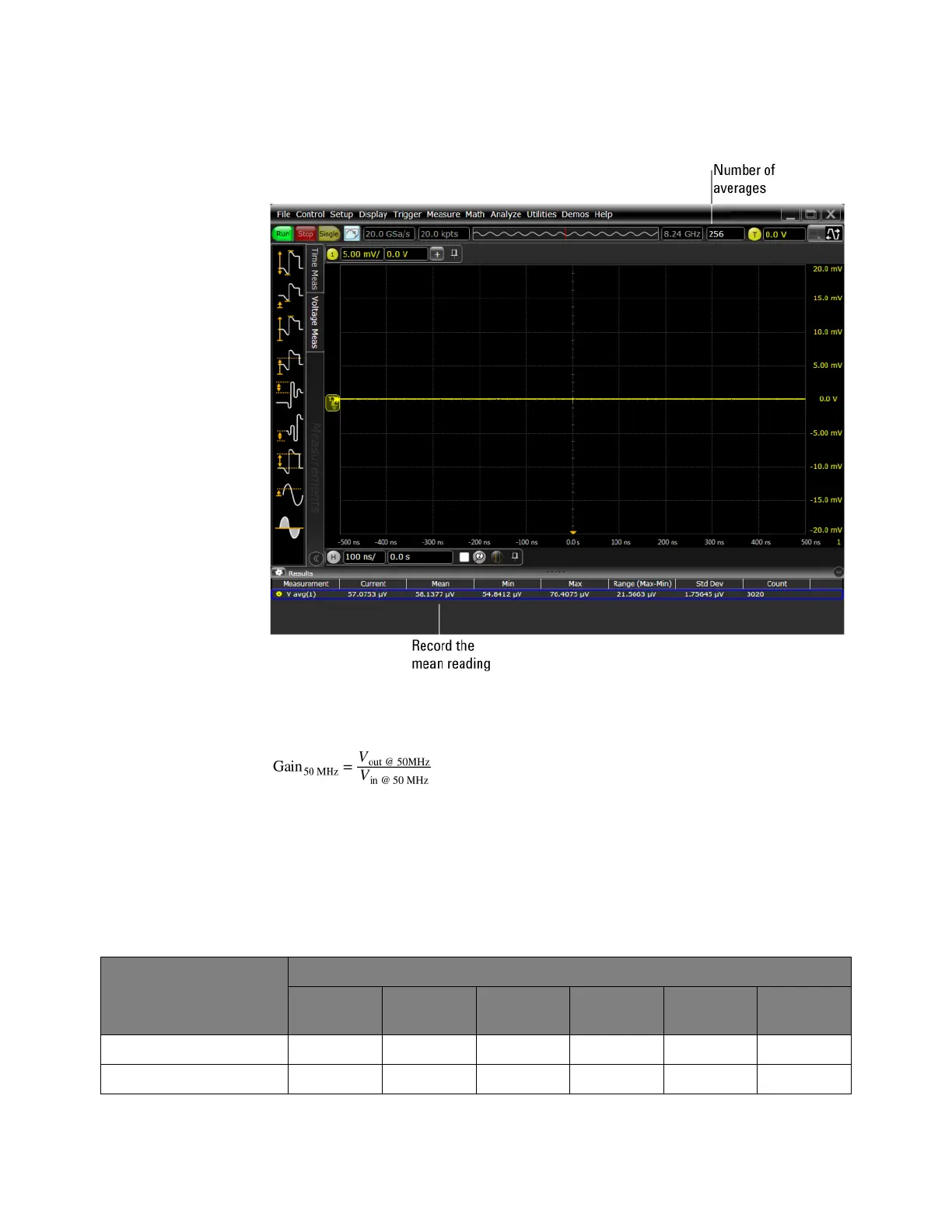

10 Calculate the reference gain as follows:
Record this value in the Calculated Gain @50 MHz column in Table 11 of the
Performance Test Record.
11 Change the generator frequency to the maximum value for the model being
tested as shown in the table below. It is not necessary to adjust the signal
amplitude at this point in the procedure.
Setting Model
MXR608A,
MXR604A
MXR408A,
MXR404A
MXR258A,
MXR254A
MXR208A,
MXR204A
MXR108A,
MXR104A
MXR058A,
MXR054A
Maximum Frequency 6 GHz 4 GHz 2.5 GHz 2 GHz 1 GHz 500 MHz
Scope Horizontal Scale 150 ps/div 200 ps/div 320 ps/div 400 ps/div 800 ps/div 1.6 ns/div
