Keysight Technologies Infiniium MXR404A User Manual

Testing Performance 6
Keysight Infiniium MXR-Series Real-Time Oscilloscopes User's Guide 87
Equipment
Required
Connections
Description Critical specifications Recommended model
or part number
Synthesized sine wave
source
Output Frequency: ≥ 10 MHz
Output Amplitude: 0 dBm
Frequency Resolution: 0.1 Hz
E8257D PSG w/opt.
520
10 MHz frequency
reference
Output Frequency: 10 MHz
Output Amplitude: 0 dBm to 10 dBm
Absolute Freq. accuracy: < ±1 ppb
GPS or equivalent
10 MHz reference
High-frequency cable
(provided)
50 ohm characteristic impedance 54609-61609
RF cable 50 ohm characteristic impedance
BNC (m) connectors
8120-1840
RF adapter APC 3.5 (f) to BNC (f) or equivalent
For example: APC 3.5 (f) to (f) plus SMA (m) to
BNC (f)
10 MHz from GPS or equivalent
reference connected to the 10 MHz IN
port on rear panel. Must be 0-10 dBm.
8120-1840 or equivalent
GPS or equivalent 10 MHz
Frequency Reference
Front
Rear

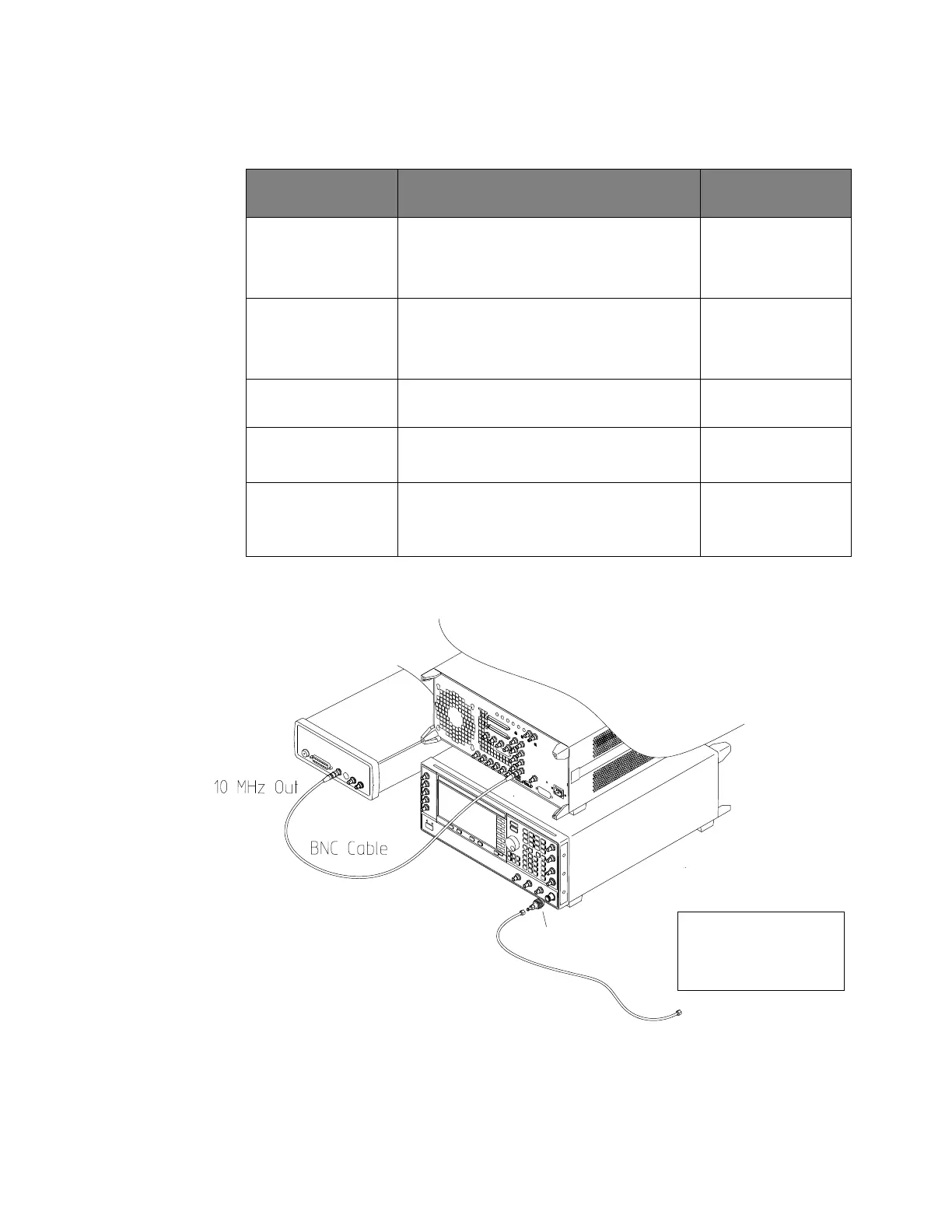

E8257D Sine Wave Source
RF Out
RF Input to channel 1
MXR-Series
channel 1 input
RF Adapter
54609-61609
