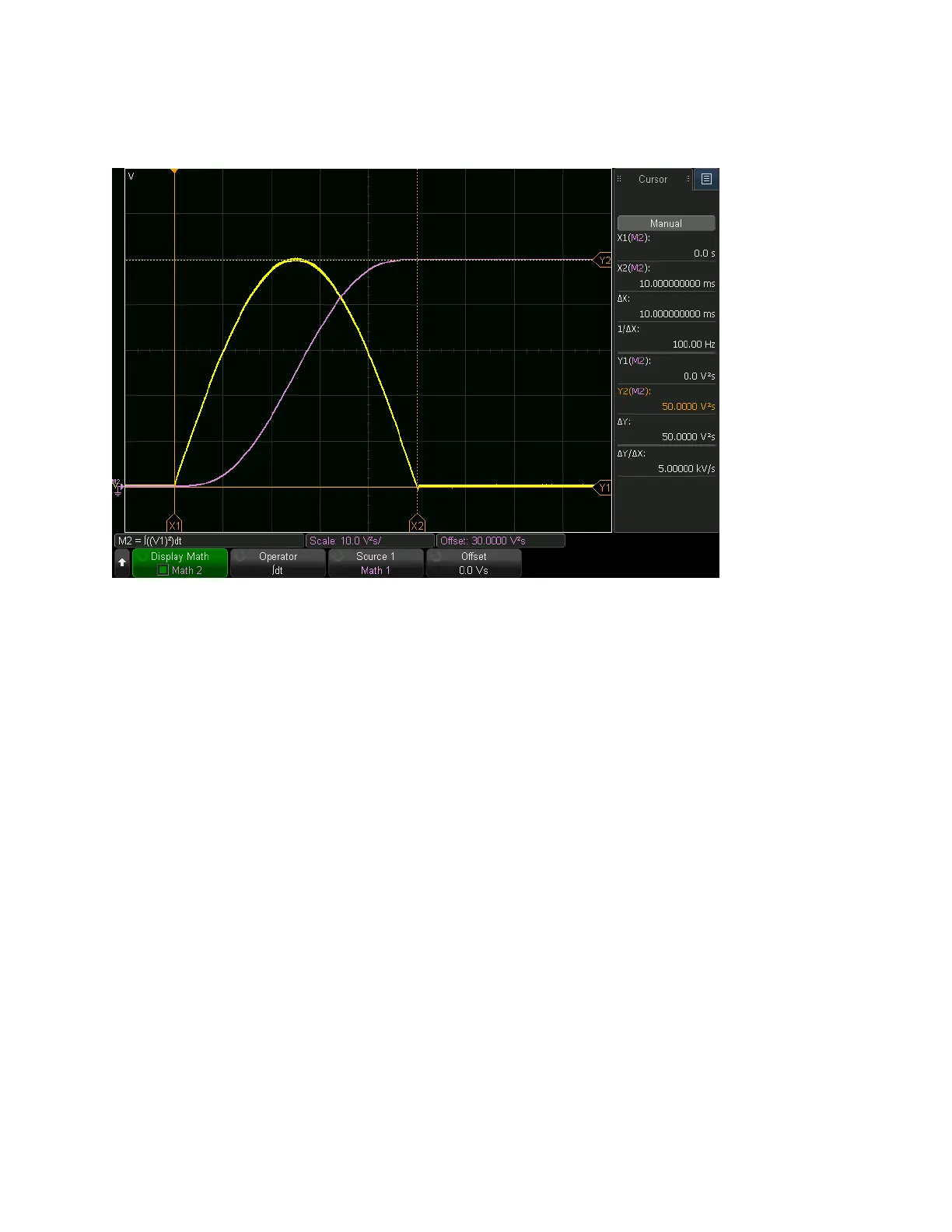

The following picture shows cursors measuring the square of a sinusoidal current pulse as part
of an I
2
t measurement. The purple line is the integral of the square of the current.
