Horizontal Controls

The horizontal controls include:

– The horizontal scale and position knobs

– The [Horiz] key for accessing the Horizontal Menu

– The zoom key - functionality reserved for future release

– The [Navigate] keys for navigating search events

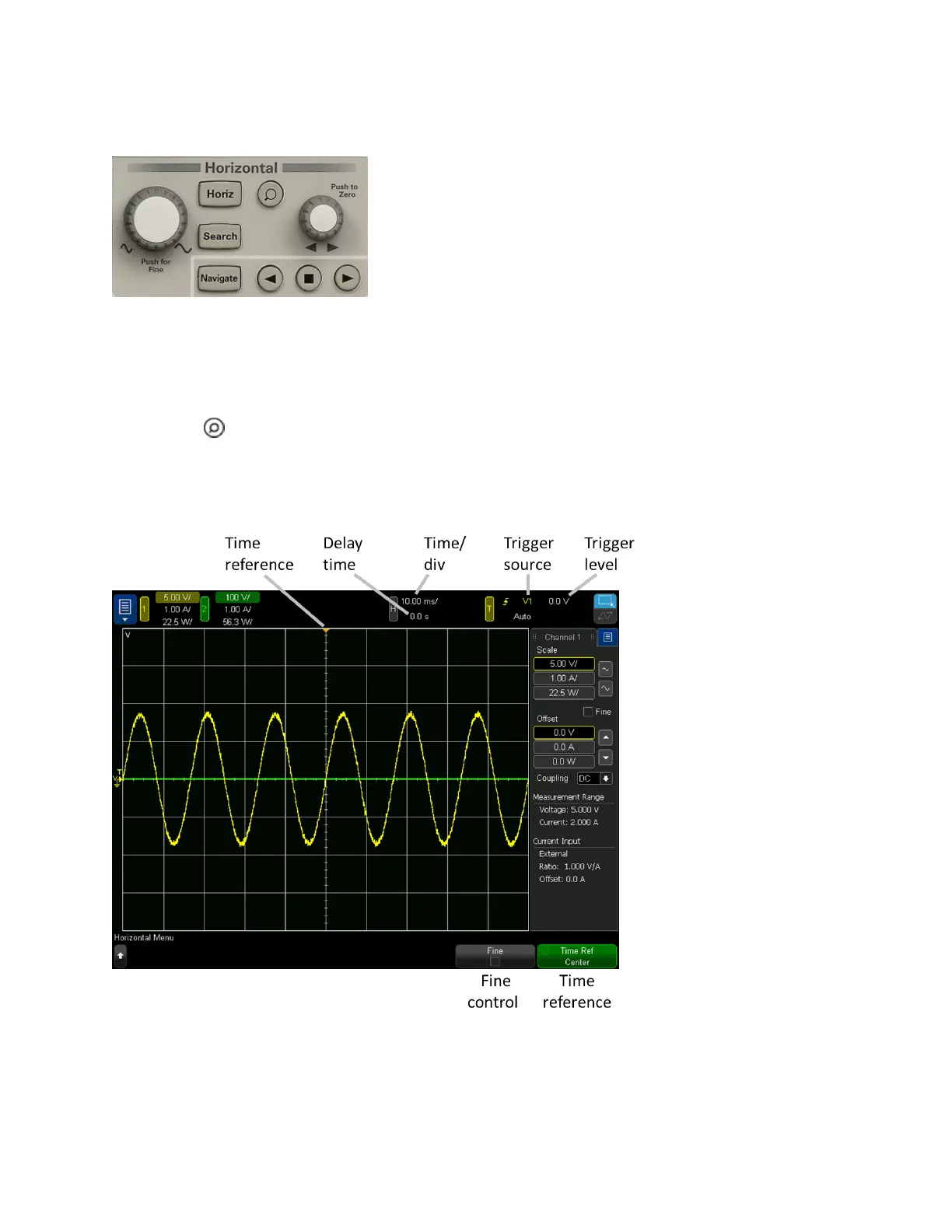

This figure shows the Horizontal Menu that appears after you press [Horiz].
