Square and Square Root
The Square and Square Root transforms operate on the selected source, point by point, and
display the result. Where the square root is undefined for a particular input, holes (zero values)
appear in the function output.
Press the Source softkey to select Squared or Square Root (√).
To use the Squared transform to calculate I
2
t
You can also calculate I
2
t using the [Analyze] key. For details, see I
2
t
One important use of the Squared function is to calculate I
2
t, an important measure in

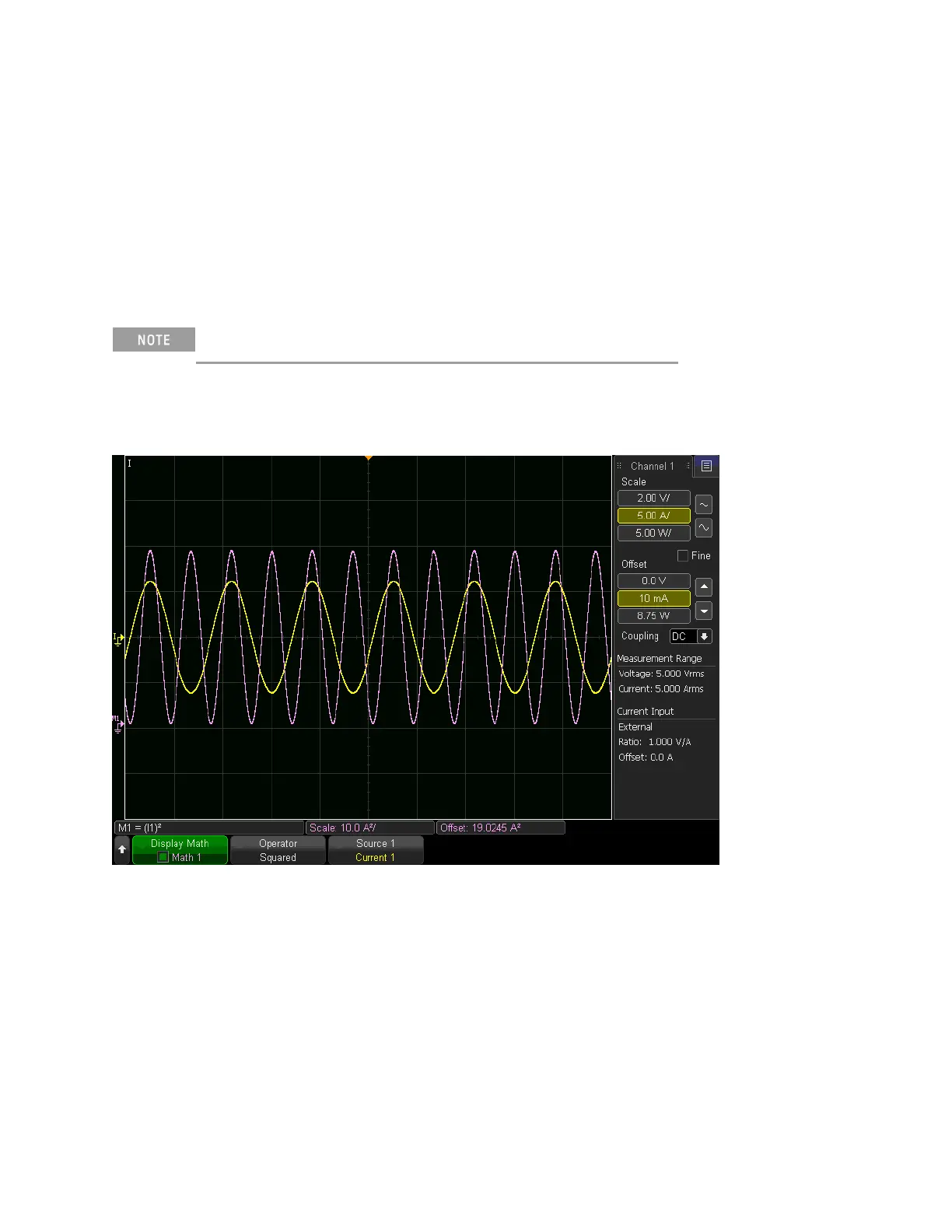

calculating heat generation. Begin by configuring Math 1 with a Current source and Squared as
the Operator, as shown below.
