Reference Waveforms

Voltage, current, power, and math waveforms can be saved to four nonvolatile reference

waveform locations, or to a USB drive. You can display one reference waveform at a time and

compare it against other waveforms. To scale and position the displayed reference waveform,

press [Ref] to light the LED to its left and use the knobs above and below the [Ref] key. You can

also adjust waveform skew, and you can optionally display scale, offset, and skew information.

To save a reference waveform

1. Press [Ref] >Display Ref. Turn the Entry knob to select a reference waveform location.

Then, either push the [Entry] knob or press Display Ref again.

2. Press Source and turn the [Entry] knob to select the source waveform.

3. Press Save to R1/R2/R3/R4 to save the waveform.

To clear a reference waveform

1. Press [Ref] >Display Ref. Turn the Entry knob to select a reference waveform location.

2. Press Clear R1/R2/R3/R4.

Reference waveforms are also cleared by a Factory Default.

To display a reference waveform and associated information

1. Press [Ref] >Display Ref. Turn the Entry knob to select a reference waveform location.

2. Press [Ref] to enable/disable the reference waveform display.

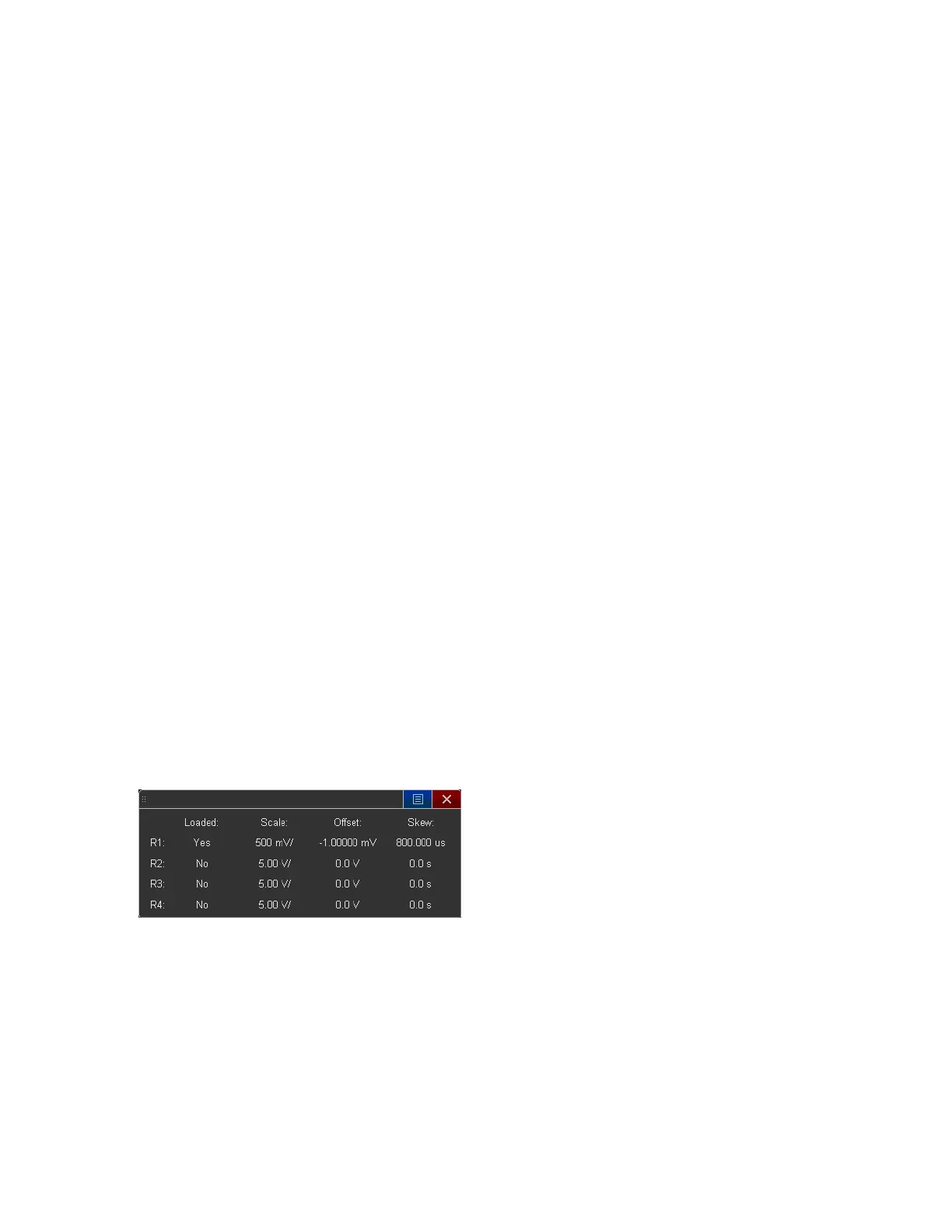

3. Press [Ref]>Display Info to display a box summarizing the reference waveforms.

To scale and offset a reference waveform

1. Make sure the scale and position knobs above and below the [Ref] key are selected for the

reference waveform. If the arrow to the left of the [Ref] key is not illuminated, press [Ref].

Upper (scale) and lower (position) knobs adjust the reference waveform.

156 Keysight IntegraVision PA2200 Series Power Analyzers Operating and Service Guide
