Channel Controls
Overview

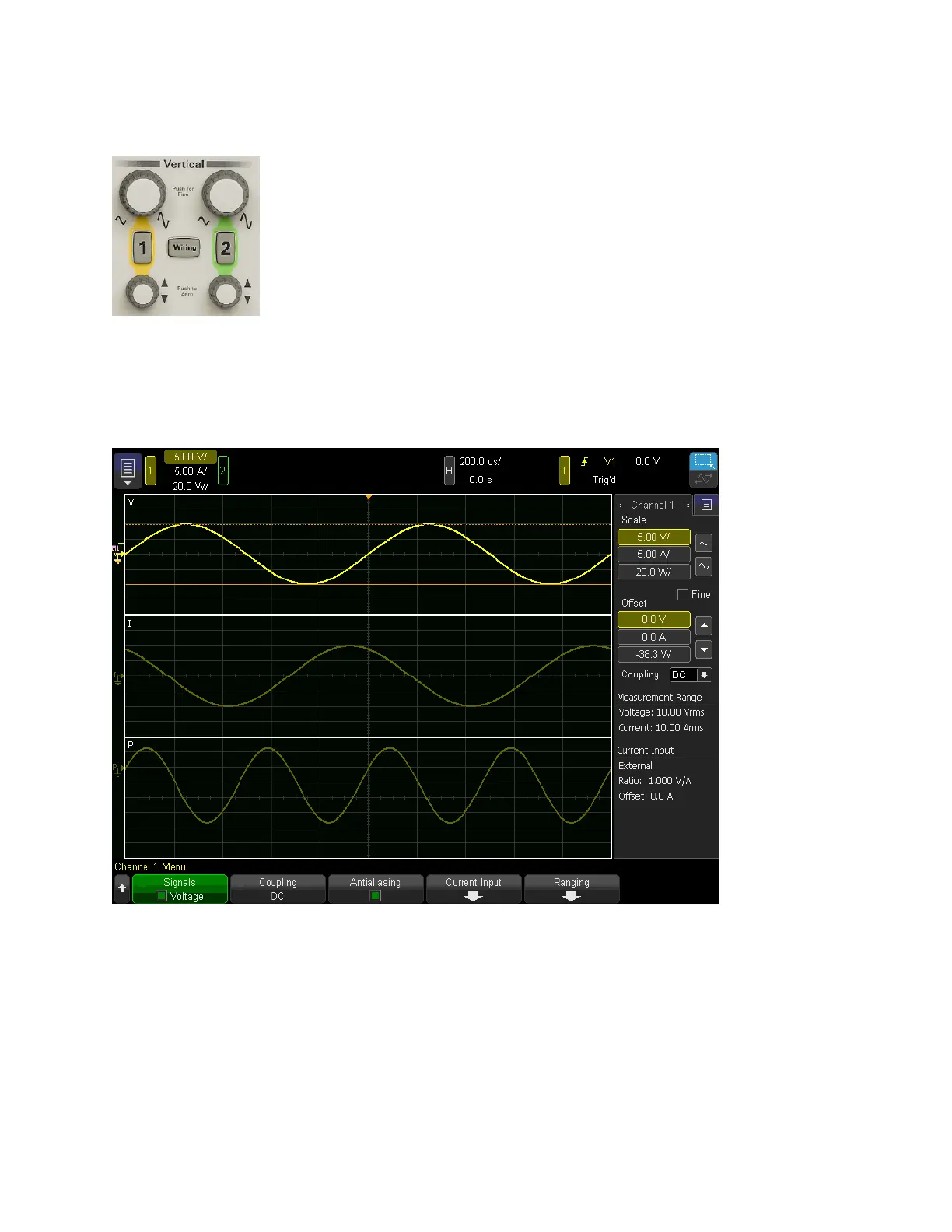

The [1] and [2] keys (the PA2203A also has [3] and [4] keys) enable channels and open the
channel menus (channel 1 shown below); the knobs set the channels' vertical scale and position.
The ground level of the signal for each displayed signal is identified by the position of the icon at
the far left side of the display.
46 Keysight IntegraVision PA2200 Series Power Analyzers Operating and Service Guide
