Harmonics

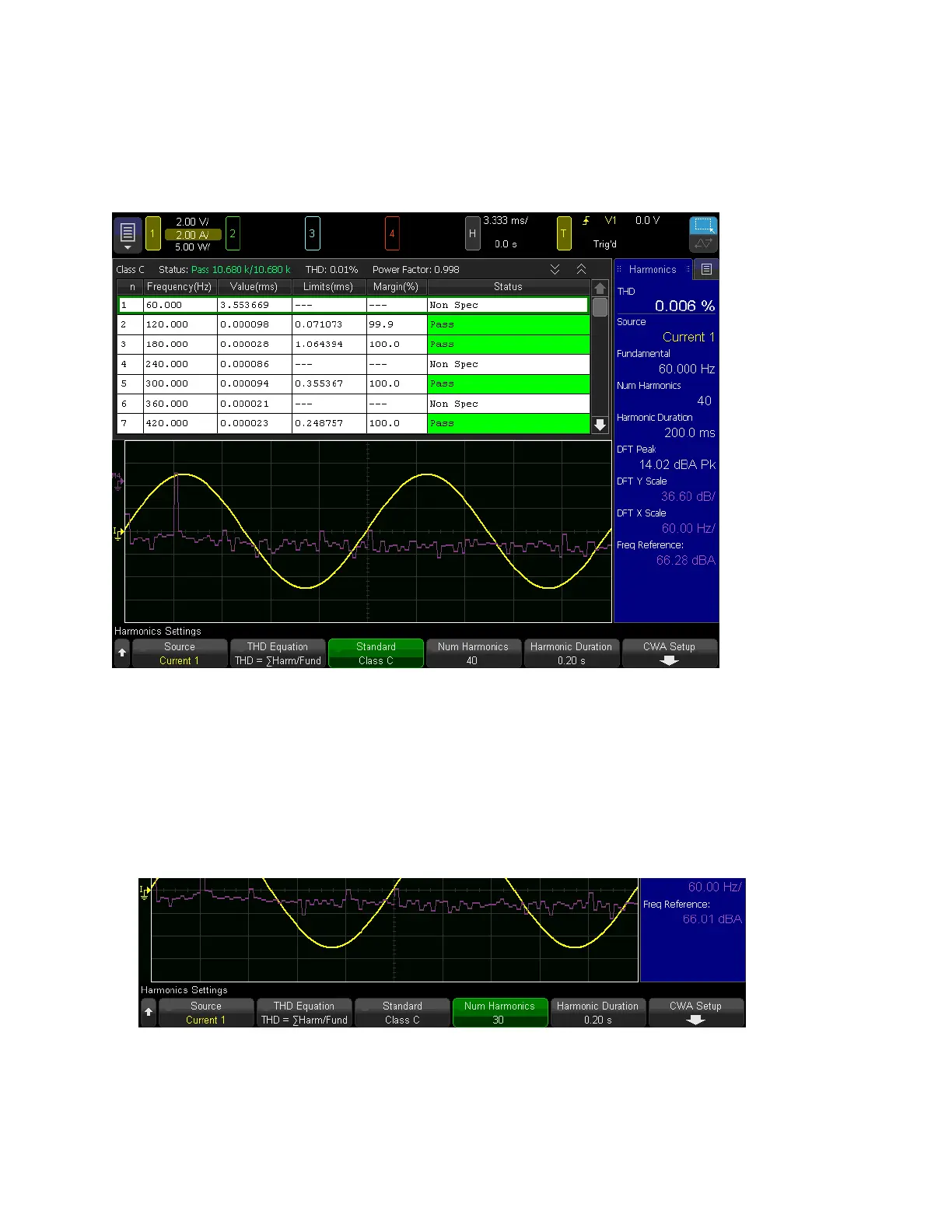

The Harmonics analysis measures total harmonic distortion (THD) and the RMS values of
multiple harmonics of a fundamental frequency.
To configure Harmonics analysis:
1. Press the Source softkey and choose the source to analyze.
2. Press the Fundamental softkey and specify the fundamental frequency.
3. Press the Settings softkey and use the softkeys to specify the number of harmonics to
measure and the time period (Harmonic Duration) over which to measure the harmonics, as
shown below.
128 Keysight IntegraVision PA2200 Series Power Analyzers Operating and Service Guide
