98 Keysight PXIe Chassis Family User Guide
Configuring the PXI Trigger Bus Front Panel Trigger Port Configuration Guidelines
When Trig 1 is configured as Input, you can select the set of PXI_TRIG[0:7] lines
that receive the incoming signal. This set can include all the PXI_TRIG[0] through
PXI_TRIG[7] on both Segments 2 and 3. The following figure shows a portion of
the SFP Trigger Ports tab, where the configuration of front panel Trig 1 goes to
all possible locations:

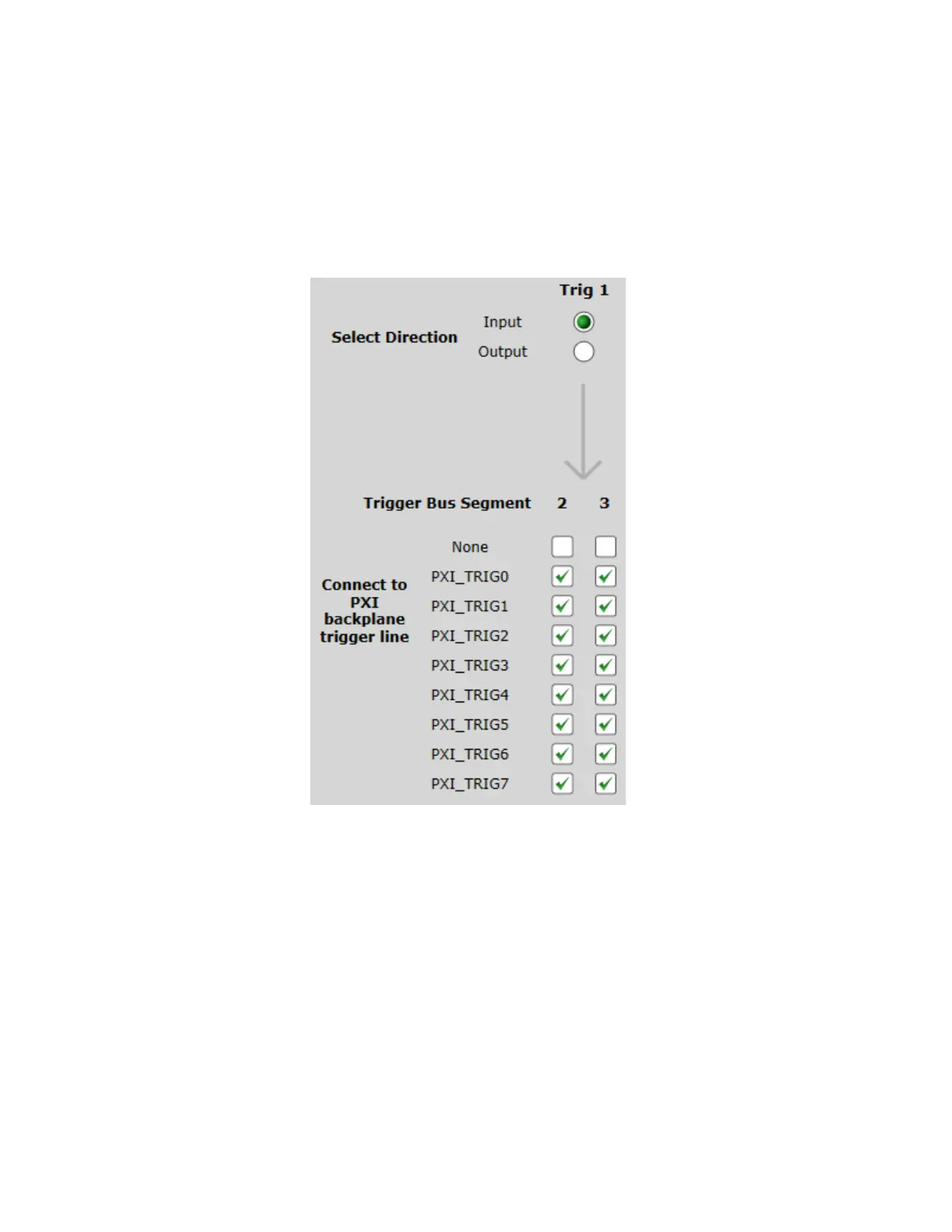

Figure 48 M9019A SFP example Trig 1 connected to all PXI_TRIG lines on Segments 2 and 3.
