Power On and Check
1 Connect the AC power cord into the instrument. Insert the
plug into a power socket provided with a protective ground.
Set the tilt adjustors for your preference.

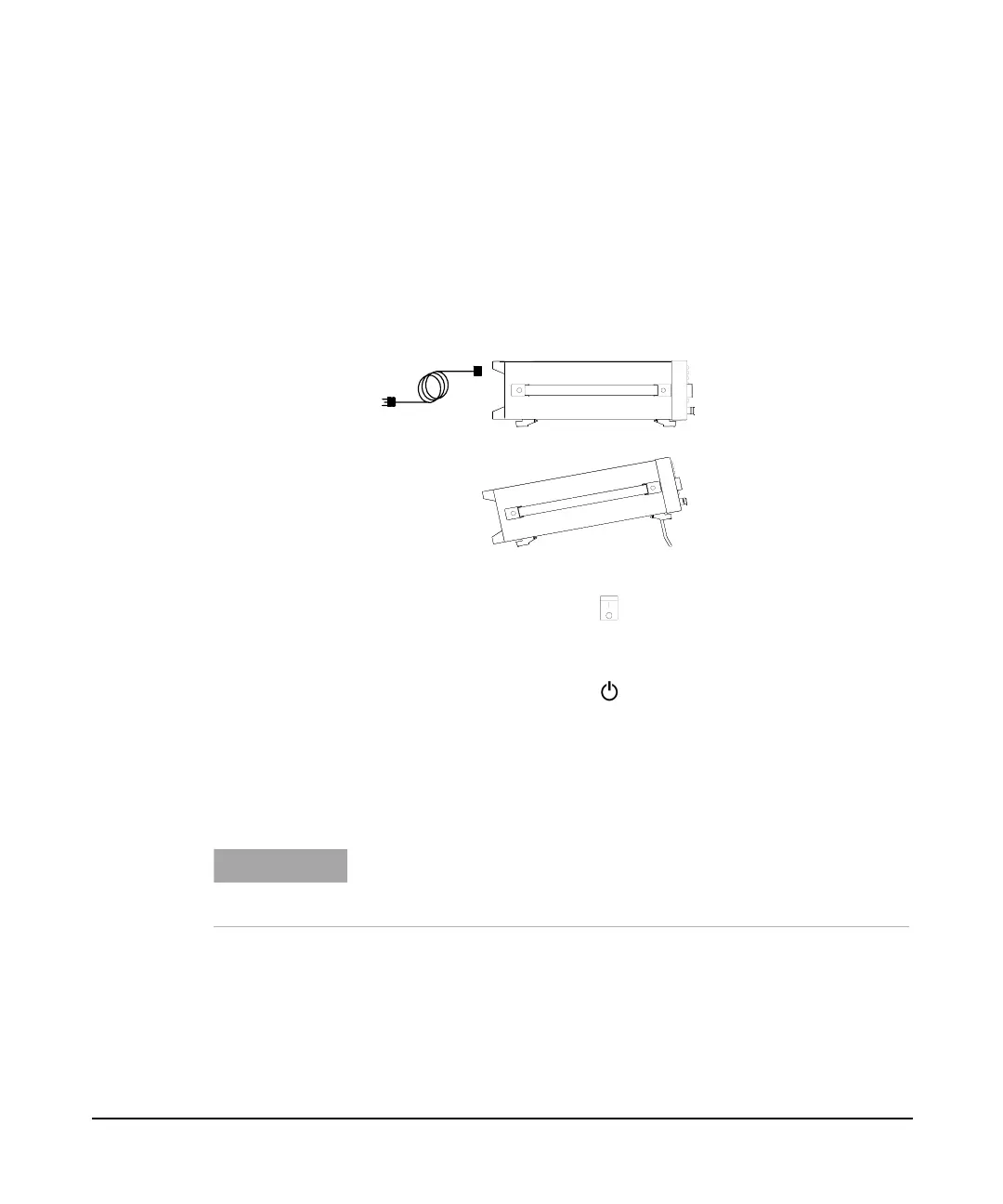

Figure 1 Plug in and angle adjustment
2 Press the AC line switch on the rear panel. The standby
LED on the front panel will light and the spectrum analyzer
is in standby mode (AC power applied).
3 Press the standby switch on the front panel. The On LED
will light, and the spectrum analyzer boots up.
Self- initialization takes about 25 seconds; the spectrum
analyzer then defaults to the menu mode. After power on,
let the spectrum analyzer warm up for 45 minutes for
stabilization.
NOTE
The front panel switch is a standby switch only; it is not a power
switch. To completely disconnect the spectrum analyzer from the AC
line power, shut off the power switch on the rear panel.
