Functions and Measurements
Channel Scanner
64
Channel Scanner
The channel scanner - option SCN is a tool for coverage test,
band clearance, and spectrum monitoring. It measures the
channel power of multiple transmitted channels. The power
is displayed via either the graphic bar chart or time bar
chart. It allows you to set maximum 20 channels for your
test. You can continuously log the scanned channel data as
CSV file for post processing on your PC.
Top/Bottom N Channel Scanner
Top/Bottom N channel scan is used for searching the
top/bottom channels from specified channel range according
channel power.

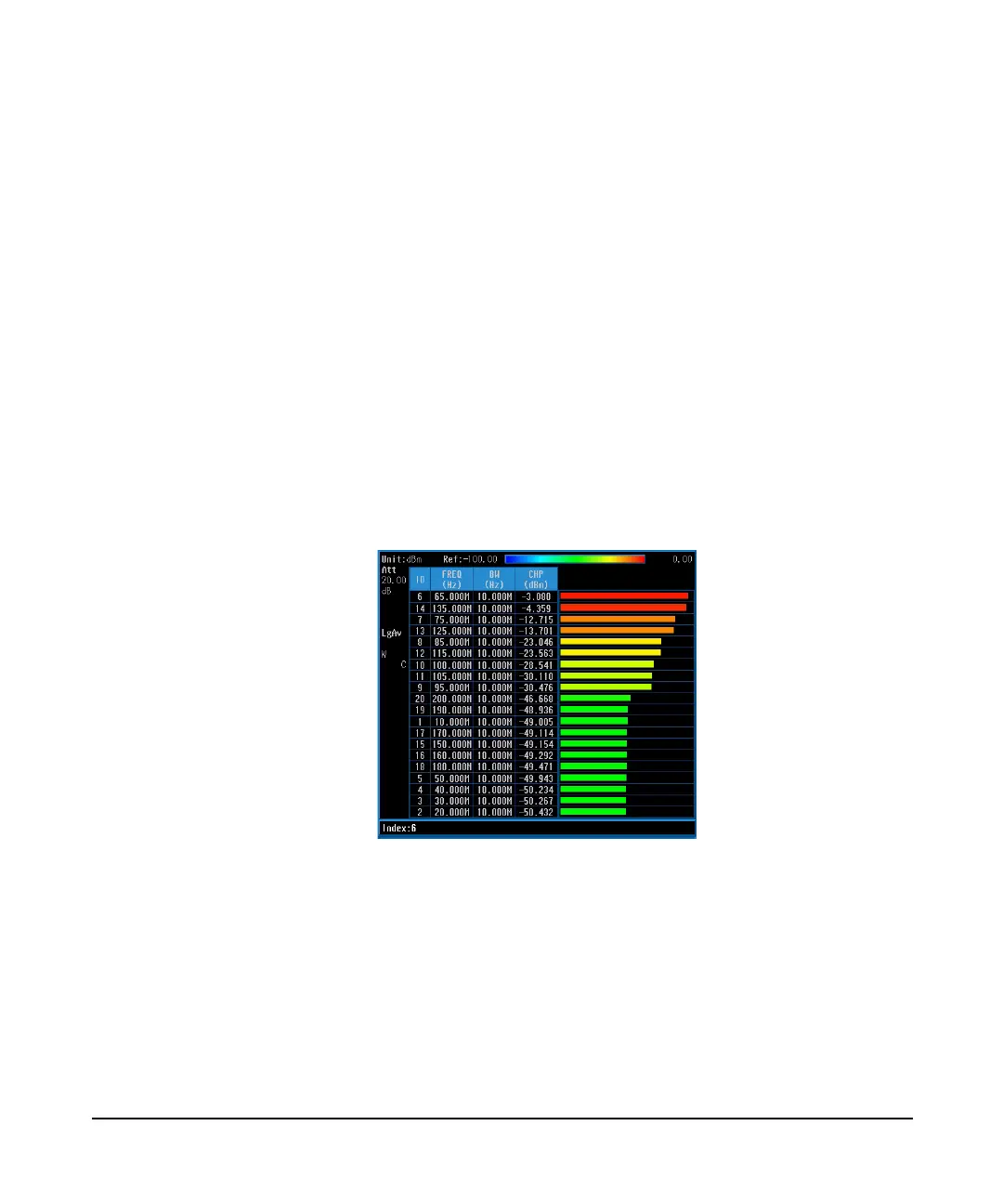

Figure 3-22 Top N Channel Scanner Measurement
Please refer to the procedures below to perform a Top N
channel scanner measurement.
1 Connect the antenna to RF IN connector.
2 Turn on the channel scanner function.
Press Meas > Channel Scanner
