Functions and Measurements
Making a Power Measurement with USB Power Sensor
80
The analyzer provide the customer preset function with
U2020 X- series power sensor. Press Meas > Preset and the
predefined protocol list will pop up. Select the wanted item
and press Preset as a terminator. The related settings will be
set automatically.

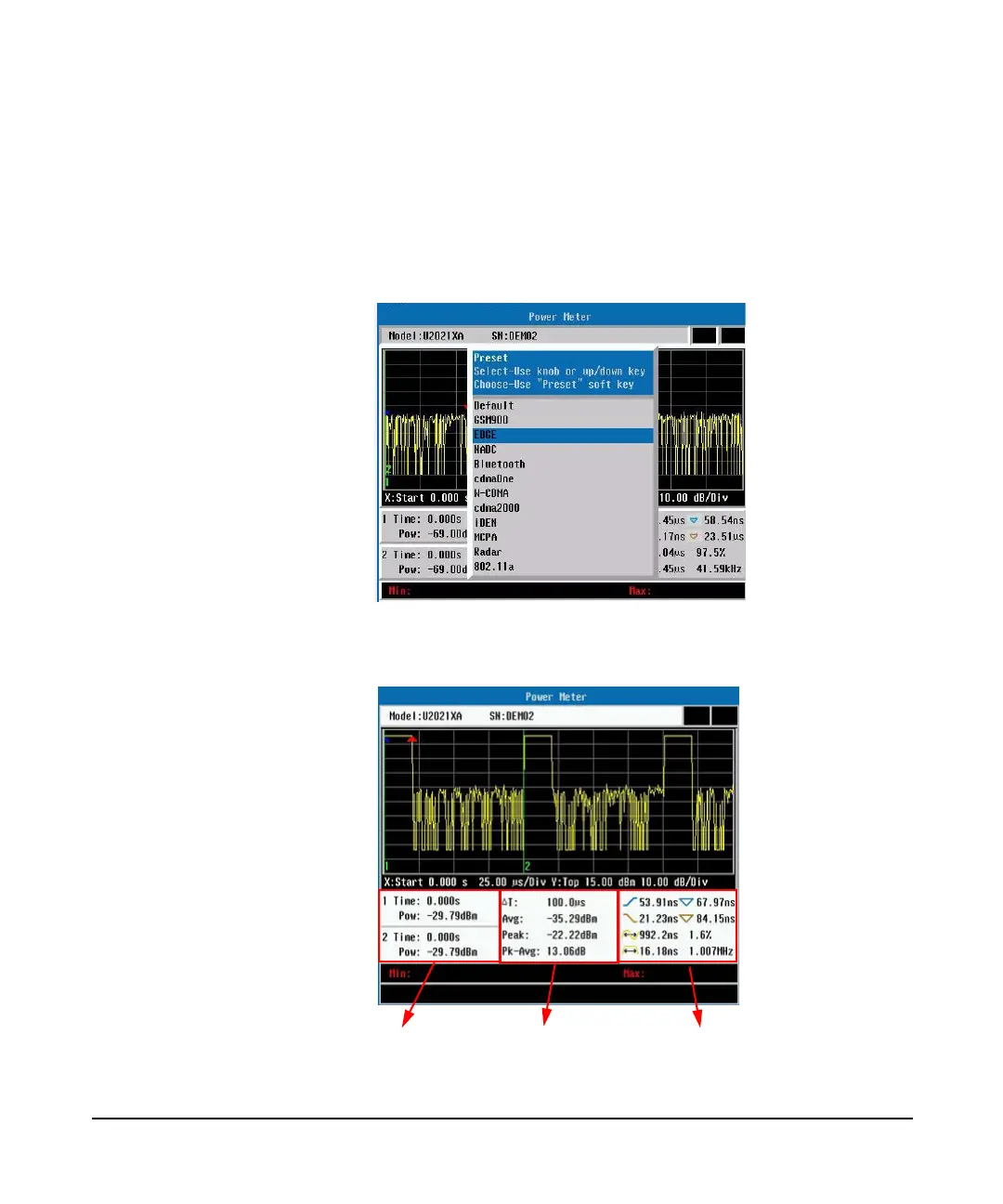

Figure 3-27 Customized Preset the U2020 Power Sensor
4 Press Meas Disp > Disp Mode > Trace to find the measurement
results as
Figure 3-28 below.
Figure 3-28 Peak Power Measurement
Marker Readings
Gate Results Pulse Parameter Results
