Functions and Measurements
Analysis the Modulated Signals
88
5 Press Shift > Disp > Y Scale > Scale Coupling On to set the Y
scale auto coupling.
6 Set the AM depth limit and turn on the limit function:
Press Shift > Limit > AM Depth UP > 51 > % > AM Depth Low > 49
> % > Limits on
The red value in the result indicates the demodulated AM
depth exceeds the limits set as above.

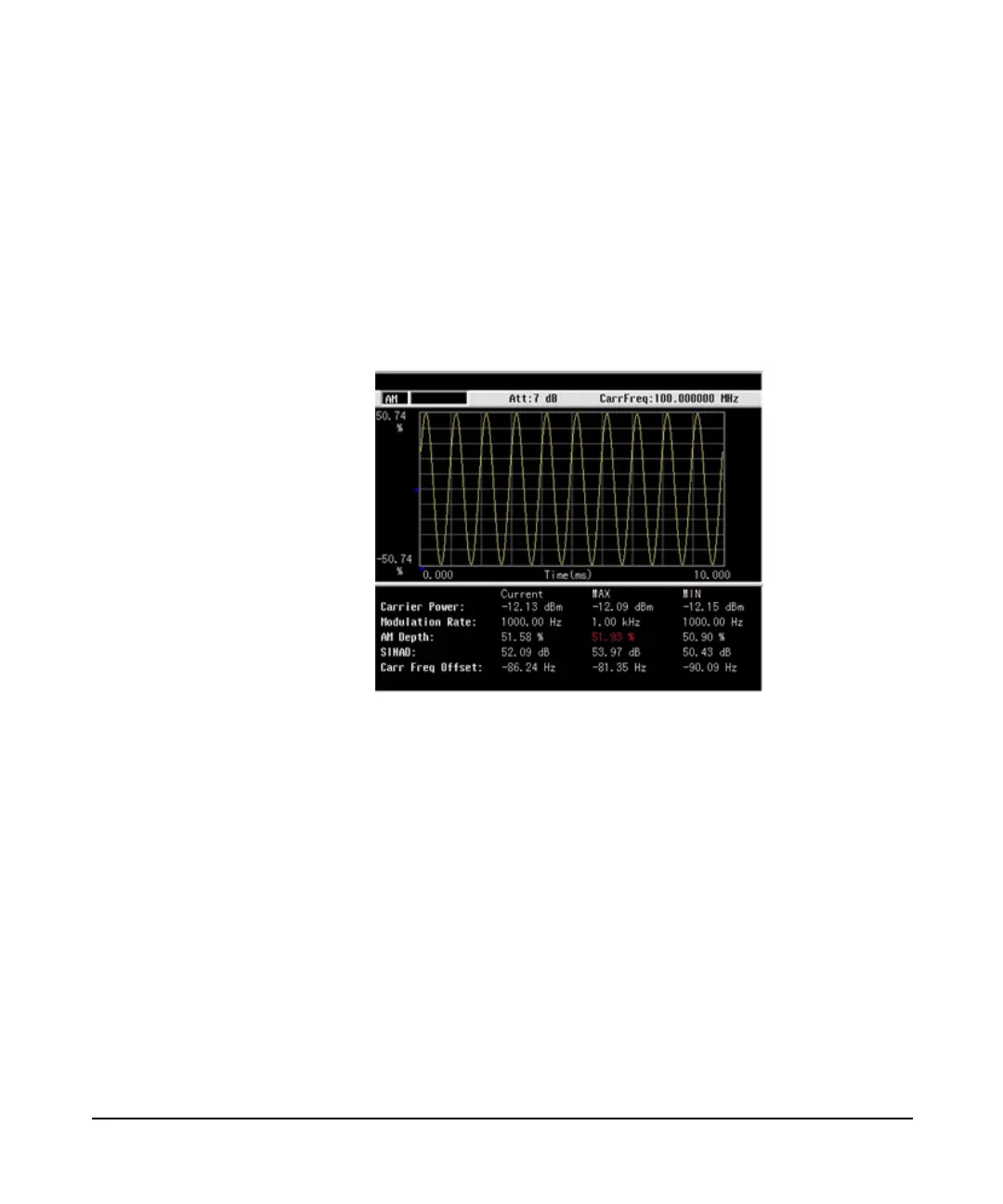

Figure 3-29 AM demodulation analysis
FM Modulation Analysis
Please refer to the procedures below for the FM modulation
analysis:
1 Connect the signal generator to RF IN connector and turn
on the signal generator’s FM and RF output.
2 Turn on the FM demodulation analysis function.
Press MODE > Modulation Analysis > AM.
3 Press Frequency > Carrier Freq > 100 > MHz to set the carrier
frequency.
4 Set the attenuation state to Auto (default):
Press Amplitude > Attenuation Auto
