Keysight N8973B User Manual

468 Keysight NFA Series Noise Figure Analyzers Service Guide
Assembly Replacement Procedures
Front Frame Assembly
Keyboard/Keypad
1. Refer to Figure 15-61. Remove the RPG knob by carefully pulling it off the
shaft. To remove the keyboard (1), remove the eight screws (2)
(0515-0430). When replacing the keyboard into the front frame, torque the
screws to 9 inch-pounds. Replace the RPG knob by firmly pushing it onto
the shaft.

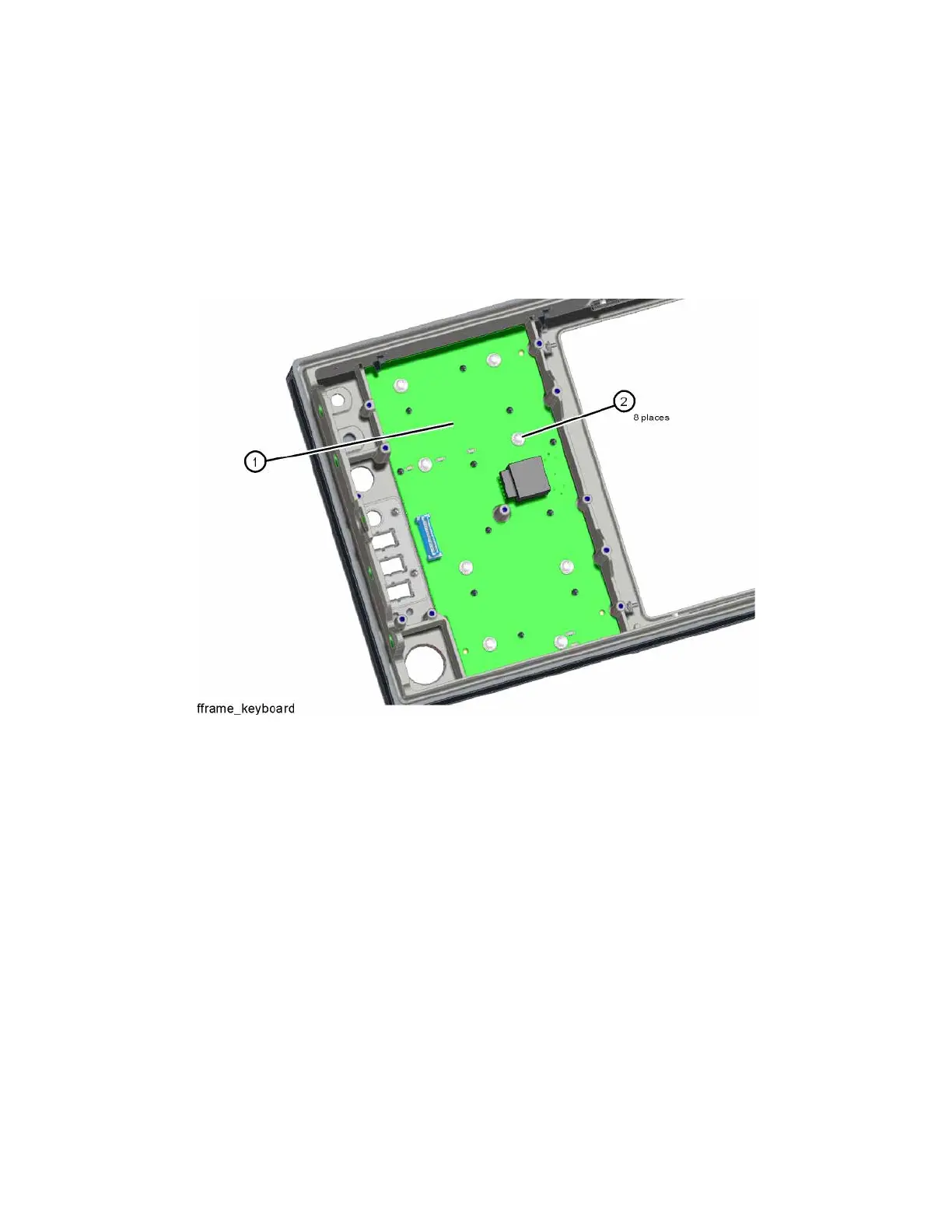

Figure 15-61 Keyboard

Keysight N8973B Specifications

General

Brand	Keysight
Model	N8973B
Category	Measuring Instruments
Language	English
