Maintenance
528

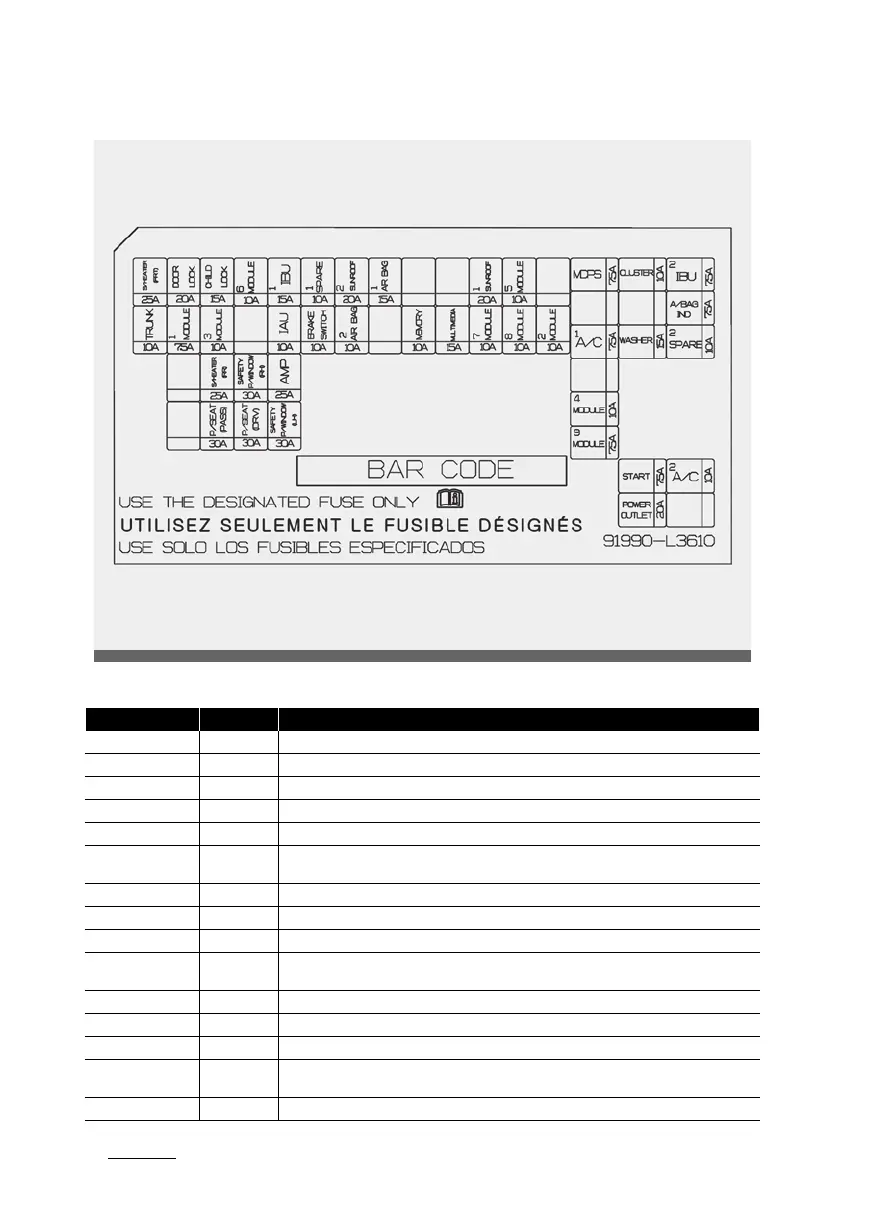

Fuses
Refer to the following table for a description of the fuse.
Fuse Name Fuse rating Circuit Protected
S/HEATER (FRT) 25A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
TRUNK 10A Trunk Lid Relay
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Two Turn Unlock Relay
MODULE1 7.5A Front Console Switch #1, Key Solenoid, Driver/Passenger Smart Key Outside Handle
CHILD LOCK 15A Rear Child Lock Relay, Rear Child Unlock Relay
MODULE3 10A
Hazard Switch, Front Mood Lamp Right Handle side, Front Mood Lamp Unit, Driver Door
Module, Driver/Passenger Door Mood Lamp
S/HEATER (RR) 25A Rear Seat Warmer Control Module
P/SEAT (PASS) 30A Passenger Seat Manual Switch
MODULE6 10A Sport Mode Switch, Driver Door Module
SAFETY P/WINDOW
(RH)
30A
Passenger Power Window Switch, Passenger Safety Power Window Module, Rear Power
Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side
P/SEAT (DRV) 30A Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
IBU1 15A Ignition Switch, IBU (Integrated Body Control Unit)
AMP 25A DC-DC Converter (AMP (Amplifier)), AMP (Amplifier)
SAFETY P/WINDOW
(LH)
30A
Driver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear
Safety Power Window Module Left Handle side
SPARE1 15A Not Used
To Next Page
