Multi-
function
output
terminal
Bi-direction
open-collector
output
Can be defined as multi-function digital
output terminal , refer to the A6.14 for
detail (Com port： COM)
Optocoupler isolation output
Maximum working voltage：
30v
Maximum output current：
50mA
Providing +24V power for others
Maximum output current：
200mA
Common port of
multi-function
input
Common port of Multi-function input
(Short cut with 24V in default)
Common port of X1~X6, PLC
is isolated from 24V internally
Common port of
24V power
supply
Three common ports in all, cooperate
with other terminals
COM is isolated from
COM and GND inside the
drive
Can be defined as multi-function relay
output terminal(Refer to the A6.16 for
detail)
R1a-R1b：Normally closed，
R1a-R1c：normally open
Contact capacity：
AC250V/2A（COSΦ＝1）
AC250V/1A（COSΦ＝0.4）
DC30V/1A
Input voltage for overvoltage
class of relay output terminal
is overvoltage class II
Wiring of analog input
AI1, AI2 can be connected to analog voltage or current single-ended input. Use a jumper can select AI1 as
Voltage model and AI2 as current mode. The wiring is as follows：

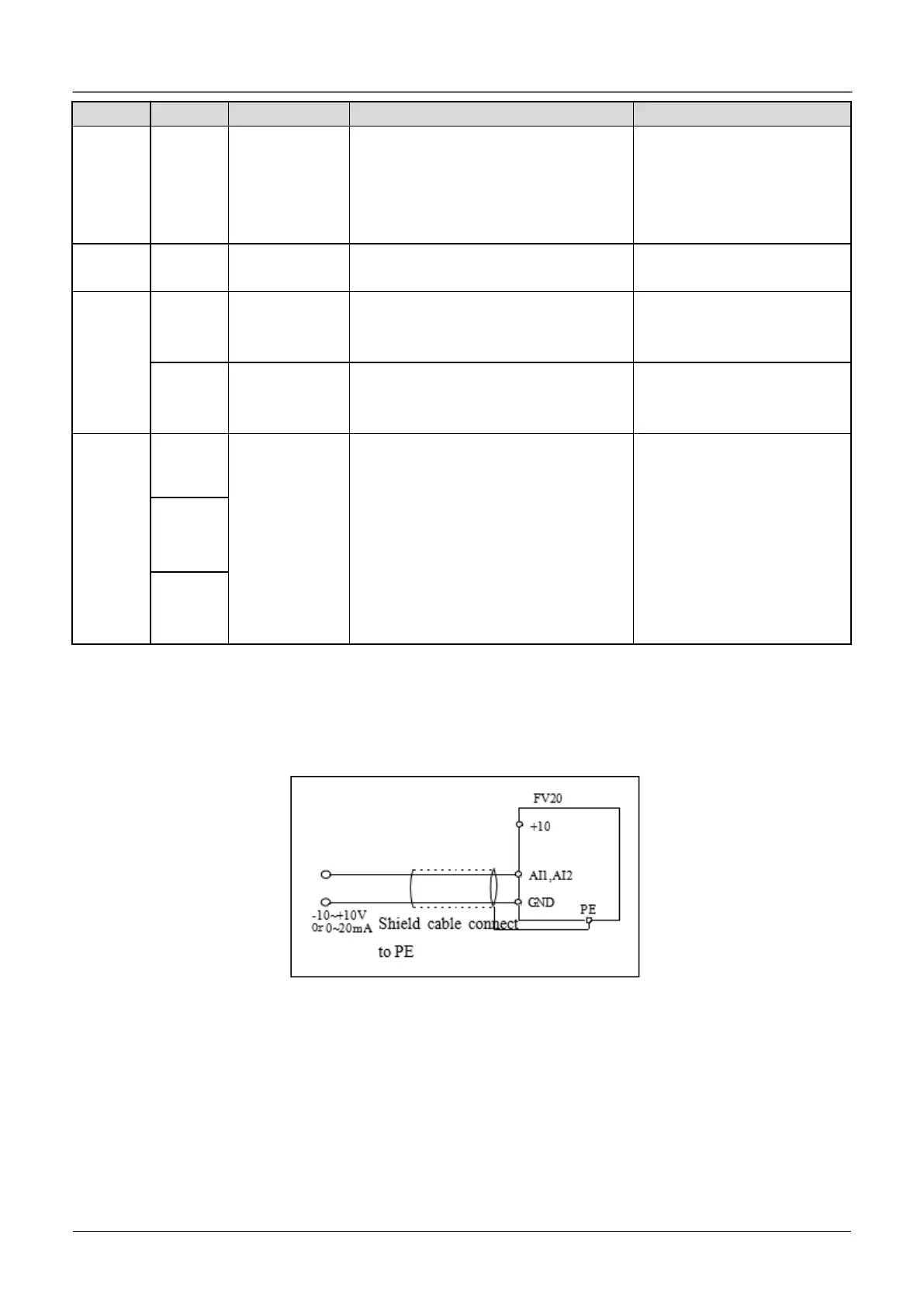

Fig 4-3 AI1，AI2 terminal wiring
Wiring of analog output terminal
If the analog output terminals AO1 and AO2 are connected to analog meters, then various kinds of physical
values can be measured. The jumper can select current output (0/4~20mA) or voltage output (0/2~10V). The
wiring is as follows：
