EPISENSOR USER GUIDE 23
Table 2: Range/sensitivity calculations
Full-scale
range
Single-ended
" 2.5V output
Single-ended
" 10V output
Differential
" 5V output
Differential
" 20V output
1/4g 10 V/g 40 V/g 20 V/g 80 V/g
1/2g 5 V/g 20 V/g 10 V/g 40 V/g
1g 2.5 V/g 10 V/g 5 V/g 20 V/g
2g 1.25 V/g 5 V/g 2.5 V/g 10 V/g
4g 0.625 V/g 2.5 V/g 1.25 V/g 5 V/g
Voltage values stated are as measured across each channel’s output pins.
L-M, A-B, C-D for axes X, Y, and Z respectively. Pins L, A, and C are (+)
and pins M, B, and D are either (-) or ground depending on whether
configured for a differential or single-ended connection to the recorder.
For best performance, a differential connection to the recorder should be
used if the recorder supports differential input connections.

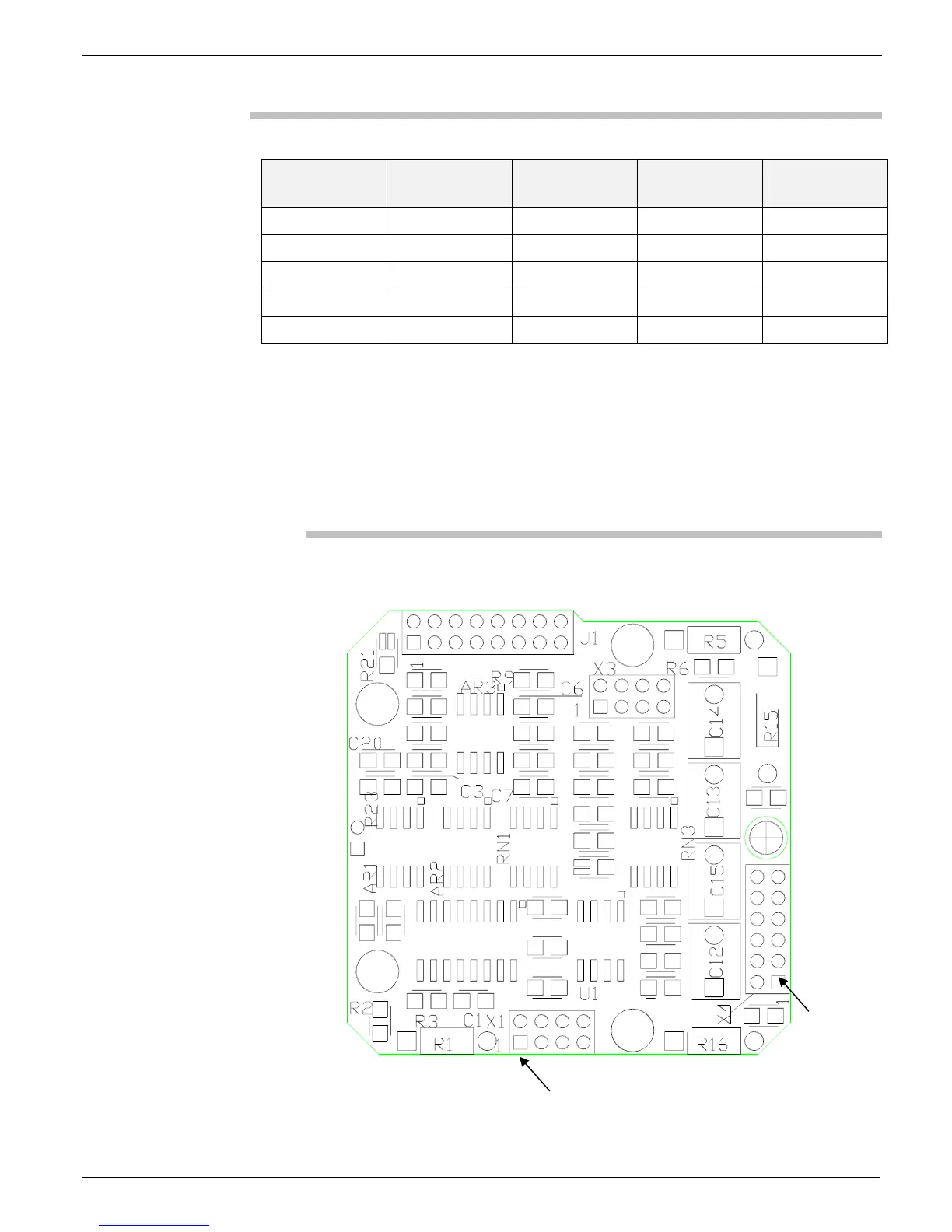

Figure 13: Feedback board
