Note: The 1"-wide foil tape must be in tight contact with the 3/8"-wide
foil tape.

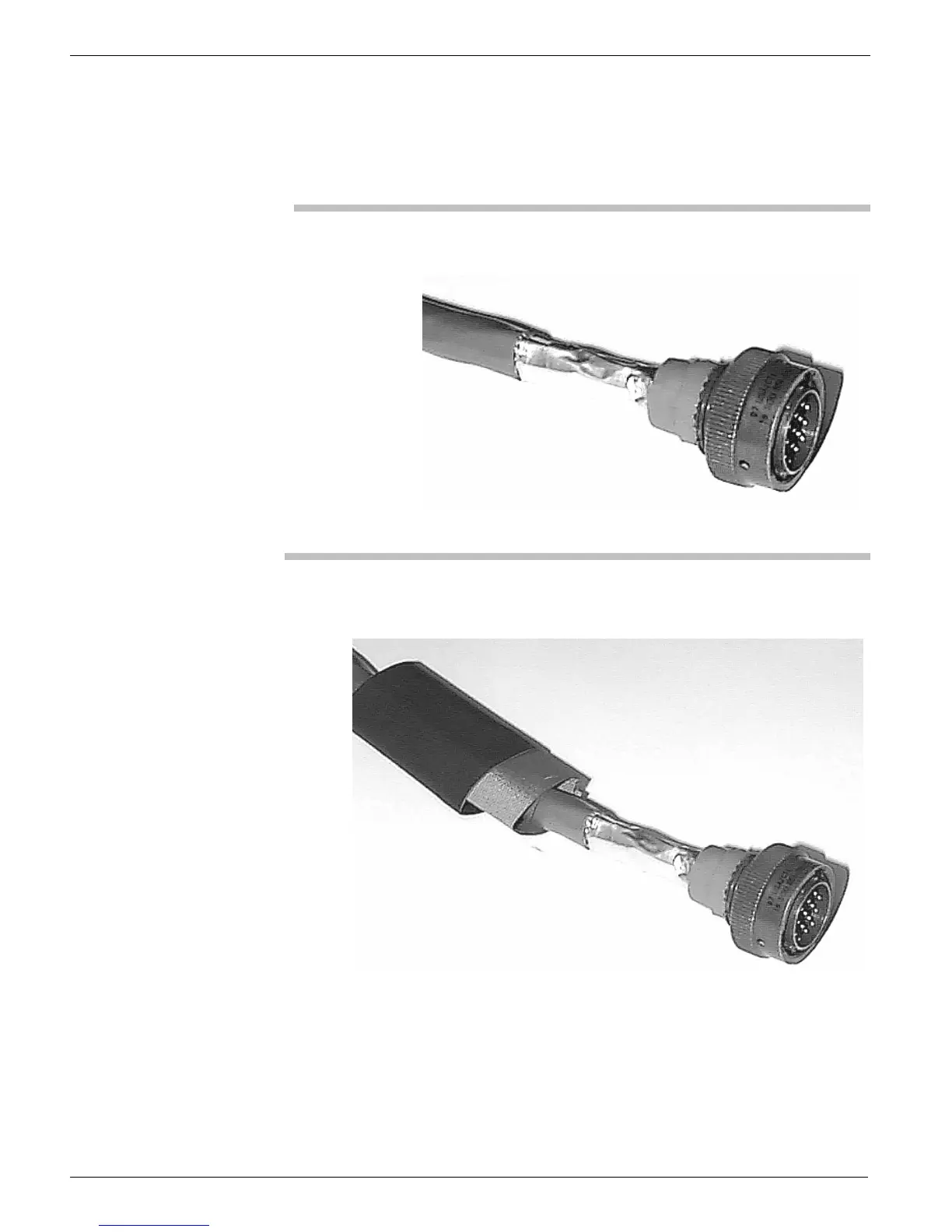

Figure 41: Wrapping foil tape around outside of the connection
Figure 42: Cable with Shrink-n-Shield tubing (outer tubing trimmed
back to show screen mesh)
Slide the Shrink-n-Shield tubing up over the grommet. Then position it
carefully, so it covers up to – but does not overlap – the connector threads
(as shown in Figure 43).
