56 EPISENSOR USER GUIDE
3. Spread the shielded pairs of wire outward from the center rope

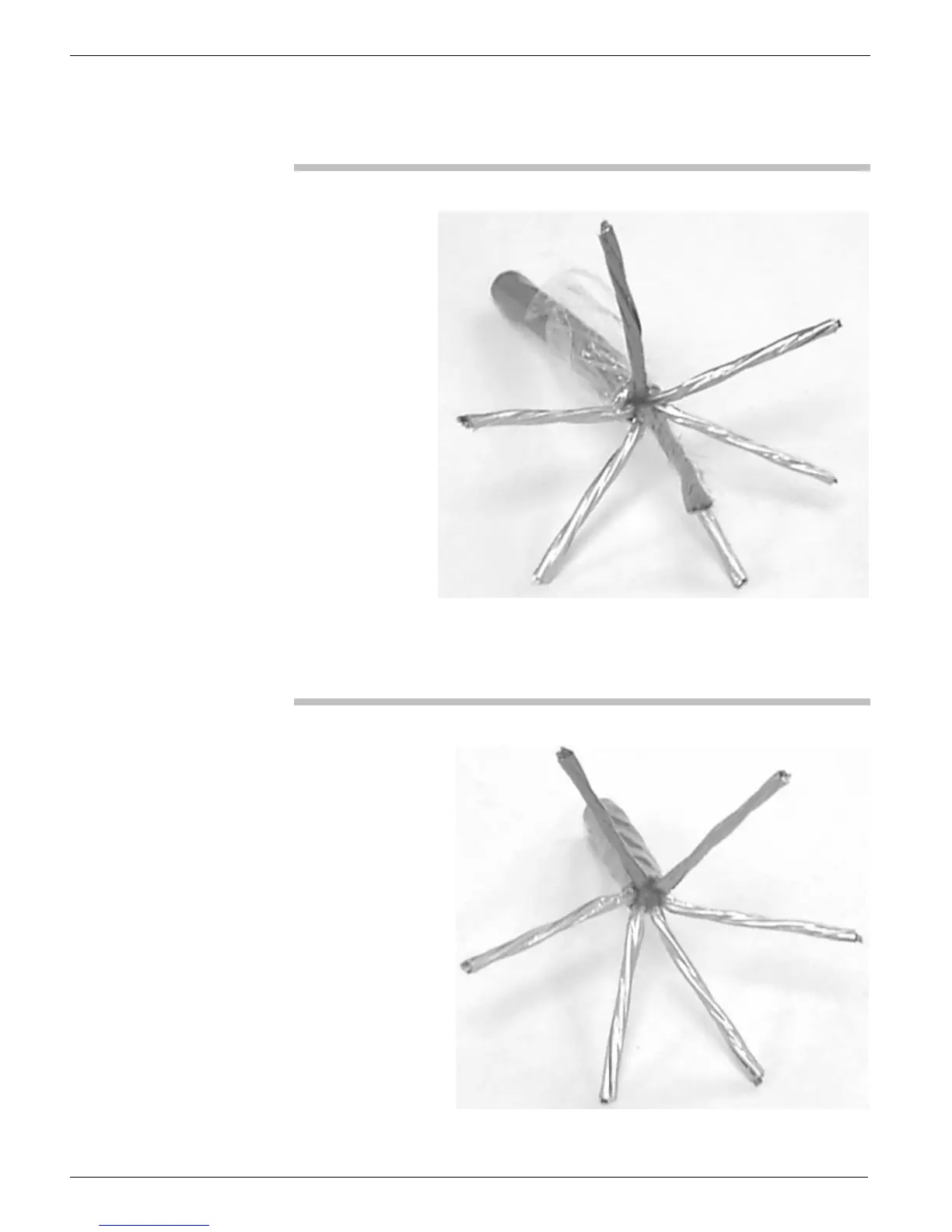

cord, as shown in Figure 24.
Figure 24: Recorder cable end with outer PVC jacket removed
4. Cut off and discard the center rope, cellophane and white string.
Cut them back as near as possible to the "new" end of the cable
outer jacket, as shown in Figure 25.
Figure 25: Recorder cable end with rope and cellophane removed
