DOCUMENT 301900, REVISION D
EPISENSOR USER GUIDE 65
If your kit contains this substitution, then do the following:
1. Divide one of the 1" x 3" pieces into thirds the long way (as shown
in the middle grouping in Figure 38), so you have three 3"-long
pieces.
2. Then divide two of the approx. 3/8"-wide strips into 1"-long
segments (as shown in the bottom grouping in Figure 38). When
finished, you should have 6 pieces approx. 3/8" x 1" and 1 piece
approx. 1/4" x 3".

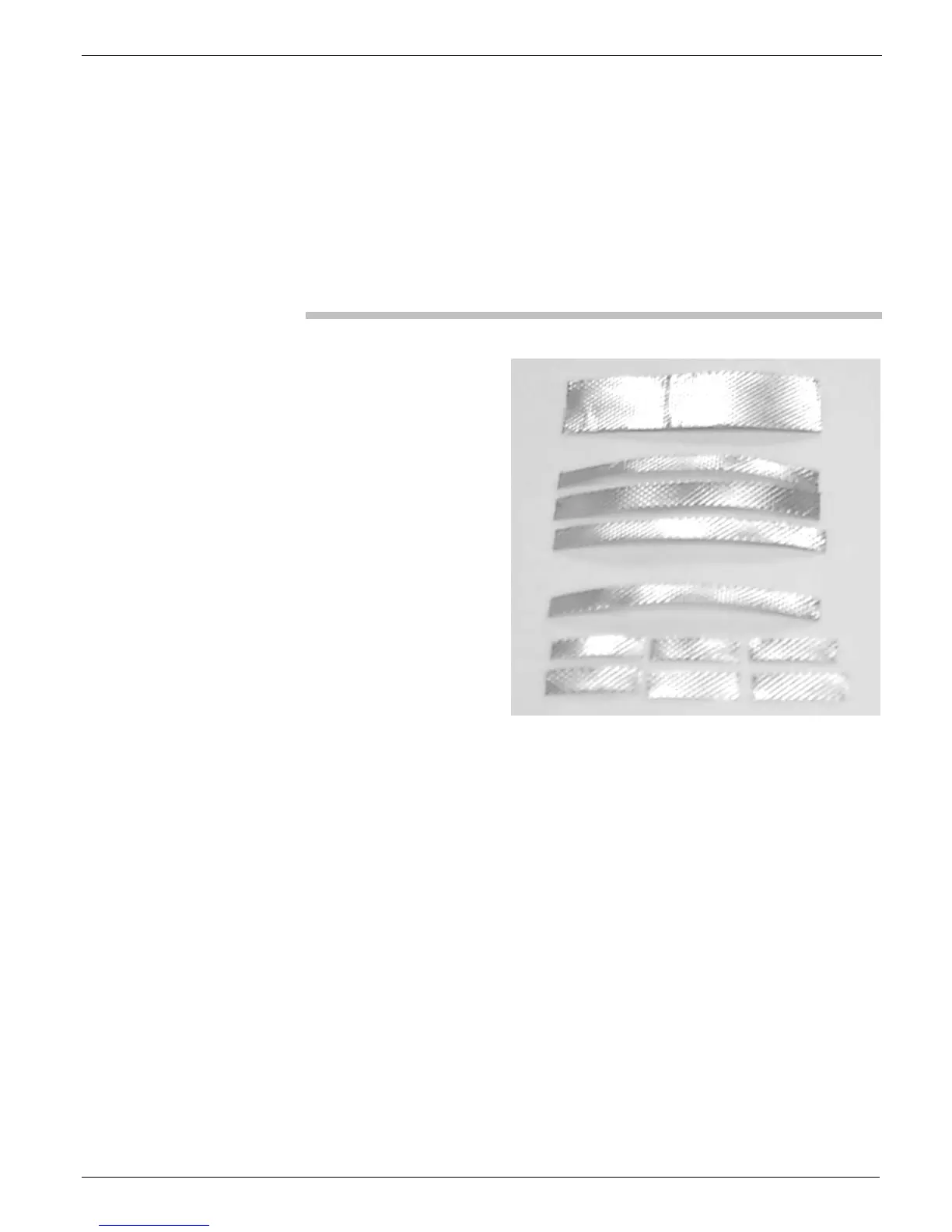

Figure 38: Preparing 3/8"-wide foil tape from 1" foil tape
To assemble the EpiSensor-end mating connector:
Gather the parts listed in Table 15 and slide them over the cable’s outer
jacket-a couple of feet up it, so they are out of the way until needed. Make
sure to slide them over the jacket in the same order as listed, top to bottom,
in the table. Refer to Figure 42 if you need help in identifying these
components.
Now return to the Identical Assembly Procedure section and prepare the
cable for final assembly of the EpiSensor end.
