DOCUMENT 301900, REVISION D
64 EPISENSOR USER GUIDE
Initial Assembly of the EpiSensor End
Now that the connector on the recorder end of the cable, you should now
have only those items necessary for assembling the EpiSensor end of the
cable left in the assembly kit. To make sure, select the parts listed in Table
14 and illustrated left-to-right in Figure 37. To install EpiSensor mating
connector P/N 850407 on the EpiSensor end of the 840356 cable, you will
require:
Table 14: Parts for EpiSensor-end mating connector assembly
Part Name KMI P/N Commercial P/N Description
Right-angle mating
connector
851370 851-08EC14-19 1 connector
Foil tape 880699 1183 (3/8" wide) 6 pieces, 3/8" x 1"
Foil tape 880699 1183 (3/8" wide) 1 piece, 3/8" x 3"
Foil tape 880700 1183 (1" wide) 1 piece, 1" x 3"
Shrink tubing 850839 FIT 221-1/4" 1 piece cut 1/4" long
Shrink-n-Shield tubing 851366 SST-20 1 piece, 3/4" x 3"
Thermofit tubing 851186 DWP-125 3/4" black 1 piece, 3/4" long
#22 black wire 840600 UL1429-22-1934-0 3 pieces, 3" long

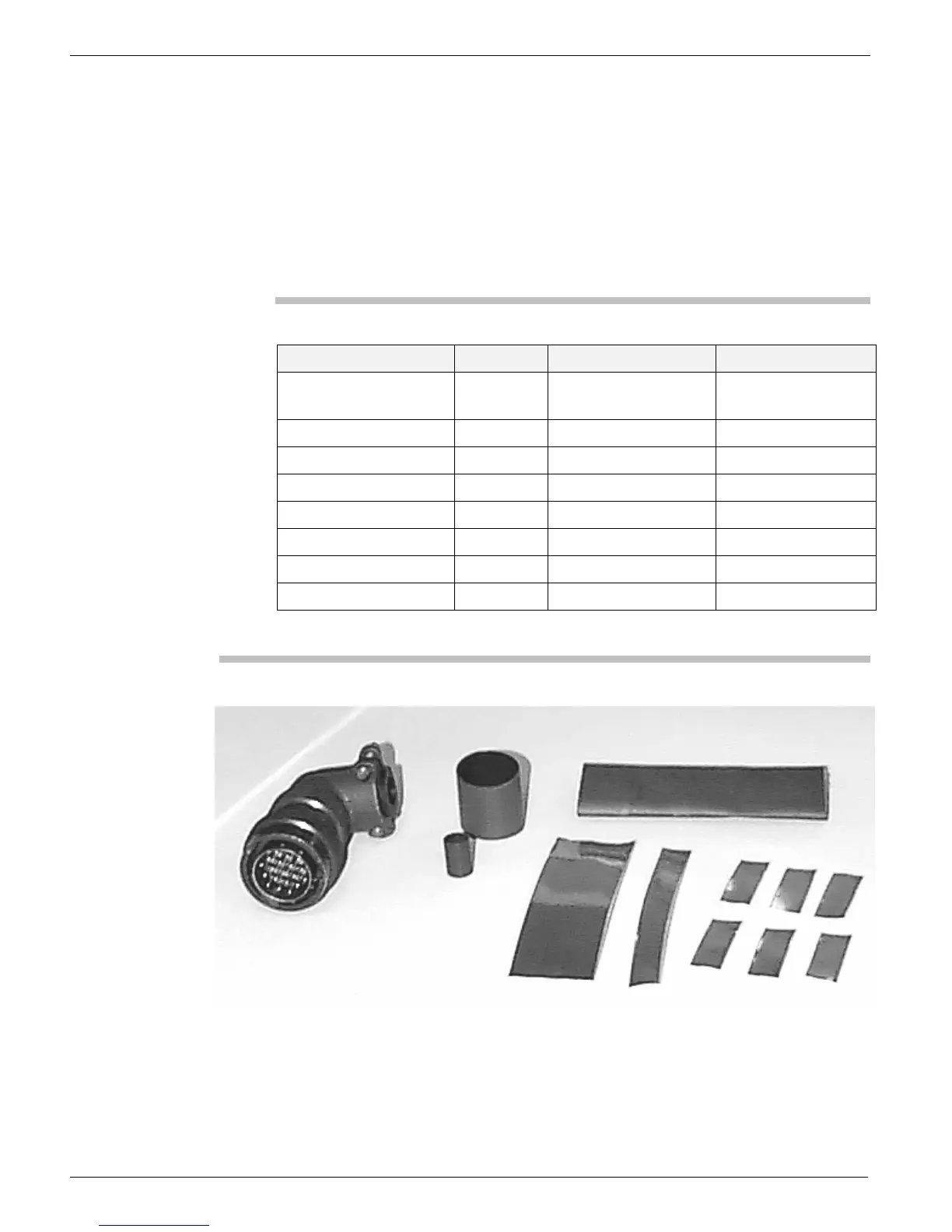

Figure 37: Parts for EpiSensor-end mating connector assembly
Note: In place of the 3/8" foil tape you may have received two pieces of
1"-wide foil.
