DOCUMENT 301900, REVISION D
54 EPISENSOR USER GUIDE

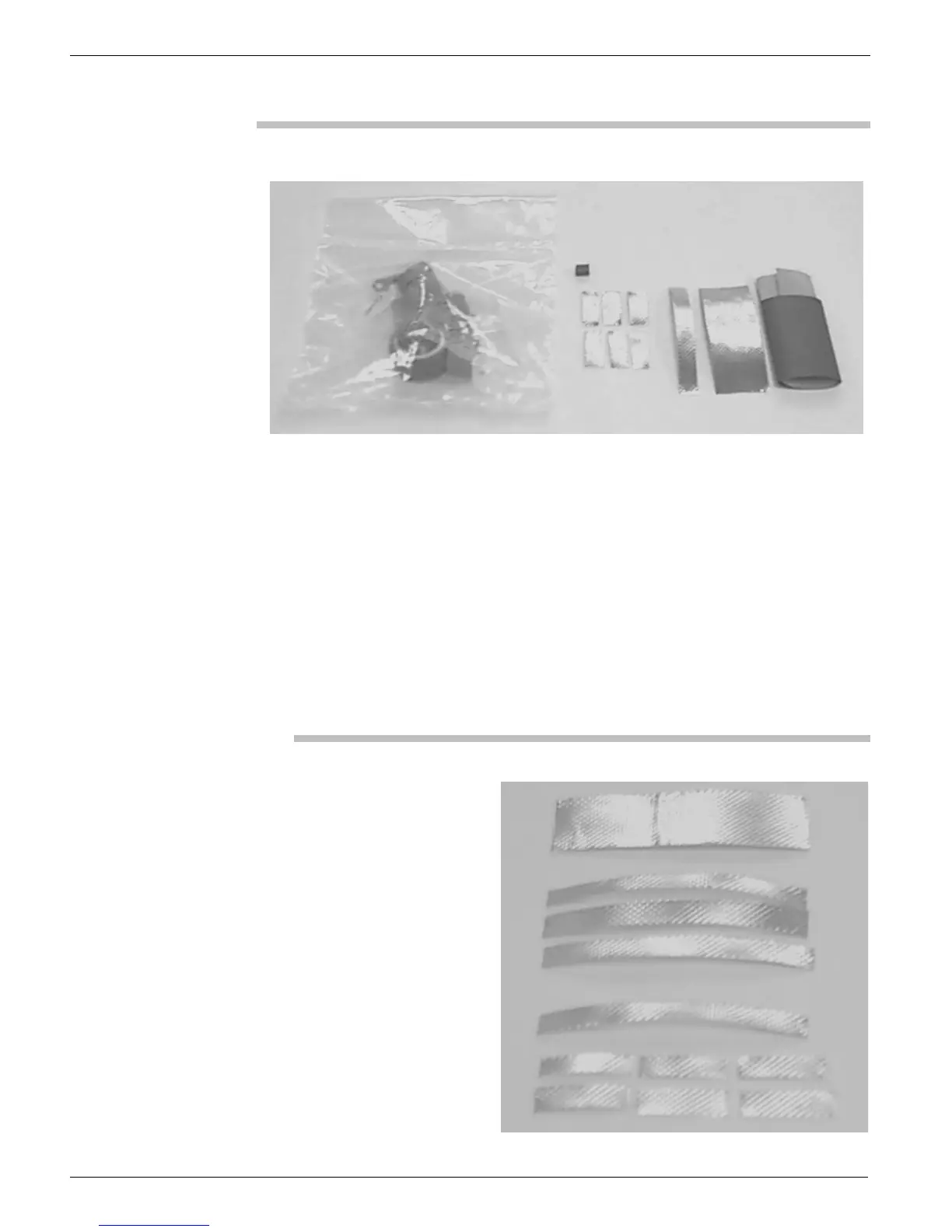

Figure 22: Parts for recorder-end mating connector assembly
Note: In place of the 3/8" foil, you may have received two 1"-wide foil
tapes. If your kit contains this substitution, then make tape that is
approximately 3/8" wide as follows:
1. Divide one of the 1" x 3" pieces into thirds the long way (as shown
in the middle grouping in Figure 23), so you have three 3"-long
pieces.
2. Divide two of the approx. 3/8"-wide strips into 1"-long segments
(as shown in the bottom grouping in Figure 23). When finished,
you should have 6 pieces approx. 3/8" x 1" and 1 piece approx.
1/4" x 3".
Figure 23: Preparing 3/8"-wide foil tape from 1" foil tape
