In our experience, most noise problems with any installation are normally a
result of power grounding or cable shielding!
Custom Cable Assembly
This section provides instructions for assembling an EpiSensor-to-Altus
recorder cable based on a Belden cable (P/N 840356).
The instructions assume the cable has already been pulled and routed
through appropriate conduit. If possible, Kinemetrics recommends that
cables be routed in grounded metal conduit. Alternatively, plenum-rated
cables can be used.

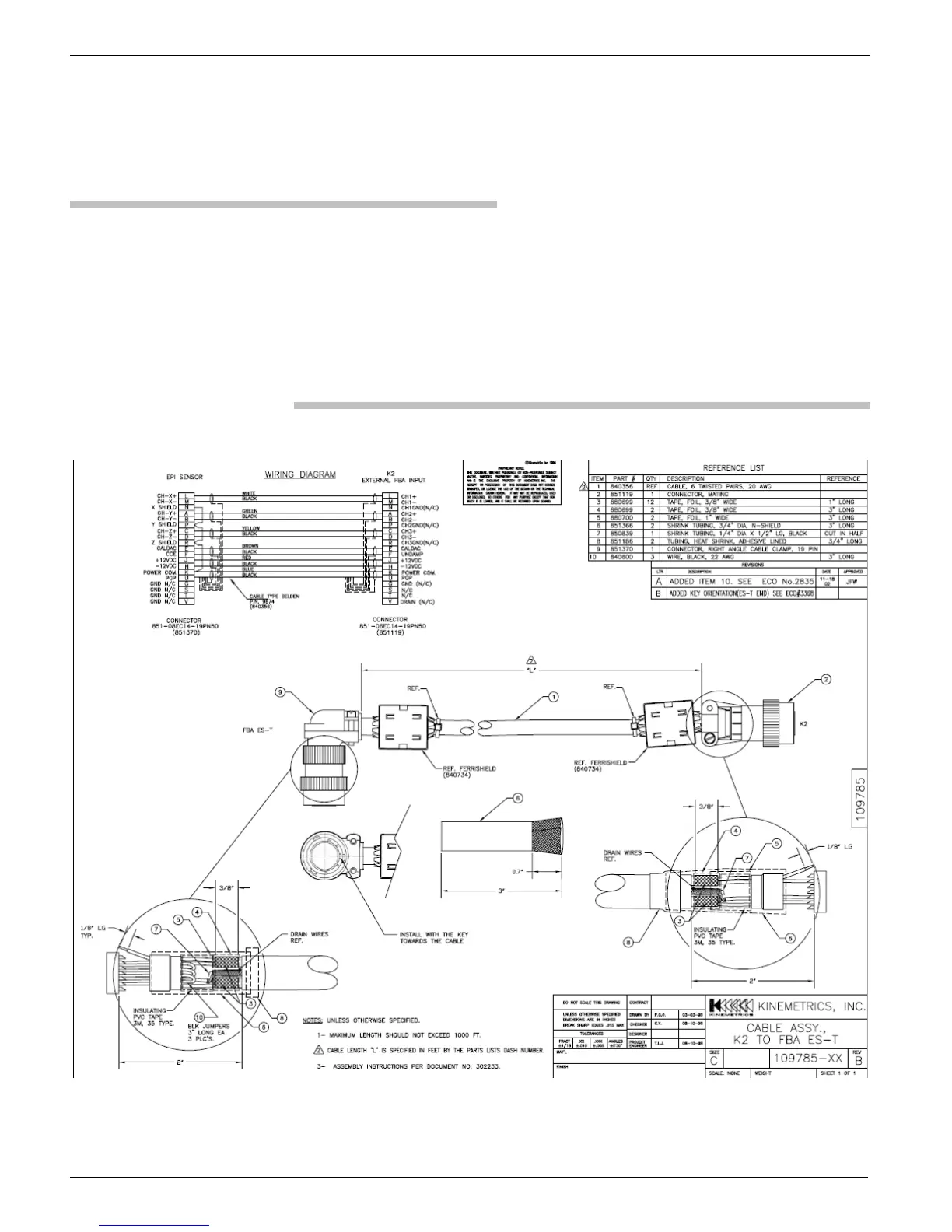

Figure 21: EpiSensor to Altus recorder cable
