DOCUMENT 301900, REVISION D
58 EPISENSOR USER GUIDE

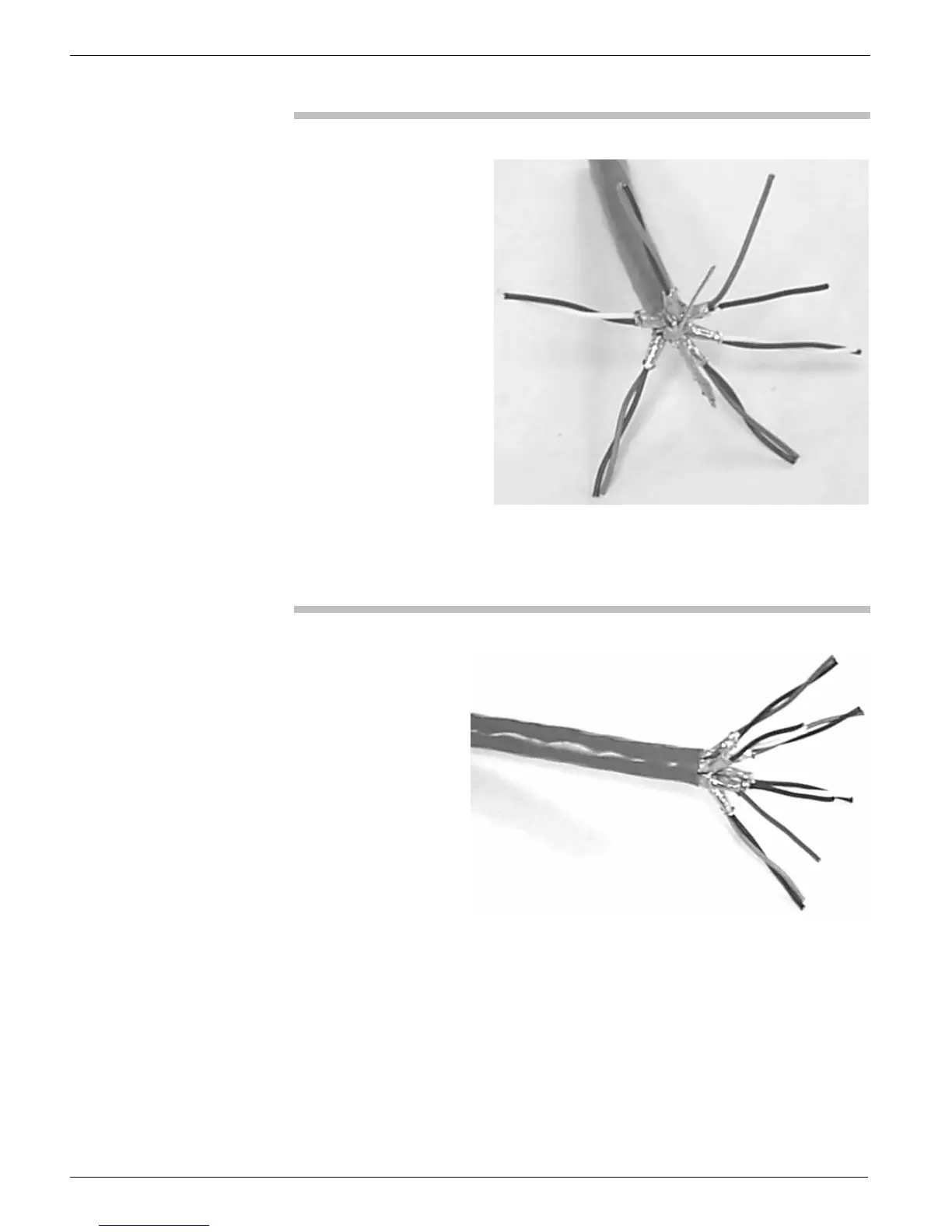

Figure 27: Drain wires twisted together
9. Wrap and solder the single drain wire to the stripped area of the
black wire, then trim off all excess drain wires, as shown in
Figure 28.
Figure 28: Drain wire-to-black wire connection
10. Apply 1/4"-diameter by 1/4"-long shrink tubing over the soldered
area of the drain wires and black wire, as shown in Figure 29.
The cable is now ready for 3/8" x 3" foil-tape wrapping:
1. Tightly wrap the foil tape around the twisted-together drain wires
in the center, as shown in Figure 29.
2. While gathering the twisted-wire pairs toward the center of the
cable, bring the tape tightly over the outside of all of them. See
Figure 31, Figure 32 and Figure 33.
