Gen3 Ultra lightweight robot User Guide 40

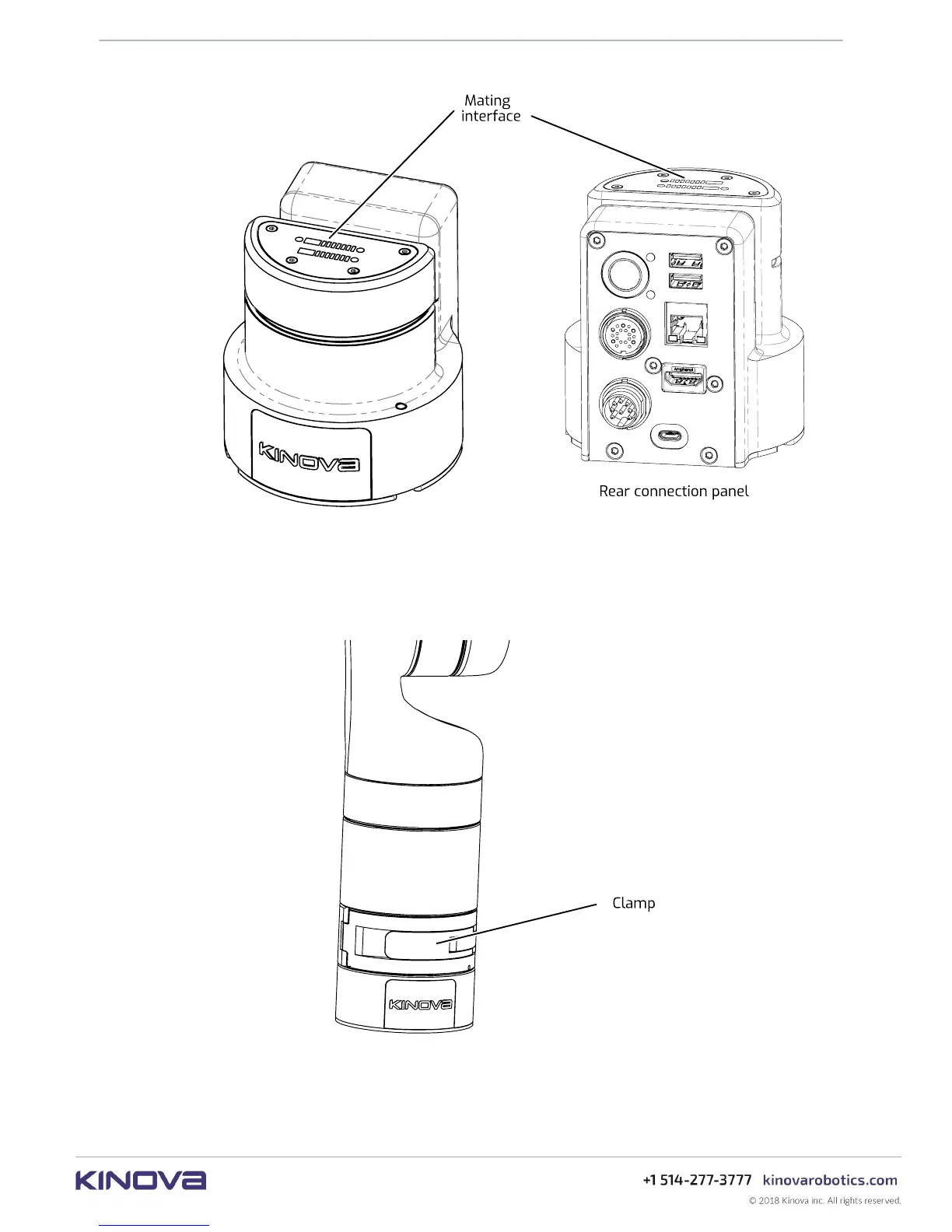

Figure 12: Controller quick connect
The base shell slides over and onto the controller, establishing an electrical connection with the
arm. The base shell is secured in place on the controller by closing the front clamp.
Figure 13: Base shell installation
To remove the arm from the controller, flip open the clamp and slide off the base shell.
