Machine Operation

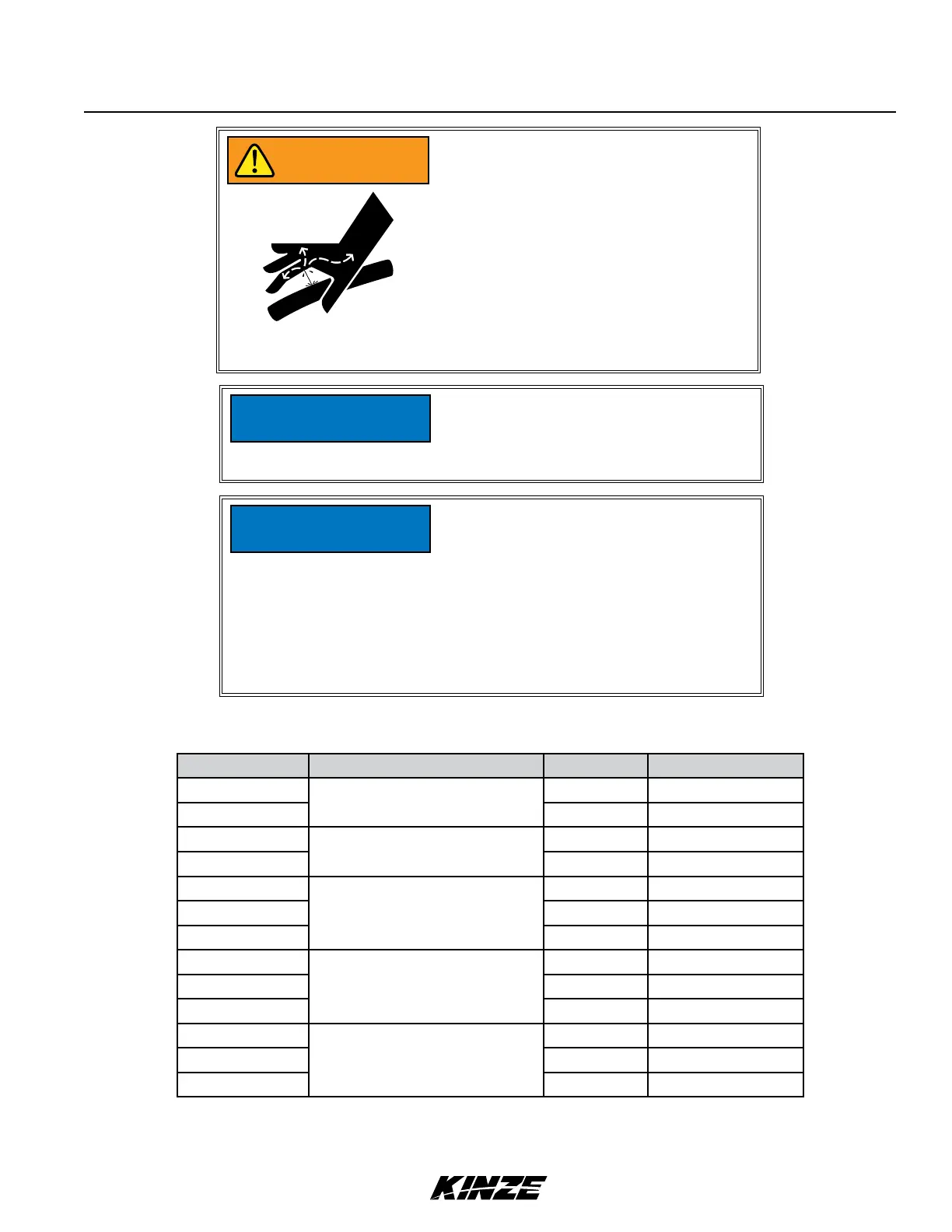

Color and Label Machine Function Hose Size Hose Function
Red AA
Field Lift
½" Pressure/Return
Red BB ½" Pressure/Return
Blue AA
Planter Fold & Row Marker
" Pressure/Return
Blue BB " Pressure/Return
Black RR
Power Pack
or
Hydraulic Drive
/
Return
Black PP ½" Pressure
Orange CD
" **Case Drain
Yellow RR
Bulk Fill System Pressure Fan
Hydraulic Weight Transfer
* True Depth
/" Motor Return
Yellow PP ½" Pressure
Orange CD
" **Case Drain
Green RR
Vacuum Meter Fans
/" Return
Green PP ½" Pressure
Orange CD " **Case Drain
3. Connect hydraulic hoses to tractor ports in a sequence familiar and comfortable to the operator. Refer to chart on
the following page.
* If equipped with electric drive, True Depth is connected to Power Pack circuits.
** Case drains are plumbed together so that there is only one case frain hose to be plugged in.
Pressurized hydraulic fluid can penetrate
body tissue and result in death, serious
infection, or other injuries. Fluid injected
under skin must be IMMEDIATELY
removed by a surgeon familiar with this
type of injury. Make sure connections
are tight and hoses and fittings are
not damaged before applying system
pressure. Leaks can be invisible. Keep
away from suspected leaks. Relieve
pressure before searching for leaks or
performing any system maintenance.
WARNING
Wipe hose ends to remove any dirt
before connecting couplers to tractor
ports or contamination may cause
equipment failure.
NOTICE
Always connect hydraulic motor return
hose to tractor motor return port. Do not
connect to tractor SCV unless through
a motor spool or hydraulic motor failure
can occur. If a motor return port is
not available on the tractor, the SCV
controlling the bulk fill system MUST
be in the float position before planter is
moved in planting or field raised position
when bulk fill system is not in use.
NOTICE
To Next Page
